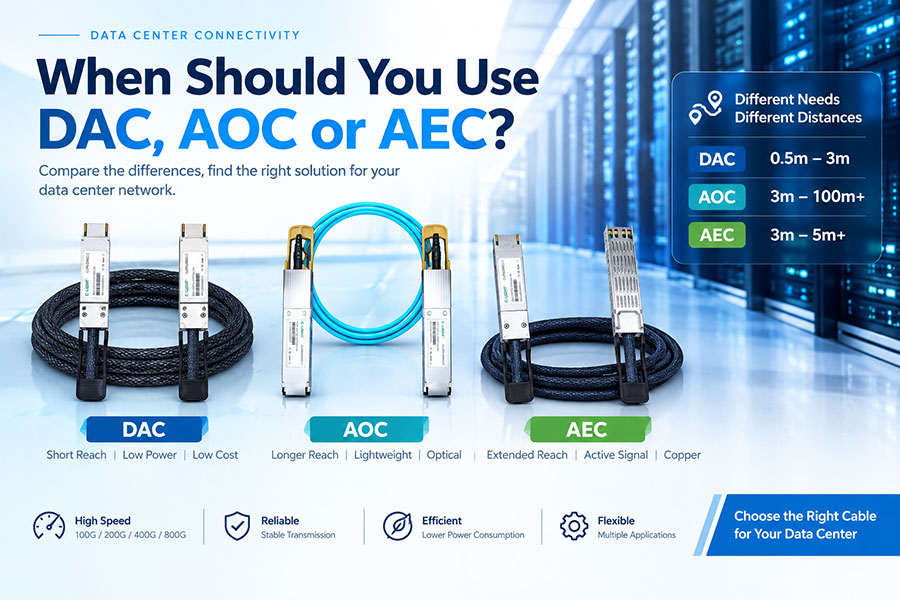

DAC, AOC, and AEC are widely used for high-speed data center interconnects, but each technology is designed for different link distances, power requirements, signal conditions, and deployment environments. DAC is typically preferred for short, low-cost connections, AOC provides optical transmission with an integrated cable assembly, and AEC uses active electrical components to extend copper reach beyond conventional passive DAC. Understanding these differences helps network designers select the right connectivity solution for 100G, 200G, 400G, and 800G data center networks.
1. What Are DAC, AOC, and AEC?
DAC (Direct Attach Copper) is a copper cable assembly with transceiver connectors permanently attached at both ends. Passive DAC transmits electrical signals directly through copper and is mainly used for short-distance connections.
AOC (Active Optical Cable) integrates optical transceivers and fiber into a single cable assembly. It converts electrical signals to optical signals inside the cable ends and is suitable for longer connections than copper DAC.
AEC (Active Electrical Cable) uses copper as the transmission medium but incorporates active electronic components such as retimers or signal-conditioning circuitry to improve signal quality and extend the usable electrical reach.
2. DAC: Best for Short and Simple Connections
DAC is one of the simplest ways to connect two high-speed network ports. Because the cable uses copper and passive DAC does not require optical conversion, it can provide very low power consumption and low latency.
DAC is especially attractive when two devices are physically close together and the required cable length falls within the specified electrical reach.
Typical applications include server-to-switch connections, intra-rack connections, short switch-to-switch links, and GPU-to-switch connections.
3. AOC: Best for Longer Optical Cable Connections
AOC replaces the copper transmission path with optical fiber while keeping the cable assembly integrated.
This gives AOC several advantages over copper for longer connections. Optical fiber is lighter, has lower transmission loss over distance, and is less affected by electromagnetic interference.
AOC is a practical choice when a network needs more reach than DAC can provide but does not require the flexibility of separate optical modules and fiber patch cables.
4. AEC: The Active Copper Alternative
AEC occupies an important position between passive DAC and optical connectivity.
Instead of replacing copper with fiber, AEC uses active electronics to compensate for signal degradation and maintain signal integrity over a longer electrical channel.
This makes AEC particularly interesting for high-speed 400G and 800G applications where passive copper reach can be limited but an optical solution may not be necessary or desirable.
5. DAC vs AOC vs AEC: Basic Comparison
| Feature | DAC | AOC | AEC |
|---|---|---|---|
| Transmission medium | Copper | Optical fiber | Copper |
| Active electronics | No for passive DAC | Yes | Yes |
| Typical reach | Shortest | Longer than DAC | Longer than passive DAC |
| Power consumption | Lowest for passive DAC | Higher | Higher than passive DAC |
| Cable weight | Relatively high | Low | Relatively high |
| Latency | Very low | Low | Low |
| Installation | Simple | Simple | Simple |
| EMI sensitivity | Higher than fiber | Very low | Higher than fiber |
| Best use case | Very short links | Longer fiber links | Extended copper links |
6. When Should You Use DAC?
DAC should be considered first when the connection is short and the main priorities are low cost, low power consumption, low latency, and simple deployment.
DAC is particularly suitable when the network devices are installed within the same rack or very close to each other.
Server-to-ToR switch connections
Short switch-to-switch links
GPU-to-switch connections
Intra-rack connections
Short AI cluster connections
Short HPC interconnects
For passive DAC, there is no need for optical conversion or active signal processing in the cable, making it an efficient solution for short links.
7. When Should You Use AOC?
AOC should be considered when the required link distance exceeds the practical range of passive DAC or when reducing copper cable weight is important.
Because AOC uses optical fiber, it can support longer distances while maintaining a relatively lightweight cable assembly.
AOC is often appropriate for:
Rack-to-rack connections
Longer server-to-switch links
High-density data center cabling
AI and HPC networks
Connections requiring lightweight cabling
Applications where integrated optical cables are preferred
8. When Should You Use AEC?
AEC is useful when copper connectivity is preferred but passive DAC does not provide enough electrical reach.
The active electronics inside an AEC can compensate for signal degradation and help maintain the required signal quality over a longer copper connection.
AEC can be considered for:
Extended copper connections
400G and 800G data center links
AI GPU clusters
High-density switch connections
Applications requiring copper-based connectivity
Links where passive DAC reach is insufficient
9. DAC vs AEC: What Is the Difference?
The main difference between DAC and AEC is the presence of active electronics.
A passive DAC relies on the electrical characteristics of the copper cable and connectors. As the cable becomes longer or the signaling rate increases, electrical loss and signal degradation become more difficult to manage.
AEC adds active signal-conditioning components to improve the electrical link. This allows AEC to support longer copper connections than comparable passive DAC designs.
However, AEC normally consumes more power than passive DAC and has a more complex internal structure.
10. DAC vs AOC: What Is the Difference?
DAC uses copper while AOC uses optical fiber.
DAC generally has advantages in cost, power consumption, and very short-distance latency. AOC provides longer reach, lower cable weight, and better immunity to electromagnetic interference.
The decision is therefore often straightforward: use DAC when the connection is short enough, and consider AOC when the distance or physical cabling environment makes copper less practical.
11. AOC vs AEC: What Is the Difference?
AOC and AEC both extend beyond the practical limitations of passive DAC, but they use different transmission media.
AOC transmits data through optical fiber and therefore provides the advantages of optical transmission, including low weight and strong immunity to electromagnetic interference.
AEC maintains a copper transmission path and uses active electronics to improve signal integrity. It can therefore provide an alternative to AOC where copper cabling is preferred.
12. DAC, AOC, and AEC for 400G
400G networks provide a good example of how the three technologies complement each other.
400G DAC is suitable for short server-to-switch, GPU-to-switch, and intra-rack connections.
400G AOC is appropriate when optical transmission is needed for longer short-reach links.
400G AEC can be used when a longer copper connection is required while maintaining active signal conditioning.
The choice should be based on actual distance, switch and server interfaces, cable density, power budget, and signal integrity requirements.
13. DAC, AOC, and AEC for 800G
At 800G, electrical channel performance becomes increasingly important because higher-speed signaling places tighter requirements on insertion loss, return loss, crosstalk, and jitter.
800G DAC is well suited to short connections where the electrical channel remains within the specified limits.
800G AEC can extend copper connectivity by using active signal conditioning, while 800G AOC provides an optical alternative for longer short-reach connections.
For AI data centers with large numbers of 800G ports, choosing among DAC, AOC, and AEC can have a significant effect on cable density, power consumption, thermal management, and network scalability.
14. DAC, AOC, and AEC for AI Data Centers
AI data centers create extremely high bandwidth requirements between GPUs, servers, and network switches. The physical distance between these devices is therefore an important factor when selecting interconnect technology.
DAC is highly suitable for short connections inside high-density racks.
AEC can extend copper connectivity where passive DAC is not sufficient while avoiding a complete transition to optical fiber.
AOC can provide lightweight optical connectivity when longer reach or better cable-management characteristics are required.
15. Which Is Best for GPU-to-Switch Connections?
For GPU-to-switch connections within the same rack, DAC is often an efficient choice when the required distance is short enough.
If the connection exceeds the specified passive DAC reach, AEC can provide an extended copper option.
When the physical layout requires optical transmission, AOC can provide a lightweight integrated solution.
The correct choice depends on the actual rack architecture rather than the GPU bandwidth alone.
16. Which Is Best for Switch-to-Switch Connections?
Switch-to-switch connections can use DAC, AOC, or AEC depending on the distance and network architecture.
Short connections between adjacent devices can use DAC. Longer copper connections can consider AEC, while optical AOC is generally more suitable when the required distance or cable-management requirements exceed the practical capabilities of copper.
17. Power Consumption Comparison
Power consumption is an important consideration in high-density AI and data center environments.
Passive DAC generally provides the lowest power consumption because it does not require active signal processing.
AEC requires active electronics, so its power consumption is higher than passive DAC.
AOC also requires active optical components for electrical-to-optical and optical-to-electrical conversion, resulting in power consumption that is typically higher than passive DAC.
18. Cable Density and Management
Cable management becomes increasingly challenging as data center port speeds and connection counts increase.
Copper DAC and AEC cables are generally thicker and heavier than fiber-based AOC assemblies. Large deployments therefore need to account for cable routing, bend radius, rack space, airflow, and connector accessibility.
AOC can reduce cable weight and improve routing characteristics, particularly when many high-speed links must be installed in a dense rack environment.
19. Cost Considerations
Passive DAC is generally the most cost-effective option for short links because of its relatively simple construction.
AEC costs more than passive DAC because active electronics are integrated into the cable assembly.
AOC also contains active optical components and fiber, which generally results in a higher cost than passive copper connectivity.
However, initial cable cost should not be the only consideration. Power consumption, rack density, maintenance, installation, and future network expansion can also affect the total cost of ownership.
20. How to Choose DAC, AOC, or AEC?
A practical selection process can start with the following questions:
How long is the connection? Use passive DAC for short links, and consider AEC or AOC when more reach is required.
Is low power a priority? Passive DAC normally provides the lowest power consumption.
Is copper preferred? If yes, compare DAC and AEC based on the required electrical reach.
Is cable weight important? AOC can provide advantages because it uses optical fiber.
Does the link require active signal conditioning? If passive DAC cannot meet the electrical channel requirements, AEC may be appropriate.
Is optical transmission required? Choose AOC when an integrated optical cable is preferred.
What is the network speed? Higher-speed 400G and 800G links require more careful consideration of signal integrity and cable specifications.
21. C-LIGHT DAC, AOC, and AEC Solutions
C-LIGHT provides DAC, AOC, and AEC solutions for high-speed data center connectivity, covering applications from conventional data center networks to AI and HPC infrastructure.
C-LIGHT 400G and 800G DAC solutions are designed for short-reach connections between servers, switches, GPUs, and other high-speed network devices.
C-LIGHT AOC solutions provide fiber-based connectivity for applications requiring longer reach and lightweight cabling.
C-LIGHT AEC solutions provide active copper connectivity for applications where extended electrical reach and high-speed signal integrity are required.
22. DAC vs AOC vs AEC: Final Comparison
DAC, AOC, and AEC each solve a different connectivity problem.
Choose DAC when the link is short and low power, low cost, and low latency are the main priorities.
Choose AOC when optical fiber is preferred for longer reach, lower cable weight, or better immunity to electromagnetic interference.
Choose AEC when copper connectivity is preferred but passive DAC cannot provide sufficient electrical reach or signal integrity.
For modern 400G and 800G AI data centers, these technologies can be used together. DAC can handle short intra-rack links, AEC can extend copper connectivity, and AOC can provide optical connectivity where longer or lighter links are required.
>
>
>
>
>
>
>
>
