OTN-WDM Subsystem

With the rapid development of the Internet, the bandwidth pressure caused by the spurt growth of data traffic makes it imperative to introduce a 400G system into the transmission network. Therefore, C-Light Network has introduced a new generation of high-capacity, long-distance 400G wavelength division transmission Equipment CL-OTN-3900 series products. The product uses advanced transmission technology and high integration technology to support single-channel transmission rate from 100Mbps to 400Gbps, and provides wide bandwidth, large capacity and fully transparent transmission for 800Gbps expansion, enabling smooth upgrade of capacity. It provides a stable platform for multi-service operation and future network upgrade and expansion. It is widely used in operators, broadcasting, IDC, finance, government, cloud network, big data and other industries.

3-year warranty

Long term maintenance

Technical Support

Professional free technical guidance

100% detection

Each module is 100% tested

Spot stock

Always in stock, short delivery time

Technical Support

Tel：+86 158 1857 3751

Online Consultation

Product Details

Support & Service

Quality Inspection

Quality Certification

Product Details

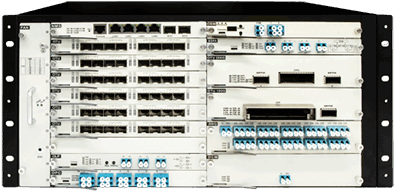

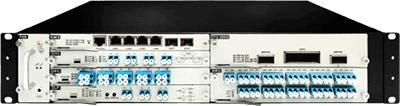

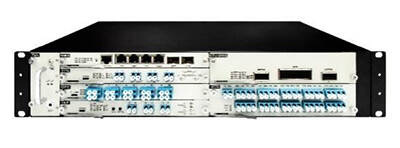

Product Featurer			Product Diagram
l Huge capacity transmission Supports 96×400G ultra-large capacity transmissions, that is single fiber transmission capacity up to 38.4Tb/s, and support 80/96×10G/100G/200G/400G hybrid transmission, supporting smooth upgrade from 40 waves to 80 waves, 48 waves to 96 waves. It ensures low investment and smooth expansion in the early stage of network construction to meet the growing bandwidth demand in the future. l Excellent 400G transmission performance 400G system adopts 16QAM coding technology for coherent detection, supports oFEC, B2B OSNR tolerance index is excellent, adopts industry advanced DSP processing technology, dispersion tolerance is 26000 ps/nm, and supports 400 km or more of non-electric relay transmission. Save investment and greatly facilitate operation and maintenance. l Flexible and comprehensive service access capability Supports 100M-100G any service access: CPRI1~10, eCPRI, FE/GE/10GE/25GE/40GE/100GE, FC 1G~32G, STM-N, OTU1/2/3/4, etc. Transparent transmission reduces the cross-transmission delay of the circuit. l Telecom Reliable protection Supports multiple network protection schemes such as optical layer 1+1 channel protection and optical line side 1+1 protection, providing multiple protection for important equipment units and optical fiber lines. Support AC 220V, DC -48V power supply, 1+1 power protection. l Excellent structure, convenient and easy to maintain It adopts 1RU, 2RU, 3RU 5RU standard 19-inch rack design, completely configuration-free installation, device plug-and-play, and unified network management platform, providing complete network and equipment performance monitoring capabilities.			CL-OTN-3900-04-1RU CL-OTN-3900-08 2RU CL-OTN-3900-12 3RU CL-OTN-3900-20 5RU




Product Specification
Function	Note
Product model	CL-OTN-3900-04	CL-OTN-3900-08	CL-OTN-3900-12	CL-OTN-3900-20
Equipment Size (W × D× H, mm)	1RU: (back-power supply) 442(W)×350(D)×44(H)mm	2RU: (back-power supply) 442(W)×350(D)×88(H)mm	3RU: (back-power supply) 442(W)×350(D)×132(H)mm	5RU: (back-power supply) 442(W)×350(D)×220(H)mm
Service slot	4 slots	8 slots	12 slots	20 slots
Power consumption	225W (Max)	350W (Max)	550W (Max)	750W (Max)
Max channel number	CWDM: 18 wavelength, DWDM: 96 wavelength(50GHz)
Single channel max rate	400Gbit/s
Line side rate	1.25Gbit/s, 2.5Gbit/s, 10Gbit/s,25Gbit/s, 40Gbit/s, 100Gbit/s,200Gbit/s,400Gbit/s
Support service	● STM-1/4/16/64/256、OC-3/12/48/192/768 ● OTU-1/2/3/4 ● FE/GE/10GE/25GE/40GE/100GE ● FC 1G/2G/4G/8G/16G/32G
Clock features	Support IEEE 1588V2
Network topology	Point to point, chain type, star type, ring type
Network level protection	Optical channel 1+1 protection, optical multiplex 1+1 protection, optical line 1+1 protection
Equipment level protection	Power supply backup
Network management	SNMP, Web, CLI, Telnet
Installation	19"and 23" cabinets, ETSI 600mm cabinets Wireless outdoor base station cabinet, FTTX outdoor cabinet, hanging wall
Working temperature range	-10℃～60℃
Working humidity range	5~95% no condensation
Storage temperature range	-40℃～85℃
Heat dissipation	Fan cooling
Power supply mode	AC: 90 ~ 260V or HDC:127~370V or DC:-72 ~ -36 V

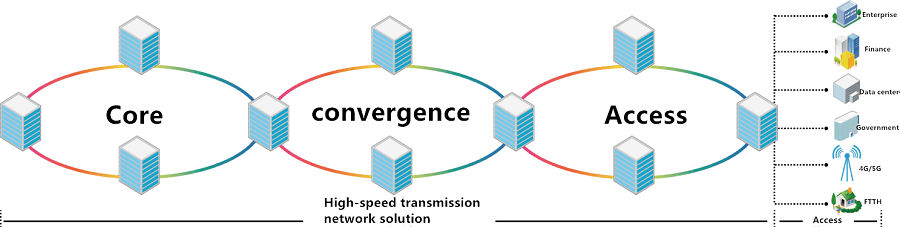

Network Positioning
