| MPO SM Trunk Cable | ||
| CL-SF-TMC-18×8-X-A | SM 144 MPO/Female | APC, 144F with 18 x 8 Fibre breakouts, breakout length xM ， total length xM |
| CL-SF-TMC-12×8-X-A | SM 96 MPO/Female | APC, 96F with 12 x 8 Fibre breakouts, breakout length xM ， total length xM |
| CL-SF-TMC-9×8-X-A | SM 72 MPO/Female | APC, 72F with 9 x 8 Fibre breakouts, breakout length xM ， total length xM |
| Connector Parameters | MaxIL 0.3, RL>60dB | |
| MPO MM Trunk Cable | ||
| CL-MF3-TMC-18×8-X-A | MM 144 om3 MPO/Female | APC, 144F with 18 x 8 Fibre breakouts, breakout length xM ， total length xM |
| CL-MF4-TMC-18×8-X-A | MM 144 om4 MPO/Female | APC, 144F with 18 x 8 Fibre breakouts, breakout length xM ， total length xM |
| CL-MF3-TMC-12×8-X-A | MM 96 om3 MPO/Female | APC, 96F with 12x 8 Fibre breakouts, breakout length xM ， total length xM |
| CL-MF4-TMC-12×8-X-A | MM 96 om4 MPO/Female | APC, 96F with 12 x 8 Fibre breakouts, breakout length xM , total length xM |
| CL-MF3-TMC-9×8-X-A | MM 72 om3 MPO/Female | APC, 72F with 9 x 8 Fibre breakouts, breakout length xM ， total length xM |
| CL-MF4-TMC-9×8-X-A | MM 72 om4 MPO/Female | APC, 72F with 9 x 8 Fibre breakouts, breakout length xM ， total length xM |
| Connector Parameters | Max IL 0.3, RL > 40dB | |
| LC/SC/FC SM Trunk Cable | ||
| CL-SF-TxC-32×32-X-A | SM 32 LC/SC/FC | UPC, 32F with 32 x 32 Fibre breakouts, breakout length xM ， total length xM |
| CL-SF-TxC-16×16-X-A | SM 16 LC/SC/FC | UPC, 16F with 16 x 16 Fibre breakouts, breakout length xM ， total length xM |
| Connector Parameters | MaxIL 0.3, RL>60dB | |
| LC/SC/FC MM Trunk Cable | ||
| CL-MF-TxC-32×32-X-A | OM3 32 LC/SC/FC | UPC, 32F with 32 x 32 Fibre breakouts, breakout length xM ， total length xM |
| CL-MF-TxC-16×16-X-A | OM3 16 LC/SC/FC | UPC, 16F with 16 x 16 Fibre breakouts, breakout length xM ， total length xM |
| CL-MF-TxC-32×32-X-B | OM4 32 LC/SC/FC | UPC, 32F with 32 x 32 Fibre breakouts, breakout length xM ， total length xM |
| CL-MF-TxC-16×16-X-B | OM4 16 LC/SC/FC | UPC, 16F with 16 x 16 Fibre breakouts, breakout length xM ， total length xM |
| Connector Parameters | Max IL 0.3, RL > 40dB | |

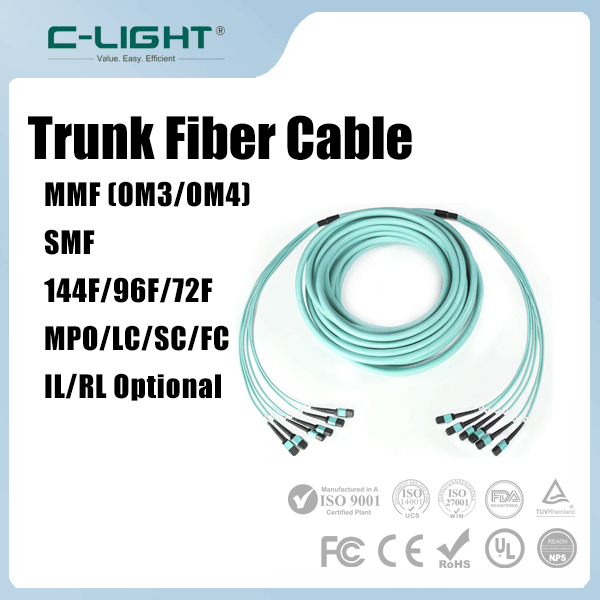

C-LIGHT Trunk Fiber Cable is a high-density fiber cabling solution designed to organize and connect large numbers of optical fibers within data centers, telecommunications facilities, enterprise networks, and backbone infrastructure. By integrating multiple optical fibers into a structured trunk assembly, it simplifies high-count fiber deployment while maintaining an organized and scalable cabling architecture.
The product family includes MPO trunk cables as well as LC, SC, and FC trunk configurations. Both single-mode and multimode fiber options are available, allowing the cable assembly to be selected according to transmission requirements and network architecture.
MPO trunk configurations are available with fiber counts including 72 fibers, 96 fibers, and 144 fibers. The multi-fiber construction is particularly suitable for high-density environments where a large number of individual fiber connections need to be installed within a limited cable-management space.
C-LIGHT Trunk Fiber Cable assemblies are factory-terminated and can be configured with different connector types, fiber modes, breakout structures, cable lengths, and connector polishing specifications to meet different structured cabling requirements.
Multi-fiber trunk assemblies support high-density connections while reducing the amount of individual fiber cabling required during installation.
MPO configurations provide a compact multi-fiber interface for structured cabling systems and high-density optical network environments.
The product range supports both SM fiber and multimode options including OM3 and OM4 configurations.
Trunk assemblies are available with MPO, LC, SC, and FC connector configurations for different network architectures.
Multiple fiber-count configurations provide flexibility for applications ranging from medium-density installations to large-scale backbone cabling.
Pre-terminated construction helps simplify deployment and reduces the amount of field termination work required during installation.
The listed trunk cable configurations specify a maximum insertion loss of 0.3dB.
Connector specifications provide return-loss performance above 60dB for listed single-mode configurations and above 40dB for multimode configurations.
High-count trunk cables provide an organized backbone connection between network racks, patching areas, and equipment distribution points.
MPO trunk assemblies are suitable for structured cabling environments where many optical channels need to be deployed through compact connection points.
Single-mode trunk configurations can be deployed in telecommunications and backbone environments requiring large fiber counts and structured fiber management.
Trunk assemblies can simplify large-scale fiber distribution between network rooms, equipment rooms, and central communication facilities.
High-count fiber assemblies provide an efficient physical cabling foundation for optical links between different data center areas.
Trunk systems can be integrated with patch panels and breakout assemblies to distribute multiple optical connections toward servers and switches.
Large fiber-count assemblies help consolidate backbone cabling and simplify the organization of extensive optical infrastructure.
Factory-terminated trunk assemblies can be incorporated into modular structured fiber cabling architectures for scalable network deployments.
SM MPO/Female APC configurations are available in 72F, 96F, and 144F versions for high-density single-mode fiber deployment.
OM3 and OM4 MPO/Female APC configurations are available with 72F, 96F, and 144F fiber counts.
Single-mode trunk configurations using LC, SC, or FC connectors are available in 16-fiber and 32-fiber assemblies.
OM3 and OM4 multimode configurations support 16F and 32F assemblies with LC, SC, or FC connector options.
72F MPO assemblies use 9 × 8 fiber breakouts and provide a compact solution for medium-density deployments.
96F MPO assemblies use 12 × 8 fiber breakouts for applications requiring greater fiber capacity.
144F MPO assemblies use 18 × 8 fiber breakouts and are designed for high-count fiber distribution environments.
Breakout length and total cable length can be configured according to the requirements of the installation environment.
Multi-fiber trunk construction reduces cabling complexity and helps create a cleaner, more manageable fiber infrastructure.
SM, OM3, and OM4 options allow the same product family to address different transmission and deployment requirements.
MPO, LC, SC, and FC interfaces provide compatibility with different patching and distribution architectures.
72F, 96F, and 144F configurations provide scalable options for different backbone and data center requirements.
Pre-terminated cable assemblies help reduce installation complexity and provide a more consistent connection solution than extensive field termination.
C-LIGHT specifies maximum insertion loss of 0.3dB together with return-loss requirements for the different fiber configurations.

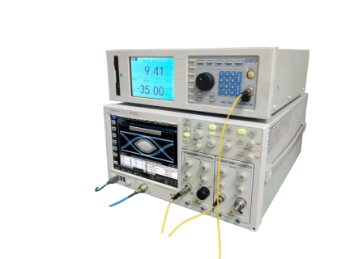

C-LIGHT states that products undergo initial testing, final testing, and factory inspection as part of its quality-control process.
C-LIGHT provides personalized product customization based on connector type, fiber mode, fiber count, breakout arrangement, and cable length.
A trunk fiber cable is a multi-fiber optical cable assembly designed to consolidate multiple fiber connections into a structured cable for backbone and high-density cabling applications.
C-LIGHT provides single-mode fiber as well as multimode configurations including OM3 and OM4.
The product family includes MPO, LC, SC, and FC connector configurations.
C-LIGHT lists 72F, 96F, and 144F MPO trunk configurations, corresponding to 9 × 8, 12 × 8, and 18 × 8 fiber breakout structures.
Yes. C-LIGHT provides both SM MPO trunk cables and multimode OM3/OM4 MPO trunk cables.
The listed connector specifications specify a maximum insertion loss of 0.3dB for the trunk cable configurations.
Yes. The product specifications provide breakout length and total cable length fields, allowing the assembly to be configured according to project requirements.
Typical applications include data center backbone cabling, telecommunications networks, enterprise networks, data center interconnects, and structured fiber distribution systems.
C-LIGHT Trunk Fiber Cable provides a structured approach to high-density optical cabling by combining multiple fibers into factory-terminated trunk assemblies. With single-mode, OM3, and OM4 fiber options, together with MPO, LC, SC, and FC connector configurations, the product family can support different backbone and structured cabling architectures. The 72F, 96F, and 144F MPO configurations are particularly suited to high-density data center and network infrastructure where fiber capacity, organization, and scalability are key considerations.
