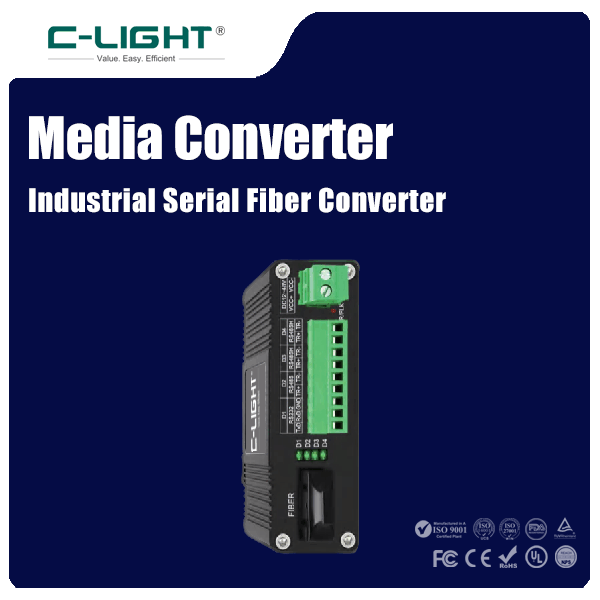

Industrial Serial Fiber Converter for Reliable RS-232/485/422 to Fiber Communication
Industrial Serial Fiber Converter | ||
| Model | CLIRS93-SC Series | CLIRS93-SFP Series |
Product Image |
|
|
| SPEC | 1xRS232/RS485/RS422,1xSC/ST/FC; 12~48VDC, Redundant Power (6-pin Terminal Block); 3W Max; 95x70x30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 1xRS232/RS485/RS422;1xSFP; 12~48VDC, Redundant Power (6-pin Terminal Block); 3W Max; 95x70x30 mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
The Industrial Serial Fiber Converter is designed to convert RS-232, RS-485, and RS-422 serial communication signals to optical fiber for reliable long-distance industrial data transmission. The converter supports baud rates from 300bps to 115.2kbps with automatic baud-rate adaptation, optical isolation, zero-latency transfer, and transmission distances up to 20km. Available with either SC/ST/FC fiber interfaces or an SFP slot, the compact aluminum converter supports redundant 12~48VDC power, DIN rail installation, and -40°C to 75°C operation for factory automation, SCADA, power monitoring, traffic control, and other industrial communication systems. :contentReference[oaicite:0]{index=0}
Key Features
RS-232/485/422 Serial Conversion
The converter supports multiple serial standards, allowing RS-232, RS-485, or RS-422 equipment to communicate through optical fiber networks.
Automatic Baud-Rate Adaptation
The serial interface supports baud rates from 300bps to 115.2kbps with automatic adaptation for flexible integration with different serial devices.
Up to 20km Fiber Transmission
Fiber connectivity extends serial communication over distances of up to 20km, supporting remote industrial equipment and distributed network architectures.
Optical Isolation
The optical link provides electrical isolation between serial equipment and the fiber network, helping protect communication interfaces in electrically noisy environments.
Zero-Latency Transfer
Zero-latency data transfer supports timely communication for industrial monitoring, control, and serial data transmission applications.
Redundant Power Input
The converter uses a 12~48VDC redundant power design through a 6-pin terminal block for improved power continuity in industrial installations.
Product Specifications
Serial Interface
1xRS-232/RS-485/RS-422
Fiber Interface
1xSC/ST/FC or 1xSFP depending on model series
Baud Rate
300bps to 115.2kbps with automatic adaptation
Transmission Distance
Up to 20km depending on the selected optical configuration
Power Input
12~48VDC, redundant power through 6-pin terminal block
Maximum Power Consumption
3W
Dimensions
95mm x 70mm x 30mm
Weight
Approximately 0.25kg
Housing
Aluminum case
Protection
IP30/IP40 depending on configuration and installation requirements
Operating Temperature
-40°C to 75°C
MTBF
More than 200,000 hours
Model and Fiber Interface Options
CLIRS93-SC Series
The CLIRS93-SC Series provides 1xRS-232/RS-485/RS-422 serial connectivity together with 1xSC/ST/FC optical interface for direct fiber network integration.
CLIRS93-SFP Series
The CLIRS93-SFP Series combines the same serial interface with a 1xSFP slot, providing flexibility to select a compatible optical transceiver for the fiber link.
Multimode and Single-Mode Fiber Options
The optical interface can be matched with suitable fiber and transceiver configurations according to the required transmission distance and network architecture.
SC/ST/FC Connector Selection
The SC fiber series supports SC, ST, or FC connector configurations for compatibility with different industrial fiber cabling environments.
Serial-to-Fiber Communication Architecture
Serial Device Connection
The RS-232, RS-485, or RS-422 interface connects directly to industrial controllers, meters, sensors, monitoring equipment, and other serial devices.
Optical Network Extension
The serial signal is transported through optical fiber, extending communication between local and remote industrial equipment.
Long-Distance Communication
Fiber transmission supports links up to 20km, allowing serial devices at different locations to communicate across extended industrial networks.
EMI-Resistant Optical Link
The fiber portion of the connection is immune to electromagnetic interference, making optical transmission suitable for electrically noisy industrial environments.
Protocol Application Support
The converter can be used with serial communication systems such as Modbus-based industrial equipment where RS-232, RS-485, or RS-422 physical interfaces are required.
Bidirectional Data Conversion
The converter provides bidirectional conversion between serial communication signals and optical fiber signals for two-way device communication.
Industrial Reliability Design
Rugged Aluminum Housing
The aluminum enclosure provides a durable and compact platform for serial-to-fiber conversion in demanding industrial environments.
Wide Temperature Operation
The -40°C to 75°C operating range supports deployment in factories, utility facilities, transportation infrastructure, and other harsh environments.
Vibration and Shock Resistance
The industrial design supports stable communication in applications subject to mechanical vibration and shock.
DIN Rail Installation
The compact industrial enclosure supports DIN rail mounting for convenient installation in control cabinets and distributed equipment locations.
Redundant Power
Redundant 12~48VDC power inputs provide an additional level of power continuity for critical industrial communication systems.
Industrial EMC Design
The converter is designed for industrial electromagnetic compatibility requirements and supports CE and FCC certification on the product series.
Applications
Factory Automation
Provides fiber communication for PLCs, industrial controllers, meters, sensors, and other serial automation equipment.
SCADA Systems
Extends serial communication between field devices and supervisory control systems across industrial fiber networks.
Power Monitoring
Supports serial communication for power meters, monitoring equipment, and distributed electrical infrastructure over fiber.
Traffic Control
Provides long-distance optical communication between traffic monitoring or control equipment and central management systems.
Industrial Control Networks
RS-485, RS-422, and RS-232 interfaces support connectivity with industrial control and instrumentation equipment.
Remote Serial Equipment
Fiber extension allows serial devices installed in remote locations to communicate reliably with centralized industrial systems.
Why Choose the Industrial Serial Fiber Converter
The Industrial Serial Fiber Converter combines RS-232, RS-485, and RS-422 support with automatic baud-rate adaptation, optical isolation, zero-latency transfer, and fiber transmission up to 20km. With SC/ST/FC or SFP interface options, redundant 12~48VDC power, compact 95mm x 70mm x 30mm aluminum construction, DIN rail installation, and -40°C to 75°C operation, it provides a flexible platform for extending serial communication across demanding industrial environments. :contentReference[oaicite:1]{index=1}
FAQ
Q1. What serial interfaces does the Industrial Serial Fiber Converter support?
The converter supports RS-232, RS-485, and RS-422 serial communication interfaces.
Q2. What baud rates are supported?
The serial interface supports baud rates from 300bps to 115.2kbps with automatic baud-rate adaptation.
Q3. What fiber interfaces are available?
The CLIRS93-SC Series provides SC/ST/FC fiber interfaces, while the CLIRS93-SFP Series provides an SFP optical interface.
Q4. What is the maximum fiber transmission distance?
The Industrial Serial Fiber Converter supports fiber transmission distances of up to 20km depending on the optical configuration.
Q5. Does the converter support redundant power?
Yes. The product uses 12~48VDC redundant power inputs through a 6-pin terminal block.
Industrial Serial Fiber Converter
Designed for industrial serial communication over fiber, the Industrial Serial Fiber Converter supports RS-232/485/422 interfaces, 300bps to 115.2kbps baud rates, fiber transmission up to 20km, optical isolation, zero-latency transfer, redundant power, and -40°C to 75°C operation.
