Product Feature | Product Diagram | |
lThe device adopts simple box design, is only 1U high, and can be stacked, which can effectively save room space and realize flexible migration. l1RU supports a maximum transmission capacity of 1.6T (16*100G), which can be effectively expanded to a fiber of 3.2T through device stacking. lThe device supports mixed transmission of multiple services, including service types such as 100GE. Service interfaces and quantities can be flexibly customized by customers. lDevices do not have complex optical and electrical cross-connections, services are transmitted transparently, and service ports are physically isolated, improving network security. lThe device network is simple, does not change the original network topology, no complex optical layer design,only need to choose the device model according to the decay or kilometers. lThe device supports 1+1 line protection on the optical cable side and automatically selects transmission routes to improve network reliability. lAccording to the site one-box delivery, power-on free, plug and play; No jumper, |
CL-OTN-3100 1RU: 442 (W)×350 (D) ×44 (H)mm | |
lAir forward and air out, AC power supply, reasonable height, width and depth design, suitable for server rack requirements in the data center room, and can be deployed together with servers. lDouble configuration server power supply, can be hot plug, adopting the Load Share 1 + 1 hot backup method. | ||
| Product Specification | ||
| Function | Description | remark |
Maximum transmission capacity of a single machine | 1RU 1.6Tbps（16*100G） | |
The biggest single fiber transmission capacity | The 2 x 1RU device stack is expanded to 3.2Tbps | |
Maximum transmission rate of a single port | 100Gbit/s | |
| Service port type | 100G QSFP28 optical port | Customized according to customer needs |
Maximum number of ports on a single machine | 6 QSFP28 optical ports | Customized according to customer needs |
| Supported service types | 100GE | It depends on the type of the service port |
| Network level protection | Supports 1+1 protection on the line side | |
Device level protection | ●1+1 power input backup ●4 Fan hot backup | |
| Installation mode | 19” server cabinet | |
| Power supply | AC:90 to 260V Two hot-swappable server power modules | |
| Network management | ●Visualizes the Web interface; ●CL-OTN-3100 Network management system. | |
| Heat dissipation | Forward air, rear air, four hot-swappable fan units | |
| Typical power consumption | Full configuration<600w<> | |
| Working temperature range | -10℃~60℃ | |
| Working humidity range | 5%~95% no condensation | |
| Storage temperature | -40℃～85℃ | |
| MTBF | ＞100000 hours | |

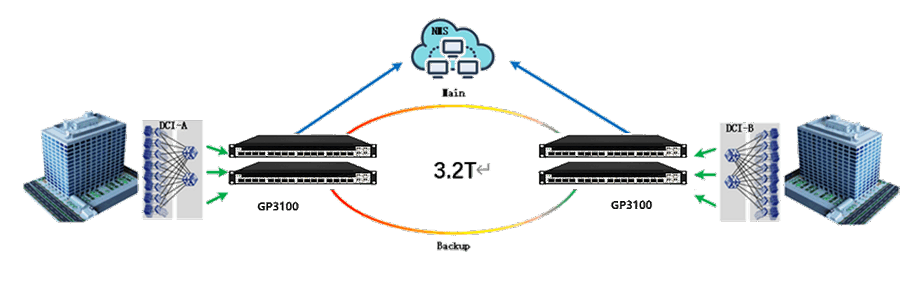

| Application scenario | ||
 | ||
●100% of products pass initial test, final test and factory inspection.
●3-step quality control management process.
●100% complete implementation of customer order quality requirements.
●100% guarantee of customer product data information security.
Please contact us to download the certification certificate.
Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
