PoE Splitter丨C-LIGHT

PoE Splitter

C-LIGHT PoE Splitter is a device that separates Power over Ethernet (PoE) signals into independent power output (e.g., 5V/12V/24VDC) and standard Ethernet data interfaces, enabling flexible power supply for non-PoE devices such as standard IP cameras and VoIP phones. It supports IEEE 802.3af/at standards, features plug-and-play operation with over-voltage/over-current protection, and accepts wide input voltage (9-57VDC). Industrial-grade models may include IP30-rated housing, extended temperature tolerance (-20°C to 60°C), and EMI resistance. Suitable for surveillance systems, smart home setups, and IoT deployments, it supports desktop or DIN rail mounting and complies with CE/FCC certifications and EMC standards, streamlining power and network integration for non-PoE devices.

3-year warranty

Long term maintenance

Technical Support

Professional free technical guidance

100% detection

Each module is 100% tested

Spot stock

Always in stock, short delivery time

Technical Support

Tel：+86 158 1857 3751

Online Consultation

Product Details

Support & Service

Quality Inspection

Quality Certification

Product Details

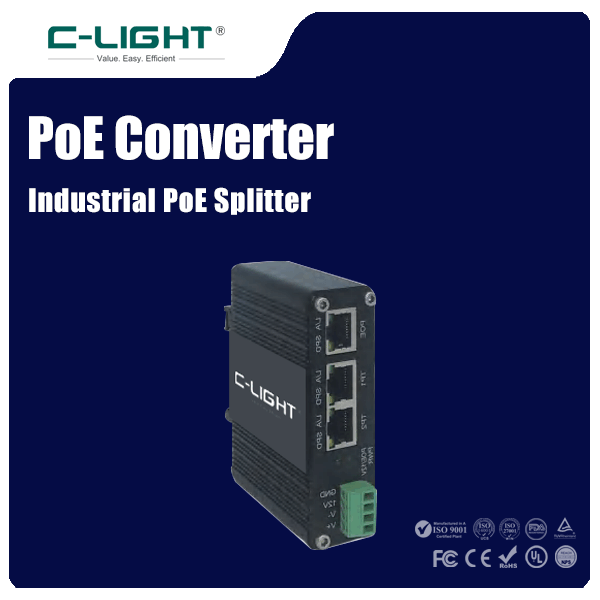

Industrial PoE Splitter(1.25G)
Model	CL-INS301 Series	CL-INS901 Series	CL-SPL01
Product Image
SPEC	1 RJ45 PoE input+1 RJ45 output; 5V/9V/12V/19V DC output optional; 25W 3.5A Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs.	1 RJ45 PoE input+2 RJ45 output; 12V/19V/24V/36V DC output optional; 50W 3.5A Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs.	1 RJ45 PoE input+2 RJ45 output; 12VDC; 60W 3.5A Max; 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs.

Commercial PoE Splitter
Model	CL-SP5VG-USB	CL-SP15WG	CL-SP24WG
Product Image
SPEC	1 RJ45 1G PoE input+1 RJ45 output DC5V 2A; DC 44V; 83x28x22mm; 0.25g; Aluminum Case; Operating Temperature:0°C to 55°C; MTBF> 200,000 hrs.	1 RJ45 1G PoE input+1 RJ45 output DC 5V 3A; DC 38~56V, 250x28x24mm; 0.25Kg; Aluminum Case; Operating Temperature:0°C to 55°C; MTBF> 200,000 hrs.	1 RJ45 1G PoE input+1 RJ45 output DC 24V 1A; DC 38~56V; 250x28x24mm; 0.25Kg; Aluminum Case; Operating Temperature:0°C to 55°C; MTBF> 200,000 hrs.

Support&Service

Customization

- 01 -

Customization

C-LIGHT R&D and sales provide various personalized product customization services for customers in different industries.

C-LIGHT ensures good product quality and quality assurance through a series of effective measures.

C-LIGHT provides professional pre-sales and after-sales services, including product certification qualifications, product reports, and free technical support.

C-LIGHT provides an excellent production environment to ensure that products can meet customer needs.

- 04 -

Quality inspection

●100% of products pass initial test, final test and factory inspection.

●3-step quality control management process.

●100% complete implementation of customer order quality requirements.

●100% guarantee of customer product data information security.

Quality certification

Please contact us to download the certification certificate.

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
