| Form Factor | Part No. | Fiber Type | Data Rate | Wavelength | Distance | Connector | Temperature | Note |
SFP28 to SFP28 | CLC25GSFPA-xx | MMF | 25G | 850nm | 0.5-30M | OM3 | Com. |

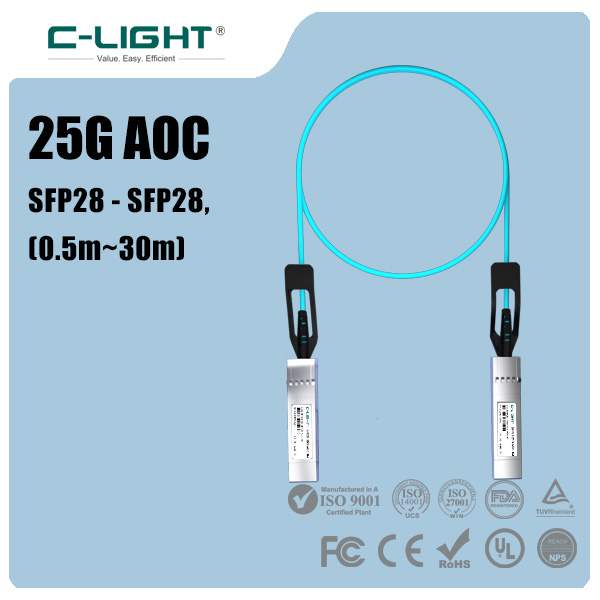

C-LIGHT 25G AOC active optical cables are developed for compact 25Gbps optical connections in data centers, 5G networks, 25G Ethernet environments, and Fibre Channel systems. By integrating the optical interfaces and multimode fiber into one cable assembly, the product provides a simple and efficient method for connecting compatible high-speed network equipment.
The 25G AOC uses an SFP28-to-SFP28 configuration with 850nm optical transmission over OM3 multimode fiber. The current product specification supports cable lengths from 0.5m to 30m, making it suitable for short-distance equipment connections inside racks and between nearby racks.
Designed around IEEE 802.3by and SFP28-related industry specifications, the 25G AOC provides a standardized optical interconnect for network environments that require more bandwidth than 10G while maintaining a compact SFP28 interface.
The cable provides 25Gbps connectivity for high-speed Ethernet and compatible network applications.
The current C-LIGHT product uses SFP28 interfaces at both ends for direct 25G equipment-to-equipment connections.
The AOC uses 850nm optical transmission technology for short-reach multimode fiber networking.
OM3 multimode fiber provides the optical medium for the listed 25G AOC configuration and is well suited to short data center links.
The available cable lengths cover short connections between servers, switches, and other network equipment.
The product follows the SFP28 MSA packaging architecture for compatibility with supported SFP28 equipment.
The communication protocol follows IEEE 802.3by specifications for 25G Ethernet applications.
The current product specification provides a commercial-temperature option for standard indoor networking environments.
25G AOCs can connect high-speed server interfaces with compatible switches, providing an efficient optical link for modern server access networks.
The cable is designed for 25GbE environments where higher server and network bandwidth is required without moving directly to 40G or 100G interfaces.
25G optical interconnects can be deployed in suitable 5G networking environments that require compact short-distance high-speed connections.
The 25G AOC can be considered for compatible Fibre Channel environments requiring short optical connections between supported network devices.
The SFP28-to-SFP28 architecture provides a direct connection between compatible 25G server and switch interfaces.
The 0.5m to 30m cable range makes the product suitable for connections within a rack and between nearby equipment positions.
25G AOC provides an optical connectivity option for organizations expanding server and switching capacity around existing 10G-based infrastructure.
The integrated optical cable assembly helps simplify cabling where large numbers of short-reach connections must be deployed in limited rack space.
The product focuses specifically on 25Gbps connectivity, making it suitable for server and network deployments positioned between 10G and higher-speed architectures.
The SFP28-to-SFP28 configuration provides a straightforward connection method for equipment equipped with compatible 25G SFP28 ports.
Lengths from 0.5m to 30m cover many short-distance connections encountered in server rooms and data center racks.
The active optical construction uses fiber transmission, providing an alternative to passive copper cabling for supported short-reach 25G connections.
The product is positioned for data centers, 5G networks, 25G Ethernet, and Fibre Channel environments rather than being limited to one network architecture.
C-LIGHT states that its 25G AOC is compatible with switches from more than 100 brands, supporting deployment across different equipment environments.
C-LIGHT states that each product is tested before shipment, with initial testing, final testing, and factory inspection included in its quality process.
C-LIGHT provides spot supply and customized services for customers with specific cable, compatibility, and deployment requirements.
A 25G AOC is an active optical cable designed for 25Gbps short-distance connectivity, with the optical components integrated into the cable assembly.
The current C-LIGHT 25G AOC uses an SFP28-to-SFP28 interface configuration.
The listed 25G AOC configuration uses OM3 multimode fiber with 850nm optical transmission.
The current product specification supports cable lengths from 0.5m to 30m.
The product communication protocol complies with IEEE 802.3by, while the interface specifications comply with SFF-8431 and SFF-8472.
Yes. The product is specifically positioned for data center applications and is suitable for short-distance server, switch, and rack-level connections.
Yes. C-LIGHT lists 5G networks among the target application environments for its 25G AOC.
Yes. C-LIGHT provides customized services according to customer requirements and also offers compatibility and technical support for network deployments.
C-LIGHT 25G AOC active optical cables provide a compact optical interconnect for data centers, 25G Ethernet, 5G networks, and compatible Fibre Channel environments. The SFP28-to-SFP28 design, 850nm multimode transmission, OM3 fiber, and 0.5m to 30m cable range address common short-reach networking requirements. With IEEE 802.3by compliance, SFP28 MSA packaging, multi-vendor compatibility, and C-LIGHT's testing and customization services, the 25G AOC series provides a practical optical connectivity option for high-density network deployments.
