| Connector Type | Diameter | Core | Fiber Type | Material | Ref. Picture |
| SC/UPC-SC/UPC | 0.9mm | Single core | G652D | PVC |
|
| 2.0mm | Dual core | G657A1 | OFNR | ||
| 3.0mm | G657A2 | OFNP | |||
| G655 | LSZH | ||||
| G657B3 | |||||
| SMF28e | |||||
| SC/APC-SC/UPC | 0.9mm | Single core | G652D | PVC |
|
| 2.0mm | Dual core | G657A1 | OFNR | ||
| 3.0mm | G657A2 | OFNP | |||
| G655 | LSZH | ||||
| G657B3 | |||||
| SMF28e | |||||
| SC/APC-SC/APC | 0.9mm | Single core | G652D | PVC |
|
| 2.0mm | Dual core | G657A1 | OFNR | ||
| 3.0mm | G657A2 | OFNP | |||
| G655 | LSZH | ||||
| G657B3 | |||||
| SMF28e |

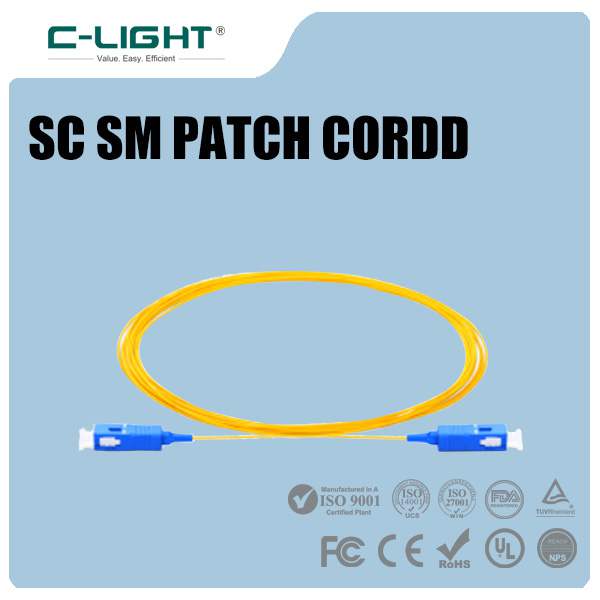

C-LIGHT SC SM Patch Cord is a single-mode fiber optic patch cable featuring the widely used SC connector with a push-pull latching mechanism. It supports 1310 nm and 1550 nm optical transmission and provides low insertion loss of ≤0.3 dB with high return loss. Multiple SC/UPC and SC/APC configurations, fiber types, cable diameters, and jacket materials are available for telecom networks, data centers, CATV systems, and optical testing environments.
The SC connector uses a simple push-pull latching mechanism that allows convenient installation and removal while maintaining a secure optical connection.
The patch cord is designed for single-mode fiber transmission and supports commonly used 1310 nm and 1550 nm wavelengths in long-distance optical communication systems.
With specified insertion loss of ≤0.3 dB, the patch cord helps minimize optical loss at the connection point and maintain stable link performance.
Return loss reaches ≥50 dB for UPC configurations and ≥60 dB for APC configurations, helping reduce reflected optical power in single-mode fiber links.
SC/UPC-SC/UPC, SC/APC-SC/UPC, and SC/APC-SC/APC configurations provide flexibility for different optical equipment and network connection requirements.
0.9 mm, 2.0 mm, and 3.0 mm cable diameters are available with PVC, OFNR, OFNP, LSZH, and selected armored construction options.
This standard configuration uses UPC-polished SC connectors on both ends and supports single-core or dual-core cable designs for common single-mode fiber connections.
The hybrid APC-to-UPC configuration provides a practical connection option when optical equipment or fiber distribution components use different connector polishing types.
APC connectors on both ends are suitable for single-mode applications requiring higher return loss and controlled optical reflections.
C-LIGHT provides both single-core and dual-core cable configurations to support different simplex and duplex fiber connection requirements.
Available fiber options include G652D, G657A1, G657A2, G655, G657B3, and SMF28e for different transmission and installation requirements.
The 0.9 mm construction provides a compact and flexible option for fiber distribution and equipment connections where limited cable space is available.
The larger 2.0 mm and 3.0 mm constructions provide additional mechanical protection and are suitable for more structured patching environments.
PVC, OFNR, OFNP, and LSZH jacket options are available, while armored configurations can provide additional mechanical protection for specific applications.
SC SM Patch Cords can connect optical transmission equipment, fiber distribution frames, and other components within single-mode telecom infrastructure.
The patch cord can be used for equipment connections and fiber distribution in data center and network equipment environments where SC interfaces are required.
Single-mode SC patch cords provide reliable optical connections for CATV systems and other access networks using SC-compatible fiber equipment.
The secure SC connector structure makes the patch cord suitable for optical testing, measurement, and laboratory environments requiring repeatable fiber connections.
Selection should be based on connector polishing type, fiber type, core configuration, cable diameter, jacket material, and installation environment. SC/UPC or SC/APC should match the connected equipment, while single-core or dual-core construction should be selected according to simplex or duplex requirements. The appropriate cable diameter and jacket material can then be selected according to routing conditions and mechanical protection needs.
The push-pull SC interface provides straightforward handling and stable mechanical coupling for a wide range of single-mode fiber systems.
C-LIGHT offers multiple SC polishing combinations, fiber types, core configurations, cable diameters, and jacket materials to match different deployment requirements.
Low insertion loss and high return loss specifications support stable optical transmission and reliable fiber interconnection performance.
C-LIGHT performs 100% initial testing, final testing, and factory inspection through a three-step quality control process and provides technical and customization support.
An SC SM Patch Cord is a single-mode fiber optic patch cable equipped with SC connectors for connecting optical equipment, fiber distribution frames, CATV systems, and other single-mode network components.
C-LIGHT SC SM Patch Cord supports 1310 nm and 1550 nm wavelength transmission for common single-mode optical communication applications.
The specified insertion loss of the C-LIGHT SC SM Patch Cord is ≤0.3 dB.
C-LIGHT provides SC/UPC-SC/UPC, SC/APC-SC/UPC, and SC/APC-SC/APC configurations.
The SC SM Patch Cord is available in 0.9 mm, 2.0 mm, and 3.0 mm cable configurations.
Available single-mode fiber types include G652D, G657A1, G657A2, G655, G657B3, and SMF28e.
C-LIGHT SC SM Patch Cord combines a secure push-pull SC interface, low insertion loss, high return loss, and flexible fiber and cable configurations. It provides a dependable connection solution for telecom networks, data centers, CATV systems, testing environments, and other single-mode fiber applications.
