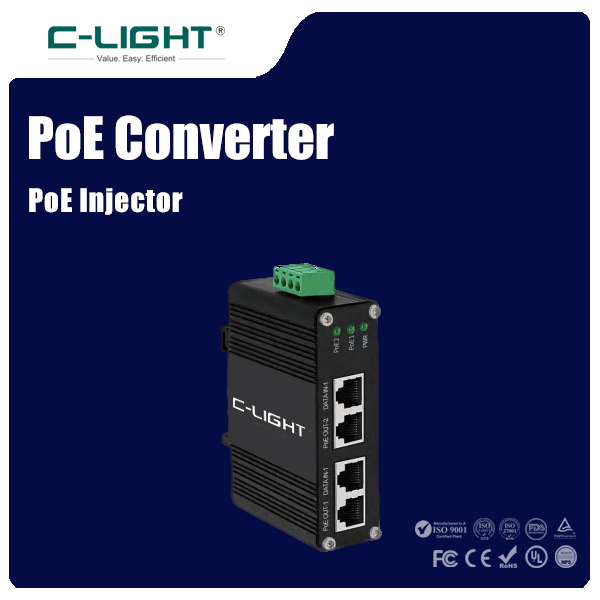

PoE Injector for Flexible Ethernet Power and Data Delivery
Industrial PoE Injector（1.25G） | |||
| Model | CL-INJ301-30 | CL-INJ301-60 | CL-INJ301-90 |
Product Image |
|
|
|
| SPEC | 1xRJ45 1G +1xRJ45 PoE output; 12~48VDC (Terminal Block); 30W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. | 1xRJ45 1G + 1xRJ45 PoE output; 12~48VDC (Terminal Block); 60W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. | 1xRJ45 1G + 1xRJ45 PoE output; 12~48VDC (Terminal Block); 90W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. |
| Model | CL-INJ832 | CL-INJ301-M12 | CL-INJ302 |
Product Image |
|
|
|
| SPEC | 1xRJ45 1G +1xRJ45 PoE output; 80~320VDC; 30W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. | 3xM12 connector (8-pin female M12 A-coding); 12~48VDC on 5-pin female M12 A-Coding; 30W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. | 2xRJ45 1G + 2xRJ45 PoE; 12~48VDC (Terminal Block); 60W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
Industrial PoE Injector（2.5G） | |||
| Model | CL-INJ401-30 | CL-INJ401-60 | CL-INJ401-90 |
Product Image |
|
|
|
| SPEC | 1xRJ45 2.5G +1xRJ45 PoE output; 12~48VDC (Terminal Block); 30W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. | 1xRJ45 2.5G +1xRJ45 PoE output; 12~48VDC (Terminal Block); 60W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. | 1xRJ45 2.5G + 1xRJ45 PoE output; 12~48VDC (Terminal Block); 90W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. |
Industrial PoE Injector（5G） | |||
| Model | CL-INJ501-30 | CL-NJ501-60 | CL-NJ501-90 |
Product Image |
|
|
|
| SPEC | 1xRJ45 5G +1xRJ45 PoE output; 12~48VDC (Terminal Block); 30W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs | 1xRJ45 5G +1xRJ45 PoE output; 12~48VDC (Terminal Block); 60W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs | 1xRJ45 5G + 1xRJ45 PoE output; 12~48VDC (Terminal Block); 90W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. |
Industrial PoE Injector（10G） | |||
| Model | CL-INJ601-30 | CL-NJ601-60 | CL-NJ601-90 |
Product Image |
|
|
|
| SPEC | 1xRJ45 10G +1xRJ45 PoE output; 12~48VDC (Terminal Block); 30W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs | 1xRJ45 10G +1xRJ45 PoE output; 12~48VDC (Terminal Block); 60W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs | 1xRJ45 10G + 1xRJ45 PoE output; 12~48VDC (Terminal Block); 90W Max. 95x70x30mm; 0.25Kg; Aluminum Case; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. |
Commercial PoE Injector | |||
| Model | CL-POE300 | CL-POE600 | CL-PSE9501G |
Product Image |
|
|
|
| SPEC | 1xRJ45 10/100/1000Base-TX +1xRJ45 PoE output 48VDC; 100-240V AC,50/60Hz; 30W Max. 61x40x12mm; 0.45Kg; Plastics; Operating Temperature:0°C to 40°C; MTBF> 200,000 hrs | 1xRJ45 10/100/1000Base-TX +1xRJ45 PoE output 48VDC; 100-240V AC,50/60Hz; 60W Max. 61x40x12mm; 0.45Kg; Plastics; Operating Temperature:0°C to 40°C; MTBF> 200,000 hrs | 1xRJ45 10/100/1000Base-TX +1xRJ45 PoE output 48VDC; 100-240V AC,50/60Hz; 90W Max. 61x40x12mm; 0.45Kg; Plastics; Operating Temperature:0°C to 40°C; MTBF> 200,000 hrs. |
Outdoor Waterproof Industrial PoE Injector(1.25G) | |||
| Model | CL-WP301 | CL-WP901 | CL-IPOE-30W |
Product Image |
|
|
|
| SPEC | 1 RJ45 Ethernet port input+1 RJ45 PoE output+2x M22 waterproof RJ-45; 12~48VDC； 30W Max. 260*210*80mm 2Kg; IP67 metal; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. | 1 RJ45 Ethernet port input+1 RJ45 PoE output+2x M22 waterproof RJ-45; 48~57VDC； 95W Max. 260*210*80mm 2Kg; IP67 metal; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs | 1 RJ45 Ethernet port input+1 RJ45 PoE output+2x M22 waterproof RJ-45; 90~264VAC； 30W Max. 260*210*80mm 2Kg; IP67 metal; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs |
| Model | CL-IPOE-95W | ||
Product Image |
| ||
| SPEC | 1 RJ45 Ethernet port input+1 RJ45 PoE output+2x M22 waterproof RJ-45; 90~264VAC； 95W Max. 260*210*80mm 2Kg; IP67 metal; Operating Temperature:-40°C to 80°C; MTBF> 200,000 hrs. | ||
The C-LIGHT PoE Injector combines Ethernet data connectivity with DC power delivery over a single network cable, allowing non-PoE network devices such as IP cameras, wireless access points, and other Ethernet terminals to receive power without replacing the existing Ethernet switch. The product family covers industrial 1.25G, 2.5G, 5G, and 10G PoE injectors, commercial 10/100/1000Base-TX models, and outdoor waterproof industrial versions. Available power levels range from 30W to 95W depending on model, with selected products supporting 80~320VDC or 90~264VAC input and IP67 outdoor protection.
Key Features
Data and Power over One Cable
The PoE Injector combines Ethernet data and DC power on a single RJ45 connection, simplifying deployment of compatible powered network devices.
1.25G to 10G Ethernet Support
Industrial models are available for 1.25G, 2.5G, 5G, and 10G Ethernet applications, providing flexible options for different network bandwidth requirements.
30W to 95W PoE Power
Different models provide 30W, 60W, 90W, or 95W maximum PoE output to match the power requirements of connected equipment.
Industrial Wide-Voltage Input
Industrial versions support different DC input ranges, including 12~48VDC and selected 80~320VDC configurations.
Outdoor Waterproof Options
The outdoor industrial series provides IP67-rated metal housings with waterproof M22 RJ45 interfaces for demanding external installations.
Compact Industrial Design
Most industrial models use a 95mm x 70mm x 30mm aluminum enclosure and provide an operating temperature range up to -40°C to 80°C.
Product Specifications
Product Types
Industrial PoE Injector, Commercial PoE Injector, and Outdoor Waterproof Industrial PoE Injector
Ethernet Rate Options
1.25G, 2.5G, 5G, 10G, and 10/100/1000Base-TX depending on model
PoE Output Power
30W, 60W, 90W, or 95W depending on model
Industrial DC Input
12~48VDC on standard industrial models; 80~320VDC on selected CL-INJ832 models
Commercial AC Input
100~240VAC, 50/60Hz on commercial PoE injector models
Outdoor AC Input
90~264VAC on selected outdoor waterproof models
Industrial Dimensions
95mm x 70mm x 30mm on listed compact industrial models
Outdoor Dimensions
260mm x 210mm x 80mm on the outdoor waterproof industrial series
Industrial Housing
Aluminum case on standard industrial models and IP67 metal case on outdoor waterproof models
Operating Temperature
-40°C to 80°C on most industrial models, -40°C to 75°C on selected M12/RJ45 models, and 0°C to 40°C on commercial models
MTBF
More than 200,000 hours on the listed product models
Industrial PoE Injector Series
1.25G PoE Injector
The 1.25G series includes CL-INJ301-30, CL-INJ301-60, and CL-INJ301-90, providing 1xRJ45 1G input and 1xRJ45 PoE output with 30W, 60W, or 90W maximum power.
High-Voltage CL-INJ832
The CL-INJ832 provides 1xRJ45 1G input and 1xRJ45 PoE output with 80~320VDC input and 30W maximum PoE power.
M12 Industrial PoE Injector
The CL-INJ301-M12 uses three 8-pin female M12 A-coded connectors with 12~48VDC input and 30W maximum output for industrial environments requiring rugged M12 connectivity.
Dual-Port CL-INJ302
The CL-INJ302 provides 2xRJ45 1G Ethernet ports and 2xRJ45 PoE outputs with 60W maximum PoE power and 12~48VDC input.
Multi-Gigabit PoE Injector Series
2.5G PoE Injector
The CL-INJ401-30, CL-INJ401-60, and CL-INJ401-90 support 2.5G Ethernet input with 30W, 60W, or 90W maximum PoE output.
5G PoE Injector
The CL-INJ501-30, CL-NJ501-60, and CL-NJ501-90 support 5G Ethernet input with 30W, 60W, or 90W maximum PoE output.
10G PoE Injector
The CL-INJ601-30, CL-NJ601-60, and CL-NJ601-90 support 10G Ethernet input with 30W, 60W, or 90W maximum PoE output.
High-Bandwidth PoE Connectivity
The 2.5G, 5G, and 10G series provide PoE power without reducing the Ethernet bandwidth required by higher-speed network devices.
Commercial PoE Injector Series
CL-POE300
The CL-POE300 provides 1xRJ45 10/100/1000Base-TX input and 1xRJ45 PoE output with 48VDC and 30W maximum PoE power from a 100~240VAC supply.
CL-POE600
The CL-POE600 uses the same 10/100/1000Base-TX Ethernet interface architecture and provides 60W maximum PoE output from a 100~240VAC input.
CL-PSE9501G
The CL-PSE9501G provides 10/100/1000Base-TX connectivity and 90W maximum PoE output with 48VDC output and 100~240VAC input.
Compact Commercial Housing
The commercial models use a compact 61mm x 40mm x 12mm plastic enclosure with an operating temperature range of 0°C to 40°C.
Outdoor Waterproof PoE Injector Series
CL-WP301
The CL-WP301 provides 1 RJ45 Ethernet input, 1 RJ45 PoE output, and 2 waterproof M22 RJ45 interfaces with 12~48VDC input and 30W maximum PoE output.
CL-WP901
The CL-WP901 provides the same rugged interface architecture with 48~57VDC input and up to 95W PoE output for higher-power outdoor devices.
CL-IPOE-30W
The CL-IPOE-30W uses 90~264VAC input and provides 30W PoE output in the IP67 outdoor metal enclosure.
CL-IPOE-95W
The CL-IPOE-95W provides 90~264VAC input with 95W maximum PoE output for outdoor powered network equipment requiring higher power.
PoE Power Delivery Architecture
Ethernet Input
The data input connects the PoE injector to a network switch, router, or other Ethernet source equipment.
Powered Ethernet Output
The PoE output combines network data and DC power for delivery to a compatible powered Ethernet device.
Non-PoE Device Upgrade
The injector allows compatible non-PoE network equipment to receive power through Ethernet without replacing the upstream Ethernet switch.
Single-Cable Deployment
Combining power and data on one Ethernet cable can simplify device installation and reduce separate power cabling requirements.
Industrial Reliability Design
Wide Temperature Operation
Most industrial models operate from -40°C to 80°C, while selected M12 configurations support -40°C to 75°C.
Aluminum Enclosure
The compact industrial models use aluminum housings for a durable and space-efficient installation platform.
IP67 Outdoor Protection
The outdoor waterproof series uses IP67-rated metal housings for protection in exposed installation environments.
M12 Connectivity
The CL-INJ301-M12 provides industrial M12 interfaces for applications requiring more rugged external connections than standard RJ45 ports.
EMC-Oriented Design
The product family is designed for use in industrial and commercial network environments with applicable EMC and safety certification requirements.
Long-Term Reliability
The listed industrial and commercial models provide an MTBF greater than 200,000 hours.
Applications
IP Surveillance
Provides both network connectivity and PoE power for IP cameras deployed across factories, buildings, transportation facilities, and outdoor sites.
Wireless Access Points
PoE injectors provide network data and power to compatible wireless access points where a PoE switch is not available.
Industrial Ethernet Networks
Industrial models support powered Ethernet devices in factories, control cabinets, transportation systems, and utility environments.
Outdoor Network Equipment
IP67 waterproof configurations provide a solution for outdoor Ethernet devices requiring protected PoE power and data connections.
Multi-Gigabit Network Devices
2.5G, 5G, and 10G PoE injectors support higher-speed powered devices such as advanced wireless access points and other high-bandwidth Ethernet equipment.
Network Infrastructure Upgrades
The injector architecture allows PoE capability to be added to compatible Ethernet endpoints without changing the existing non-PoE network switch.
Why Choose the PoE Injector
The C-LIGHT PoE Injector family provides multiple combinations of Ethernet speed, PoE power, input voltage, connector type, and environmental protection. From compact commercial 10/100/1000Base-TX models to industrial 1.25G/2.5G/5G/10G injectors and IP67 outdoor versions, the series supports 30W to 95W PoE output and provides options for standard, high-bandwidth, industrial, and outdoor network deployments.
FAQ
Q1. What is a PoE Injector?
A PoE Injector adds DC power to an Ethernet connection so a compatible powered device can receive both network data and power through one Ethernet cable.
Q2. What Ethernet speeds are available?
The product family includes 10/100/1000Base-TX commercial models and industrial models supporting 1.25G, 2.5G, 5G, and 10G Ethernet.
Q3. What PoE power levels are available?
Depending on the model, maximum PoE output is 30W, 60W, 90W, or 95W.
Q4. Are outdoor waterproof models available?
Yes. The outdoor waterproof industrial series uses IP67 metal housings, waterproof M22 RJ45 interfaces, and supports 30W or higher PoE power depending on the model.
Q5. Does the PoE Injector support industrial power inputs?
Yes. Industrial models support DC inputs such as 12~48VDC, while the CL-INJ832 supports 80~320VDC and selected outdoor models use AC input configurations.
PoE Injector
Designed for flexible powered Ethernet deployment, the C-LIGHT PoE Injector family provides 1.25G to 10G industrial options, commercial 10/100/1000Base-TX models, outdoor IP67 configurations, and 30W to 95W PoE output for surveillance, wireless, industrial, and outdoor network applications.
