Ind. Unmanaged PoE Switch

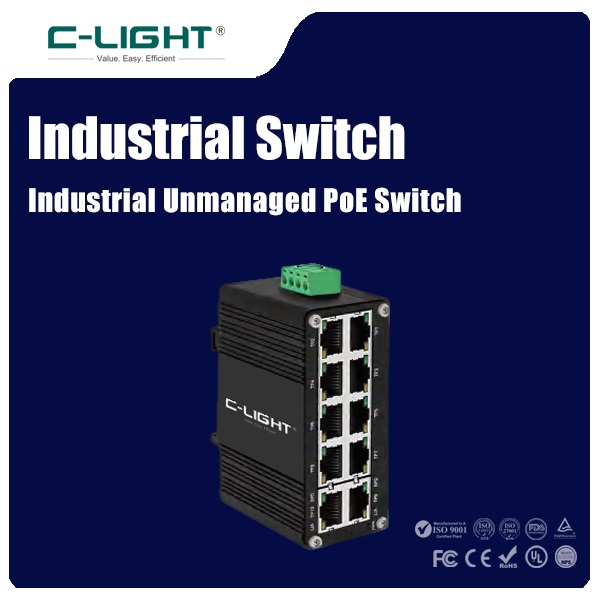

C-LIGHT Industrial Unmanaged PoE Switch is a plug-and-play networking device designed for industrial environments, integrating Power over Ethernet (PoE/PoE+) functionality to deliver power to endpoints like IP cameras and wireless access points without complex configuration. Key features include multi-port PoE output (compliant with IEEE 802.3af/at standards), high power budgets (e.g., 30W per port, 240W total), industrial-grade protection (IP40 dust resistance, -40°C to 75°C temperature range, vibration/shock resistance), and fanless silent cooling. Suitable for factory floors, surveillance systems, and smart lighting, it supports DIN rail or rack mounting, with redundant power inputs and overload protection for reliable operation. Certified with CE/FCC and compliant with industrial EMC standards, typical models balance cost efficiency with rugged durability.
3-year warranty
Long term maintenance
Technical Support
Professional free technical guidance
100% detection
Each module is 100% tested
Spot stock
Always in stock, short delivery time
Product Details
Industrial Unmanaged PoE Switch(RJ45 port Only)
ModelCL-IMC005GPCL-IMC008PCL-IMC008GP
Product Image

SPEC

4+1 x10/100/1000Base-T PoE;

12~48VDC (Terminal Block);

<125w>

95x70x29mm;

0.25Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.


8x10/100Base-T PoE;

48~57VDC, Redundant Power (6-pin Terminal Block);

245W Max. (PoE in use),5W Max. (PoE not in use);

150x115x50 mm;

0.6Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.

8x10/100/1000Base-T PoE;

48~57VDC, Redundant Power (6-pin Terminal Block);

245W Max. (PoE in use),5W Max. (PoE not in use);

150x115x50 mm;

0.6Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.

ModelCL-IMC010GP
Product Image
SPEC

8+2 x10/100/1000Base-T PoE;

48~57VDC;

<250w>

95x88x46mm;

0.4Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.


Industrial Unmanaged PoE Switch(RJ45+1000Base-X)
ModelCL-IMC103GP Series
CL-IMC103GP-SFPCL-IMC104GP-SFP
Product Image

SPEC

3xRJ45 with 802.3at PoE+ injector function (Ports 1 to 3) + 1xSC 1000Base-X;

12~48VDC, 2-pin terminal block;

<95w>

95x70x30mm;

0.3Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.

3xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection);

12~48VDC, 2-pin terminal block;

5W Max.;

95x70x30mm;

0.25Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.

4xRJ45 + 1xSFP 1000Base-X or 100Base-FX (auto detection);

12~48VDC, 2-pin terminal block;

5W Max.;

95x70x30mm;

0.25Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.

ModelCL-IMC104GP SeriesCL-IMC108GP Series
Product Image

SPEC

4xRJ45 + 1xSFP 1000Base-X;

12~48VDC (Terminal Block);

<125w>

95x70x29mm;

0.25Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.

8xRJ45 + 1x100/1000Base-X (SFP, SC, FC, ST Optional);

48~57VDC, Redundant Power (6-pin Terminal Block);

253W Max. (PoE in use),5W Max. (PoE not in use);

150x115x50mm;

0.6Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.


Industrial Unmanaged PoE Switch(RJ45+100Base-X)
ModelCL-IMC104P SeriesCL-IMC108P Series
Product Image

SPEC


4xRJ45 + 1xSFP 100Base-X;

12~48VDC (Terminal Block);

<125w>

95x70x29mm;

0.25Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.

8xRJ45 + 1x100Base-X (SFP, SC, FC, ST Optional);

48~57VDC, Redundant Power (6-pin Terminal Block);

253W Max. (PoE in use),5W Max. (PoE not in use);

150x115x50mm;

0.6Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.


Industrial Unmanaged PoE Switch(RJ45+100Base-X)
ModelCL-IMC202GP SeriesCL-IMC202GP90 SeriesCL-IMC205GHP-SFP
Product Image

SPEC


2xRJ45 PoE + 2xSFP 1000Base-X;

12~48VDC, 4-pin terminal block;

30W PoE;

95x70x30 mm;

0.5Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.


2xRJ45 PoE  + 2xSFP 1000Base-X;

48~57VDC, 4-pin terminal block;

90W PoE;

95x70x30 mm;

0.5Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs

4xRJ45 PoE + 2xSFP 1000Base-X +1x10/100/1000M RJ45;

48~57VDC, 4-pin terminal block;

90W PoE;

150x115x50 mm;

0.6Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.

ModelCL-IMC205GPD-SFPCL-IMC204P SeriesCL-IMC204GP Series
Product Image

SPEC

5xRJ45 PoE + 2xSFP 1000Base-X;

48~57VDC, 4-pin terminal block;

90W PoE;

150x115x50 mm;

0.6Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs

4xRJ45 PoE + 2xSFP 100Base-X;

48~57VDC, 4-pin terminal block;

90W PoE;

95x70x30 mm;

0.5Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs

4xRJ45 PoE + 2xSFP 1000Base-X;

48~57VDC, 4-pin terminal block;

90W PoE;

95x70x30 mm;

0.5Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.

ModelCL-IMC208P SeriesCL-IMC208GP Series
Product Image

SPEC

8xRJ45 + 2x100Base-FX (SFP, SC, FC, ST Optional);

48~57VDC, Redundant Power (6-pin Terminal Block);

253W Max. (PoE in use),5W Max. (PoE not in use);

150x115x50mm;

0.6Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs

8xRJ45 + 2x100/1000Base-FX (SFP, SC, FC, ST Optional);

48~57VDC, Redundant Power (6-pin Terminal Block);

253W Max. (PoE in use),5W Max. (PoE not in use);

150x115x50mm;

0.6Kg;

Aluminum Case;

Operating Temperature:-40°C to 75°C;

MTBF> 200,000 hrs.


Quality inspection

●100% of products pass initial test, final test and factory inspection.

●3-step quality control management process.

●100% complete implementation of customer order quality requirements.

●100% guarantee of customer product data information security.

Quality certification

Please contact us to download the certification certificate.


Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
