| Connector | Components | Fiber Type | Core | Sleeve Material | Note |
| MPO/F-MPO/F | SM G657A2 | 8 | PVC |
| |
| SANWA | OFNR | ||||
| 12 | OFNP | ||||
| NISSIN | LSZH | ||||
| 24 | |||||
| SENKO | |||||
| MM OM3/150 | 8 | ||||
| 12 | |||||
| 24 | |||||
| MM OM3/300 | 8 | ||||
| 12 | |||||
| 24 | |||||
| MM OM4/550 | 8 | ||||
| 12 | |||||
| 24 | |||||

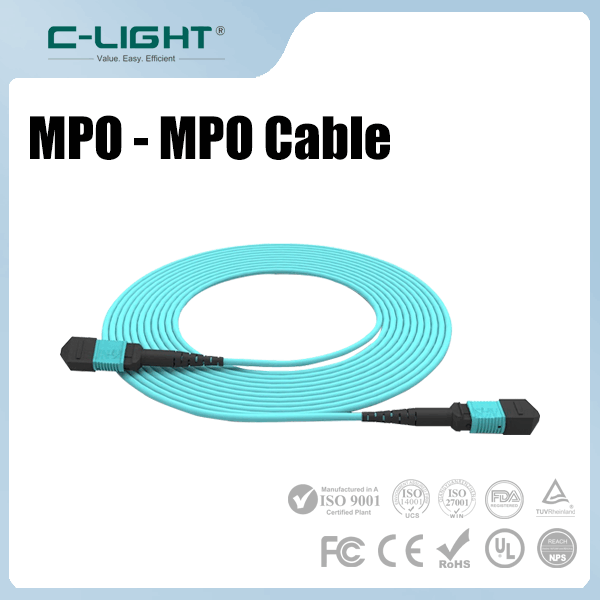

C-LIGHT MPO-MPO Fiber Patch Cable is a high-density multi-fiber optical cable designed with MPO/F connectors on both ends. It provides a direct multi-fiber connection for optical systems that use MPO interfaces and is intended for structured cabling environments where multiple optical channels need to be handled through a compact connection.
The MPO-MPO configuration is particularly suitable for parallel optical transmission. By combining multiple fibers within a single connector assembly, it can simplify connections between compatible optical modules, patch panels, and other high-density fiber components.
C-LIGHT provides MPO-MPO configurations for both single-mode and multimode fiber. Single-mode versions use G657A2 fiber, while multimode options include OM3/150, OM3/300, and OM4/550. Available fiber counts include 8, 12, and 24 cores.
The cable family is designed for high-speed optical networking applications including compatible 40G, 100G, and 400G architectures. It can also be used with compatible QSFP+ and QSFP28 transceiver systems where MPO-based parallel fiber connectivity is required.
The cable uses MPO/F connectors at both ends, creating a direct multi-fiber path between compatible MPO interfaces.
Multiple optical fibers work together within the MPO assembly to support parallel transmission architectures for high-speed networks.
The multi-fiber connector structure helps reduce the space required for individual fiber connections in dense cabling environments.
Different core counts provide scalable choices for network designs with different optical channel requirements.
G657A2 configurations provide a single-mode option for compatible optical communication and structured fiber networks.
OM3/150, OM3/300, and OM4/550 configurations support compatible short-reach multimode optical applications.
The listed product specification provides insertion loss of ≤0.5 dB for the supported MPO-MPO assemblies.
PVC, OFNR, OFNP, and LSZH sleeve materials are available for different installation environments.
MPO-MPO cables provide compact multi-fiber links between compatible optical equipment and fiber distribution systems within data centers.
The multi-fiber architecture can be deployed in compatible 40G parallel optical transmission systems.
MPO-MPO connections can support compatible 100G parallel optical architectures used in high-bandwidth network environments.
The high-density fiber structure can be integrated into compatible 400G optical interconnect systems using parallel fiber transmission.
MPO-MPO cabling can be used with compatible QSFP+ optical systems that require multi-fiber connectivity.
The assembly is suitable for compatible QSFP28-based network architectures using MPO interfaces.
The cable can connect MPO-based patching and distribution equipment while maintaining a compact multi-fiber architecture.
MPO-MPO assemblies help organize large numbers of optical channels in structured fiber infrastructures with limited rack space.
The 8-core configuration provides a compact option for optical systems requiring a limited number of parallel fiber channels.
The 12-core configuration provides a common high-density arrangement for parallel optical network connectivity.
The 24-core version increases fiber capacity through a single MPO-based cable assembly for higher-density applications.
Single-mode G657A2 fiber is available for compatible single-mode transmission and backbone connectivity.
OM3/150 provides a multimode configuration for supported high-speed short-reach optical applications.
OM3/300 offers another multimode fiber configuration for compatible data center and optical networking deployments.
OM4/550 provides a higher-performance multimode option for compatible high-speed optical links.
Multiple sleeve materials provide flexibility for different cabling environments, installation methods, and project requirements.
MPO connectivity consolidates multiple optical channels into a single connection, making it useful for dense rack-level fiber deployment.
MPO interfaces on both ends eliminate the need for a connector conversion within the cable assembly and provide a straightforward multi-fiber link.
The cable is positioned for compatible 40G, 100G, and 400G parallel optical network architectures.
G657A2, OM3, and OM4 choices allow the product family to address different optical transmission environments.
8-, 12-, and 24-core versions allow customers to select the fiber density appropriate for their network design.
PVC, OFNR, OFNP, and LSZH materials provide additional flexibility for installation and structured cabling requirements.
C-LIGHT states that products undergo initial testing, final testing, and factory inspection as part of its three-step quality-control process.
C-LIGHT provides personalized product customization, technical guidance, and pre-sales and after-sales support for different deployment requirements.
An MPO-MPO fiber patch cable is a multi-fiber optical cable equipped with MPO connectors on both ends for direct high-density fiber connectivity.
MPO-MPO connectivity combines multiple optical channels into a compact connection, helping simplify high-density parallel fiber cabling.
C-LIGHT provides 8-, 12-, and 24-core MPO-MPO configurations.
The product family includes G657A2 single-mode fiber and OM3/150, OM3/300, and OM4/550 multimode configurations.
Yes. C-LIGHT positions MPO-MPO fiber cables for compatible 40G, 100G, and 400G parallel optical network applications.
The product page identifies compatibility with QSFP+ and QSFP28 transceiver systems using suitable MPO interfaces.
The listed maximum insertion loss for the MPO-MPO product is ≤0.5 dB.
Yes. C-LIGHT provides personalized fiber cabling solutions based on fiber type, core count, sleeve material, connector requirements, and application conditions.
C-LIGHT MPO-MPO Fiber Patch Cable provides a direct multi-fiber connection for high-density optical networks using MPO interfaces at both ends. With 8-, 12-, and 24-fiber configurations, G657A2 single-mode fiber, OM3/OM4 multimode options, and PVC, OFNR, OFNP, and LSZH sleeve materials, the product family can support different structured cabling requirements. Its compact architecture and parallel transmission capability make it suitable for data centers, high-speed Ethernet networks, optical module interconnection, and other high-density fiber infrastructures.
