Hand-held Inspection Probe丨C-LIGHT

Product Details

This product is a portable/ video microscope to inspect all kinds of fiber optic terminations/especially for the female ones.It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.

Feature

• Convenient using both for male and female adapters;

• Widely used in DWDM/SDH/SONET etc;

• Available for USB 2.0 interface on PC and data saving

• Analysis system software

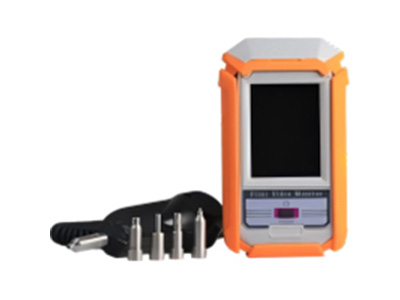

FVM-100 4-Pin Regular Inspection Probe	FVM-103 MPO/MTP 4-Pin Inspection Probe

Product

Type	FVM-100	FVM-103
Magnification	200x or 400x
Resolution Ratio	0.75 μm
Analysis System	N/A
Display Supply	3.5”TFT-LCD/ 960x240 pixels	3.5”TFT-LCD/ 960x240 pixels
Power Supply	12.6V Li battery
Weight（kg)	Probe(0.14); Monitor(0.4)	Probe(0.14) Monitor(0.4)
Dimensions(cm)	Probe(2233) Monitor(17104.5)
Work/Storage	-20℃~+50℃ -30℃~+60℃

Standard Accessories

Optional Accessories

Tips type	Function Description
Standard Accessories
125-U-M	LC/MU patch cord UPC termination
25-U-M	FC/SC/ST/E2000 patch cord UPC termination
FC-PC-F	FC UPC bulkhead
SC-PC-F	SC UPC bulkhead
LC-U-F	LC/MU UPC bulkhead

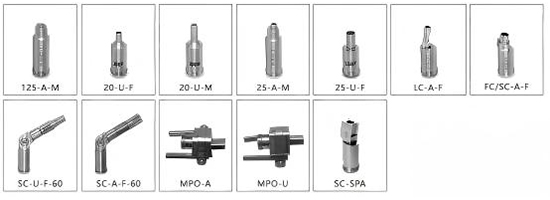

Optional Accessories
125-A-M	LC/MU patch cord APC termination
25-A-M	FC/SC/ST/E2000 patch cord APC termination
20-U-F	SMPTE/LEMO UPC bulkhead
20-U-M	SMPTE/LEMO patch cord APC termination
25-U-F	FC/SC UPC bulkhead
FC/SC-A-F	FC/SC APC bulkhead
LC-A-F	LC APC bulkhead
SC-U-F-60	Bend tip for SC UPC bulkhead
SC-A-F-60	Bend tip for SC APC bulkhead
MPO-A	MTP/MPO APC bulkhead
MPO-U	MTP/MPO UPC bulkhead
SC-SPA	SC UPC bulkhead

FVM-100 Ordering Information

	FVM-100 Inspection Probe x1
	3.5” monitor x1
	25-U-M x1
Standard	125-U-M x1
Accessories	FC-PC-F x1
	SC-PC-F x1
	LC-U-F x1
	Recharger; Manual
	Hard Carrying bag;Li Battery
Optional	25-A-M;125-A-M;SC-A-F;
Accessories	FC-A-F;LC-A-F
	AV-USB 2.0 Converter

Related Products

FCC-A	FVM-100 Standard Accessories
	CLEP-25 x1
	CLEP-125 X1
	CLE-BOX X1
	Replacement of CLE-BOX X1

FVM-103	FVM-103 MPO/MTP Inspection Probe
	3.5” memory monitor x1
	25-U-M x1
	125-U-M x1
	FC-PC-F x1
	SC-PC-F x1
	LC-U-F x1
	MPO-U-F
	MPO-A-F
	Soft Carrying Bag
