| Form Factor | Part No. | Fiber Type | Data Rate | Wavelength | Distance | Connector | Temperature | Note |
800G QSFP-DD- 800G QSFP-DD Flat to Flat | CLQD8-QD8AOC-xx-FLT | MMF | 800G IB | 850nm | 1-30M | OM3 | Com. | |
800G OSFP112 - 800G OSFP112 Finned to Finned | CLOP8-OP8AOC-xx-FIN | MMF | 800G IB | 850nm | 1-30M | OM3 | Com. | |
800G OSFP112 - 2x400G OSFP112 Finned to Finned | CLOP8-2xOP4AOC-xx-FIN | MMF | 800G/400G | 850nm | 1-30M | OM3 | Com. | |
800G OSFP112 - 4x200G OSFP112 Finned to Finned | CLOP8-4xOP2AOC-xx-FIN | MMF | 800G/200G | 850nm | 1-30M | OM3 | Com. | |
800G OSFP112 - 2x400G QSFP112 Finned to Flat | CLOP8-2xQP4AOC-xx-FLT | MMF | 800G/400G IB | 850nm | 1-30M | OM3 | Com. |

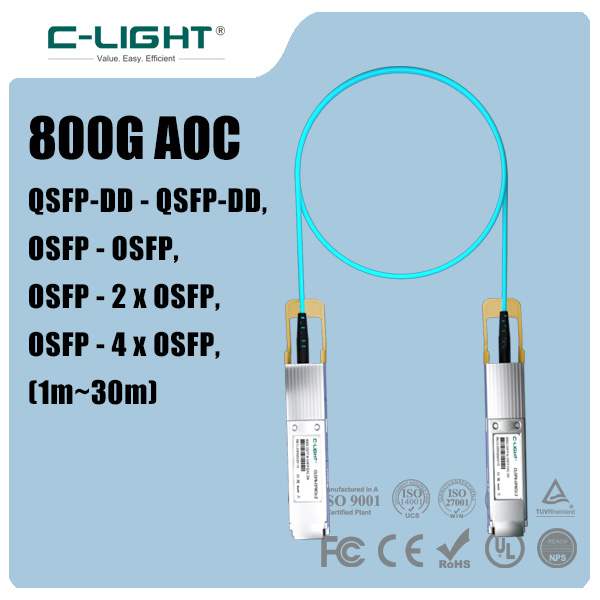

C-LIGHT 800G AOC active optical cables are designed for high-bandwidth short-distance connections in modern data center and high-performance computing environments. By integrating optical transceiver technology directly into a cable assembly, 800G AOC provides a compact interconnect solution for high-density network architectures.
The product family supports 800G connectivity through QSFP-DD and OSFP interfaces and uses 850nm multimode optical transmission over OM3 fiber. Standard configurations cover 1m to 30m, while breakout versions allow one 800G interface to connect with multiple lower-speed interfaces for flexible network architectures.
The 800G AOC series is intended for applications where high bandwidth, simplified cabling, short transmission distance, and efficient rack-level or data-center-level interconnection are required.
The active optical cable provides 800Gbps network connectivity for high-performance switching and computing infrastructures.
The portfolio includes QSFP-DD to QSFP-DD and OSFP to OSFP configurations for different generations of high-speed data center equipment.
The listed configurations use 850nm optical transmission with multimode fiber for short-reach high-speed interconnect applications.
OM3 multimode fiber is used for the current product configurations, providing a suitable medium for short-distance 800G optical connections.
The product family covers short cable lengths from 1m to 30m, making it suitable for equipment-to-equipment and rack-level connections.
The OSFP to 2xOSFP configuration supports 800G/400G connectivity for network architectures that require bandwidth distribution between different interfaces.
The OSFP to 4xOSFP configuration provides an 800G/200G connection architecture for higher port-density deployments.
C-LIGHT specifies IEEE 802.3ck communication protocol compliance and CMIS 4.0 interface protocol for the 800G AOC family.
800G AOCs can provide high-bandwidth optical connections between switches and computing infrastructure in AI-oriented data centers.
High-performance GPU clusters require large volumes of high-speed connections. 800G AOC provides a compact option for short optical links within these architectures.
The cable assembly can connect high-speed switch ports while reducing the need to separately install optical modules and fiber patch cables.
Short 1m to 30m cable configurations are well suited to connections between equipment positioned within the same rack or adjacent racks.
800G AOC solutions can be deployed for short optical connections between high-speed spine and leaf network equipment.
High-performance computing systems can use 800G AOCs to establish high-throughput connections between compute and networking resources.
Cloud data centers can use active optical cables for high-density short-reach interconnects between high-speed networking devices.
800G breakout configurations allow a single high-speed port to be connected with multiple lower-speed ports, supporting flexible network scaling.
Optical transceiver components are integrated into the cable assembly, providing a ready-to-deploy interconnect solution without separate optical modules and patch cords.
The compact AOC architecture is suitable for data center environments where large numbers of high-speed connections must be installed within limited rack space.
QSFP-DD, OSFP, and breakout configurations provide options for different switch and accelerator interconnection designs.
The 1m to 30m range focuses the product on high-density equipment connections where long-distance optical transceivers are unnecessary.
Breakout configurations make it possible to distribute an 800G connection into 400G or 200G interfaces according to the requirements of the network architecture.
C-LIGHT states that its 800G AOC is compatible with switches from more than 100 brands, supporting deployment across different equipment environments.
C-LIGHT states that its products undergo testing and inspection before shipment to support stable operation and product quality.
C-LIGHT supports customized cable configurations according to interface combination, cable length, transmission requirements, and equipment compatibility.
An 800G AOC, or Active Optical Cable, is a high-speed optical cable assembly with integrated optical components at both ends, designed for short-distance 800Gbps network connections.
C-LIGHT provides QSFP-DD to QSFP-DD and OSFP to OSFP configurations, together with OSFP breakout options.
The current product configurations support cable lengths from 1m to 30m, while the product page describes the overall transmission range as 1m to 33m.
The listed 800G AOC configurations use multimode fiber with OM3 fiber specifications.
The current product specifications list 850nm as the optical wavelength.
Yes. C-LIGHT lists OSFP to 2xOSFP 800G/400G and OSFP to 4xOSFP 800G/200G breakout configurations.
C-LIGHT specifies IEEE 802.3ck for the communication protocol, CMIS 4.0 for the interface protocol, and OSFP MSA for the OSFP packaging configuration.
Yes. C-LIGHT provides customized AOC solutions according to connector configuration, cable length, equipment compatibility, and application requirements.
C-LIGHT 800G AOC active optical cables provide an integrated optical interconnect solution for high-speed data center, AI computing, cloud computing, and HPC environments. With QSFP-DD and OSFP configurations, 850nm multimode transmission, OM3 fiber, 1m to 30m standard cable lengths, and 800G-to-400G or 800G-to-200G breakout options, the product family addresses a broad range of short-reach high-bandwidth network architectures. The integrated cable design simplifies deployment while supporting the high port density required by next-generation data center networks.
