LED Screen Fiber Media Converter for High-Definition Long-Distance Display Networks
LED Screen Fiber Media Converter | ||
| Model | CL-LED104G | CL-LED108G |
Product Image |
|
|
| SPEC | 4xRJ45,1x10G SC; 5~12VDC; 3W Max; 130x106x28nm; 0.35Kg; Metal case; Operating Temperature:-10°C to 55°C; MTBF> 200,000 hrs. | 8xRJ45,1x10G SFP+; 12 ~ 48VDC(Non PoE)，48~57VDC(PoE); 5W Max,; 150x115x50nm; 0.6Kg; Aluminium case; Operating Temperature:-40°C to 75°C; MTBF> 200,000 hrs. |
The LED Screen Fiber Media Converter is an industrial-grade network device designed for long-distance, high-definition video transmission to LED display systems. It converts electrical video signals to optical signals for fiber transport, supporting 4K and 8K ultra-high-definition applications with low latency and real-time signal transmission. The product family supports multimode and single-mode fiber architectures, bidirectional conversion, EMI-resistant optical transmission, EDID management, and fiber links up to 20km. Two main models provide different Ethernet port densities and 10G optical interfaces for LED display, live event, transportation, and outdoor digital signage applications.
Key Features
4K and 8K High-Definition Transmission
The converter is designed for high-definition video transmission to LED displays, supporting 4K and 8K ultra-HD applications over optical fiber.
Long-Distance Fiber Transmission
The optical architecture supports transmission distances of up to 20km for remote LED display and video network deployments.
10G Optical Connectivity
The product family provides 10G optical interfaces through SC or SFP+ configurations for high-bandwidth video and display network links.
Real-Time Signal Relay
Real-time signal relay supports continuous video transmission with low latency for applications where timely display content delivery is important.
EDID Management
EDID management helps maintain communication between video source equipment and LED display systems for stable display configuration and signal interoperability.
Industrial-Grade Construction
Selected models feature aluminum or metal enclosures, fanless cooling, DIN rail installation, and wide-temperature operation for demanding environments.
Product Specifications
Product Models
CL-LED104G and CL-LED108G
CL-LED104G Interface
4xRJ45 plus 1x10G SC
CL-LED108G Interface
8xRJ45 plus 1x10G SFP+
Optical Bandwidth
10G optical interface
CL-LED104G Power
5~12VDC
CL-LED108G Power
12~48VDC for non-PoE and 48~57VDC for PoE configurations
Maximum Power Consumption
3W for CL-LED104G and 5W for CL-LED108G
CL-LED104G Dimensions
130mm x 106mm x 28mm
CL-LED108G Dimensions
150mm x 115mm x 50mm
Housing
Metal case for CL-LED104G and aluminum case for CL-LED108G
Operating Temperature
-10°C to 55°C for CL-LED104G and -40°C to 75°C for CL-LED108G
MTBF
More than 200,000 hours for the listed models
Model and Interface Options
CL-LED104G
The CL-LED104G provides four RJ45 Ethernet ports and one 10G SC optical interface in a compact metal enclosure. It uses 5~12VDC power, consumes up to 3W, and supports an operating temperature range of -10°C to 55°C.
CL-LED108G

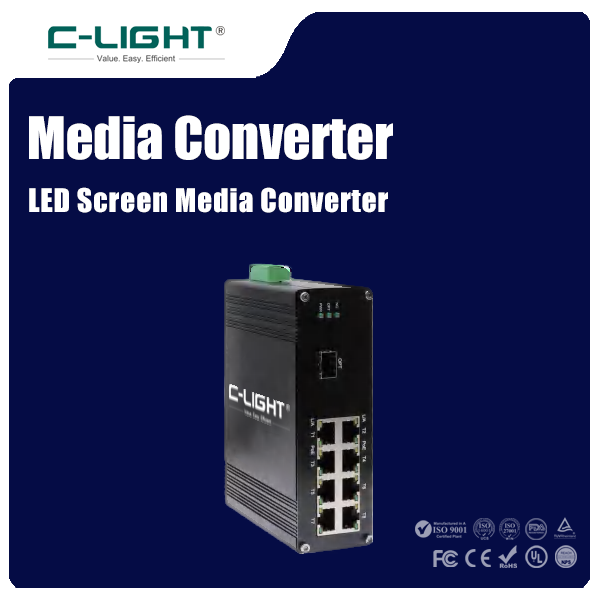

The CL-LED108G provides eight RJ45 Ethernet ports and one 10G SFP+ optical interface. It supports 12~48VDC non-PoE or 48~57VDC PoE power input, up to 5W consumption, and -40°C to 75°C operation.
SC Fiber Interface
The CL-LED104G uses a 10G SC optical interface for direct connection to compatible fiber infrastructure.
SFP+ Fiber Interface
The CL-LED108G uses a 10G SFP+ interface, providing modular optical connectivity for different fiber transceiver requirements.
High-Definition Optical Transmission
Electrical-to-Optical Conversion
The converter transports high-definition video and display data through optical fiber, extending the connection between video source equipment and remote LED displays.
Up to 20km Fiber Reach
Optical transmission can extend to 20km in suitable configurations, supporting distributed display systems across large venues and remote locations.
Low-Latency Transmission
The platform is designed for low-latency real-time signal transport to maintain timely delivery of video content to LED display systems.
Bidirectional Communication
Bidirectional conversion allows optical and electrical signals to be exchanged between connected network and display equipment.
EMI-Resistant Fiber Links
The optical transmission path is resistant to electromagnetic interference, which is valuable in high-power venues and electrically noisy environments.
Multimode and Single-Mode Support
The platform supports both multimode and single-mode fiber applications when matched with suitable optical configurations.
LED Display Network Architecture
Multi-Port Ethernet Access
The available 4-port and 8-port RJ45 configurations provide multiple Ethernet connections for LED display controllers and related network equipment.
10G Fiber Uplink
The 10G SC or SFP+ interface provides high-bandwidth optical connectivity for transporting large volumes of display and video traffic.
Real-Time Display Connectivity
The optical link architecture supports continuous data transport between central video sources and remote LED display installations.
EDID-Based Display Compatibility
EDID management helps coordinate display identification and configuration between the source device and connected LED display system.
Industrial Reliability Design
Rugged Enclosures
Metal and aluminum housings provide durable protection for the converter in commercial, industrial, and outdoor display installations.
Wide Temperature Operation
The CL-LED108G supports -40°C to 75°C operation, while the CL-LED104G supports -10°C to 55°C for different deployment environments.
Fanless Cooling
Selected configurations use fanless thermal management to reduce mechanical maintenance requirements in continuously operating installations.
DIN Rail Installation
Selected industrial configurations support DIN rail mounting for convenient installation in control cabinets and distributed network locations.
Redundant Power Options
Selected models integrate redundant power designs to improve power continuity for critical LED display and video transmission systems.
Long-Term Reliability
The listed CL-LED104G and CL-LED108G models provide an MTBF greater than 200,000 hours.
Applications
Sports Stadiums
Provides long-distance optical connectivity for large LED screens, scoreboards, and high-definition display systems in sports venues.
Live Events
Supports real-time transmission between video processing equipment and LED displays used for concerts, exhibitions, conferences, and other events.
Traffic Control Centers
High-bandwidth optical links support large-format LED displays and monitoring screens in transportation and traffic management environments.
Outdoor Digital Billboards
Long-distance fiber transmission provides a reliable connection between centralized content systems and remotely installed LED advertising displays.
Public Information Displays
The converter can transport high-definition display data to large-format LED screens used in public facilities and commercial locations.
Industrial Visualization Systems
Fiber-based video transmission supports high-definition visualization and monitoring systems operating in environments affected by electromagnetic interference.
Why Choose the LED Screen Fiber Media Converter
The LED Screen Fiber Media Converter combines high-definition video transmission, 10G optical connectivity, long-distance fiber extension, EDID management, and industrial-grade construction in a compact platform. With the CL-LED104G offering 4xRJ45 plus 10G SC and the CL-LED108G offering 8xRJ45 plus 10G SFP+, the product family provides different port and optical interface configurations for LED display systems ranging from event venues to outdoor and transportation applications.
FAQ
Q1. What is an LED Screen Fiber Media Converter?
It is a fiber-based transmission device designed to transport high-definition display and video signals between electrical network equipment and remote LED screens.
Q2. What models are available?
The current product family includes CL-LED104G and CL-LED108G.
Q3. What optical interfaces do the models use?
The CL-LED104G uses a 10G SC optical interface, while the CL-LED108G uses a 10G SFP+ interface.
Q4. What is the maximum fiber transmission distance?
The LED Screen Fiber Media Converter supports fiber transmission distances of up to 20km in suitable configurations.
Q5. Does the series support PoE?
The CL-LED108G specification provides 48~57VDC for PoE configurations, while its non-PoE configuration uses 12~48VDC power input.
LED Screen Fiber Media Converter
Designed for high-definition LED display networks, the LED Screen Fiber Media Converter combines 10G optical connectivity, up to 20km fiber transmission, low-latency real-time signal transport, EDID management, and industrial-grade construction for stadiums, live events, traffic systems, and digital signage.
