Type | Image | Material | Dimensions | Max Capacity | Weight | Color | ||
| CL-TB-ABS-02-xx |  | PC+ABS | A*B*C(mm) 168*102*32 | SC 2 Ports | LC 4 Ports | PLC 1x2(SC) | 0.8kg | Light Gray |
| CL-TB-ABS-04-xx |  | PC+ABS | A*B*C(mm) 186*116*41 | SC 4 Ports | LC 8 Ports | PLC 1x4(SC) | 0.8kg | Light Gray |
| CL-TB-ABS-06-xx |  | PC+ABS | A*B*C(mm) 186*116*41 | SC 6 Ports | LC 12 Ports | PLC 1x4(SC) | 0.8kg | Light Gray |
| CL-TB-ABS-08A-xx |  | PC+ABS | A*B*C(mm) 245*203*69 | SC 8 Ports | LC 16 Ports | PLC 1x8(SC) | 1.2kg | White |
| CL-TB-ABS-08B-xx |  | PC+ABS | A*B*C(mm) 199*160*46 | SC 8 Ports | LC 16 Ports | PLC 1x8(SC) | 1.2kg | Light Gray |
| CL-TB-ABS-08C-xx |  | PC+ABS | A*B*C(mm) 235*200*62 | SC 8 Ports | Modular PLC 1x8(SC) | 1.5kg | Light Gray | |
| CL-TB-SMC-08D-xx |  | SMC | A*B*C(mm) 310*245*85 | SC 8 Ports | Modular PLC 1x8(SC) | 3.5kg | Light Gray | |
| CL-TB-ABS-12A-xx |  | PC+ABS | A*B*C(mm) 235*200*62 | SC 8 Ports | LC 16 Ports | PLC 1x8(SC) | 1.5kg | Light Gray |
| CL-TB-ABS-12B-xx |  | PC+ABS | A*B*C(mm) 250*190*72 | SC 12 Ports | LC 24 Ports | PLC 1x8(SC) | 1.2kg | White |
| CL-TB-SMC-12C-xx |  | SMC | A*B*C(mm) 310*245*85 | SC 12 Ports | LC 24 Port | 3.7kg | Light Gray | |
| CL-TB-ABS-16A-xx |  | PC+ABS | A*B*C(mm) 317*237*101 | SC 16 Ports | Modular PLC 1x16(SC) | 1.5kg | Light Gray | |
| CL-TB-ABS-16B-xx |  | PC+ABS | A*B*C(mm) 292*218*83 | SC 16 Ports | PLC 1x16(SC) | 1.4kg | White/Black | |
| CL-TB-ABS-16C-xx |  | PC+ABS | A*B*C(mm) 301*224*73 | SC 16 Ports | LC 32 Ports | PLC 1x8(SC) | 1.4kg | Light Gray |
| CL-TB-ABS-16D-xx |  | PC+ABS | A*B*C(mm) 301*224*73 | SC 16 Ports | Modular PLC 1x16(SC) | 1.4kg | Light Gray | |
CL-TB-ABS-16E-xx |  | PC+ABS | A*B*C(mm) 330*260*130 | SC 16 Ports | Modular PLC 1x16(SC) | 1.5kg | White | |
| CL-TB-SMC-16F-xx |  | SMC | A*B*C(mm) 380*290*100 | SC 16 Ports | Modular PLC 1x16(SC) | 3.7kg | White | |
| CL-TB-SMC-16G-xx |  | SMC | A*B*C(mm) 420*350*110 | SC 16 Ports | Modular PLC 1x16(SC) | 3.7kg | White | |
| CL-TB-ABS-24A-xx |  | PC+ABS | A*B*C(mm) 317*237*101 | SC 24 Ports | Box PLC 1x16(SC) | Tube PLC 1x8(SC) | 1.5kg | Light Gray |
| CL-TB-ABS-24B-xx |  | PC+ABS | A*B*C(mm) 340*250*110 | SC 24 Ports | PLC 1x16(SC) | 1.5kg | Black | |
| CL-TB-ABS-24C-xx |  | PC+ABS | A*B*C(mm) 330*250*110 | SC 24 Ports | PLC 1x16(SC) | 3.0kg | White | |
| CL-TB-SMC-24D-xx |  | SMC | A*B*C(mm) 380*290*100 | SC 24 Ports | LC 48 Ports | 3.9kg | White | |
| CL-TB-ABS-24E-xx |  | PC+ABS | A*B*C(mm) 330*260*130 | SC 24 Ports | LC 48 Ports | 1.5kg | White | |
| CL-TB-ABS-32A-xx |  | PC+ABS | A*B*C(mm) 120*320*132 | SC 32 Ports | Modular PLC 1x16(SC) 2pcs | 1.5kg | White | |
| CL-TB-SMC-32B-xx |  | SMC | A*B*C(mm) 390*288*160 | SC 32 Ports | Modular PLC 1x32(SC) | 4.7kg | White | |
| CL-TB-SMC-32C-xx |  | SMC | A*B*C(mm) 390*288*110 | SC 32 Ports | Modular PLC 1x16(SC) 2pcs | 4.5kg | White | |
| CL-TB-ABS-36-xx |  | PC+ABS | A*B*C(mm) 400*310*125 | SC 32 Ports | 3.2kg | White | ||
| CL-TB-ABS-48-xx |  | PC+ABS | A*B*C(mm) 400*310*125 | SC 48 Ports | 3.2kg | White | ||

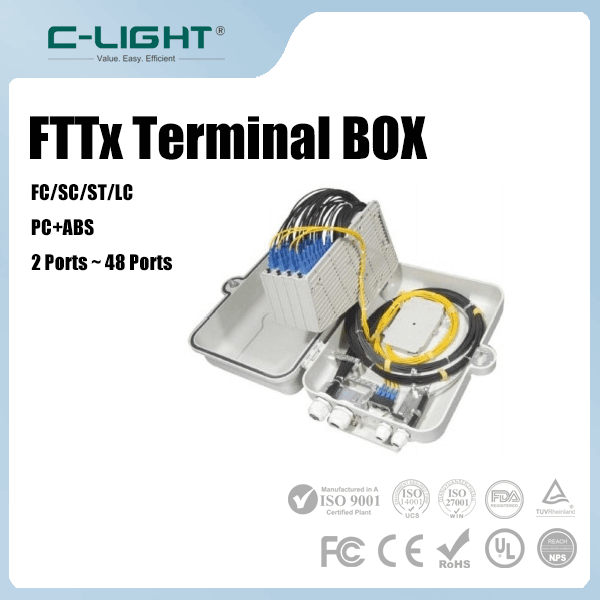

C-LIGHT FTTX Terminal Box is designed for fiber termination, splicing, distribution, and protection in FTTx access networks. It provides a compact and organized enclosure for managing optical fiber connections between feeder cables, distribution fibers, splitters, and customer-side equipment.
The product family includes different capacities, enclosure materials, connector configurations, and installation formats for indoor and outdoor deployments. With options ranging from compact 2-port units to high-capacity 48-port models, C-LIGHT FTTX Terminal Box can be adapted to residential access, building distribution, telecom, and 5G fiber infrastructure.
Provides a dedicated enclosure for terminating and organizing optical fibers, helping create a clear connection point between incoming cables and downstream fiber links.
Configurations are available for different network sizes, covering compact 2-port and 4-port solutions as well as 8, 12, 16, 24, 32, 36, and 48-port models.
Selected models support integrated PLC splitters, including 1x2, 1x4, 1x8, 1x16, and 1x32 configurations for passive optical signal distribution.
Different enclosure constructions are available for indoor installations and demanding outdoor environments, allowing the terminal box to match the deployment conditions.
Configurations support commonly used optical interfaces such as SC and LC, while the product family can also be adapted to different fiber connection architectures.
The enclosure provides an organized space for fiber routing, termination, and connection management without requiring a large installation footprint.
Smaller configurations such as 2-port, 4-port, and 6-port models are suitable for low-density fiber termination points and compact access network installations.
8-port, 12-port, and 16-port configurations provide additional space for fiber distribution and can support integrated or modular PLC splitter options.
24-port, 32-port, 36-port, and 48-port configurations are designed for higher-density fiber distribution in buildings, access networks, and telecom facilities.
Models with integrated or modular PLC splitters provide a combined solution for fiber termination and passive optical signal splitting in PON deployments.
C-LIGHT FTTX Terminal Box models use enclosure materials such as PC+ABS and SMC according to the selected configuration. PC+ABS models provide a practical balance of strength, weight, and installation flexibility, while SMC configurations are available for larger and more demanding terminal box designs.
Selected outdoor models feature IP68 protection against dust and water and are designed for harsh environmental conditions. Outdoor configurations can also provide UV resistance and a wide operating temperature range from -40°C to 85°C, making them suitable for exposed fiber access installations.
Wall-mounted configurations are suitable for indoor communication rooms, building fiber distribution points, residential installations, and other fixed access locations.
Selected outdoor terminal box designs can be installed in aerial fiber networks where compact and protected fiber termination is required.
Outdoor models can be used at pole-mounted fiber distribution points to provide an accessible enclosure for fiber connections and passive optical components.
Indoor configurations can be integrated into different equipment environments where organized fiber termination and distribution are required.
Used at fiber access points in residential networks to terminate feeder fibers, manage distribution connections, and support passive optical splitting.
Provides a practical fiber distribution point for buildings, helping connect backbone fibers with individual floors, rooms, or downstream access equipment.
Supports fiber termination and distribution in antenna and wireless infrastructure where protected optical connections are required near network equipment.
Can be deployed around 5G base stations, small cells, and fiber aggregation points to organize dense optical connections in access and transport networks.
Provides fiber termination and distribution for telecom access networks, central offices, feeder cables, and broadband infrastructure.
Can be used in fiber-based CATV infrastructure where optical fiber termination, distribution, and passive signal management are required.
C-LIGHT provides a broad selection of FTTX Terminal Box configurations covering different port counts, enclosure materials, connector options, and PLC splitter arrangements. This makes it easier to select a terminal box according to the required fiber density and installation environment.
The product range supports both compact indoor fiber termination and larger outdoor distribution applications. Different enclosure designs provide flexibility for wall-mounted, aerial, pole-mounted, rack-mounted, and other deployment requirements.
C-LIGHT also provides customized product services for different industries and project requirements, together with technical support and quality assurance. Products are subject to initial testing, final testing, and factory inspection as part of a three-step quality control process.
Select the port and fiber capacity according to the number of connections required at the distribution point and the expected network expansion.
Indoor applications can use compact terminal boxes, while outdoor deployments should consider environmental protection, enclosure material, and operating temperature requirements.
If passive optical splitting is required, select a configuration with an integrated or modular PLC splitter that matches the required splitting ratio.
Choose the appropriate SC or LC configuration according to the fiber patching system, optical equipment, and existing network infrastructure.
An FTTX Terminal Box is an enclosure used for optical fiber termination, splicing, distribution, and protection in fiber access networks such as FTTH, FTTB, and FTTA.
C-LIGHT provides multiple configurations ranging from compact 2-port models to higher-capacity 48-port terminal boxes, depending on the selected product.
Yes. Selected C-LIGHT models support integrated or modular PLC splitters with configurations such as 1x2, 1x4, 1x8, 1x16, and 1x32.
Yes. Selected outdoor models are designed for harsh environments and can provide IP68 protection, UV resistance, and an operating temperature range of -40°C to 85°C.
Depending on the model, C-LIGHT uses materials such as PC+ABS and SMC for the enclosure construction.
Different models support SC and LC configurations, while the overall product family can be selected according to the required fiber connection architecture.
Depending on the model, installation options include wall-mounted, aerial, pole-mounted, rack-mounted, and desktop environments.
Yes. C-LIGHT provides customized product services according to different fiber capacities, connector configurations, splitter requirements, and application environments.
C-LIGHT FTTX Terminal Box solutions provide a practical way to organize fiber termination, splicing, distribution, and passive optical splitting. With multiple capacities, materials, connector configurations, and installation options, they can support FTTH, FTTB, FTTA, 5G, telecom, and CATV fiber infrastructure.
