| Connector | Components | Fiber Type | Core | Sleeve Material | Note |
| MPO/F-SC/FC/LC/ST | SM G657A2 | 8 | PVC |
| |
| SANWA | OFNR | ||||
| 12 | OFNP | ||||
| NISSIN | LSZH | ||||
| 24 | |||||
| SENKO | |||||
| MM OM3/150 | 8 | ||||
| 12 | |||||
| 24 | |||||
| MM OM3/300 | 8 |
| |||
| 12 | |||||
| 24 | |||||
| MM OM4/550 | 8 | ||||
| 12 | |||||
| 24 | |||||

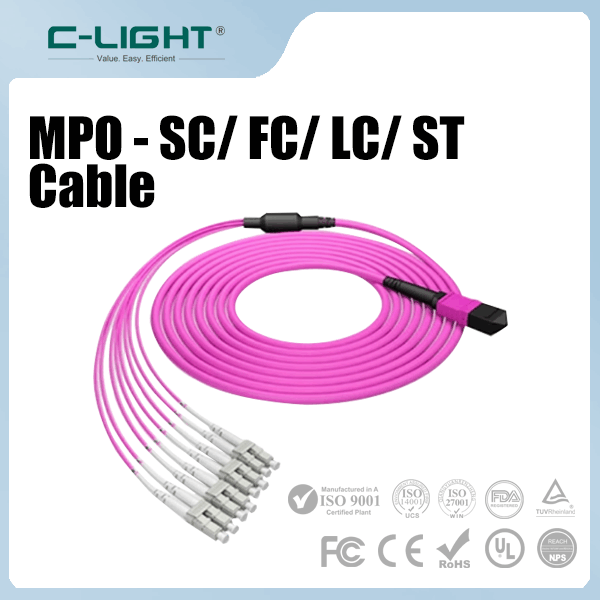

C-LIGHT MPO SC/FC/LC/ST Hybrid Fiber Optic Components are designed to connect high-density MPO fiber systems with optical equipment using conventional SC, FC, LC, or ST interfaces. By combining a multi-fiber MPO connection with different single-fiber connector options, the assembly provides a practical way to integrate high-density cabling with existing optical infrastructure.
MPO technology consolidates multiple optical channels into a single compact interface, making it suitable for parallel optical transmission and structured fiber distribution. The SC, FC, LC, and ST connector options on the opposite side allow the same fiber architecture to interface with equipment using different connector standards.
C-LIGHT offers both single-mode and multimode configurations. Single-mode versions use G657A2 fiber, while multimode options include OM3/150, OM3/300, and OM4/550. Available fiber counts include 8, 12, and 24 cores.
Different cable jacket materials are available, including PVC, OFNR, OFNP, and LSZH. This allows the MPO hybrid assembly to be selected according to the installation environment, cabling regulations, and project requirements.
MPO provides a compact multi-fiber interface that consolidates multiple optical channels into one connection point.
MPO-to-SC configurations provide compatibility with optical equipment and distribution systems using the widely adopted SC interface.
MPO-to-FC assemblies combine high-density MPO connectivity with the threaded FC interface used in many telecom and industrial environments.
MPO-to-LC configurations provide a compact breakout solution for high-density equipment and rack-based optical connections.
MPO-to-ST assemblies support legacy and specialized fiber networks where ST connectors remain part of the installed infrastructure.
Multiple fiber-count options allow the assembly to match different optical channel requirements.
Single-mode G657A2 and multimode OM3/OM4 configurations provide flexibility for different transmission systems.
The product specification lists a maximum insertion loss of 0.5 dB for the supported hybrid fiber configurations.
MPO hybrid assemblies can simplify high-density fiber distribution between patching systems and network equipment in data centers.
Multi-fiber MPO connectivity can support parallel optical architectures used by high-speed Ethernet systems and optical transceivers.
The hybrid connector structure provides a convenient interface between high-density fiber systems and OTN equipment with conventional optical ports.
Single-mode MPO hybrid configurations can be incorporated into telecom backbone and optical distribution infrastructure.
MPO-to-SC, FC, LC, or ST assemblies help integrate new high-density cabling with existing connector infrastructure during network upgrades.
The connector combinations provide a practical solution where different optical connector standards need to operate within the same fiber network.
MPO-based connections can be used around compatible high-speed optical modules and structured fiber distribution systems.
Different connector configurations allow the product to serve enterprise environments containing both modern high-density links and legacy fiber equipment.
Provides a multi-fiber-to-SC connection for optical systems using SC interfaces on the equipment or distribution side.
Combines the density of MPO cabling with FC connector interfaces for compatible telecom and industrial applications.
Creates a compact MPO-to-LC breakout arrangement for rack-mounted equipment and high-density network environments.
Provides an MPO-to-ST connection for applications that need to integrate modern multi-fiber cabling with ST-based systems.
The 8-core configuration is suited to installations requiring a smaller number of parallel optical channels.
The 12-core option provides a commonly used multi-fiber arrangement for structured optical connectivity.
The 24-core version increases fiber capacity for high-density network distribution and larger optical systems.
Available fiber choices include G657A2 single-mode and OM3/150, OM3/300, and OM4/550 multimode configurations.
MPO technology brings multiple optical fibers together in a compact connector format, helping reduce physical cabling complexity.
SC, FC, LC, and ST options make it easier to connect MPO-based infrastructure with equipment using different optical interfaces.
The hybrid architecture can help bridge existing fiber infrastructure with newer high-density optical cabling during network modernization.
Single-mode and multimode options cover a wide range of data center, telecom, enterprise, and optical equipment requirements.
8-, 12-, and 24-fiber versions provide different capacity levels without requiring a completely different cabling platform.
PVC, OFNR, OFNP, and LSZH jacket materials provide choices for different installation and safety requirements.
The listed maximum insertion loss of ≤0.5 dB supports efficient optical connectivity across the supported assemblies.
C-LIGHT states that products undergo initial testing, final testing, and factory inspection through a three-step quality-control process.
They are fiber assemblies that combine an MPO multi-fiber connector with SC, FC, LC, or ST interfaces to connect high-density fiber systems with equipment using conventional optical connectors.
MPO consolidates multiple optical fibers into a single compact connector, helping support high-density parallel fiber connections and organized structured cabling.
C-LIGHT provides MPO configurations with SC, FC, LC, and ST connector options.
The product family supports G657A2 single-mode fiber and multimode OM3/150, OM3/300, and OM4/550 configurations.
Available configurations include 8, 12, and 24 fibers.
The listed options include PVC, OFNR, OFNP, and LSZH jacket materials.
The product specification lists a maximum insertion loss of ≤0.5 dB.
Yes. C-LIGHT provides personalized fiber-optic cabling solutions based on connector combination, fiber type, fiber count, cable construction, and deployment requirements.
C-LIGHT MPO SC/FC/LC/ST Hybrid Fiber Optic Components provide a practical connection between high-density MPO fiber infrastructure and optical equipment using SC, FC, LC, or ST interfaces. With G657A2 single-mode and OM3/OM4 multimode fiber options, 8-, 12-, and 24-fiber configurations, and multiple jacket materials, the product family can adapt to a wide range of structured cabling architectures. These hybrid assemblies are particularly useful for data centers, telecom backbone networks, OTN equipment, enterprise fiber systems, and network migration projects where different connector technologies need to work together.
