Indoor Armored Fiber Cable | ||||||||
Type | Image | Fiber Core | Outer Diameter (mm) | Weight (kg/km) | Min bend radius At work(mm) | Max tensile force Short-term(N) | Max tensile force long-term(N) | Max flattening force (N/100mm²) |

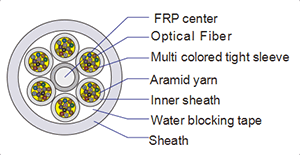

CL-ID-AC01-16-xx | ![]() | 16 | 13 | 170 | 20 D | 1000 | 300 | 1000 |
CL-ID-AC01-24-xx | 24 | 15.5 | 180 | 20 D | 1000 | 300 | 1000 | |
CL-ID-AC01-36-xx | 36 | 19 | 210 | 20 D | 1300 | 400 | 1000 | |
CL-ID-AC01-48-xx | 48 | 20 | 250 | 20 D | 1300 | 400 | 1000 | |
CL-ID-AC01-72-xx | 72 | 21 | 300 | 20 D | 1300 | 400 | 1000 | |
CL-ID-AC01-96-xx | 96 | 25 | 460 | 20 D | 1300 | 400 | 1000 | |

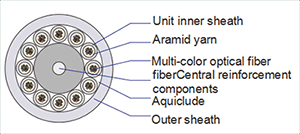

CL-ID-AC02-02-xx | ![]() | 2 | 7.0 | 45 | 20 D | 1500 | 600 | 1000 |
CL-ID-AC02-04-xx | 4 | 7.0 | 46 | 20 D | 1500 | 600 | 1000 | |
CL-ID-AC02-06-xx | 6 | 8.3 | 62 | 20 D | 1500 | 600 | 1000 | |
CL-ID-AC02-08-xx | 8 | 9.5 | 86 | 20 D | 1500 | 600 | 1000 | |
CL-ID-AC02-12-xx | 12 | 12 .2 | 140 | 20 D | 1500 | 600 | 1000 | |
CL-ID-AC02-16-xx | 16 | 16.5 | 200 | 20 D | 1500 | 600 | 1000 | |
CL-ID-AC02-24-xx | 24 | 23.8 | 260 | 20 D | 1500 | 600 | 1000 | |

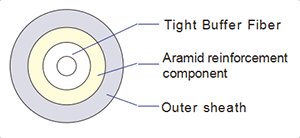

CL-ID-AC03-1-1.6 | ![]() | 1 | 1.6 | 2 .9 | 20 D | 80 | 40 | 500 |
CL-ID-AC03-1-1.8 | 1 | 1.8 | 3.2 | 20 D | 80 | 40 | 500 | |
CL-ID-AC03-1-2.0 | 1 | 2.0 | 3.5 | 20 D | 100 | 60 | 500 | |
CL-ID-AC03-1-2.4 | 1 | 2.4 | 5 | 20 D | 100 | 60 | 500 | |
CL-ID-AC03-1-3.0 | 1 | 3.0 | 6.8 | 20 D | 150 | 80 | 500 | |

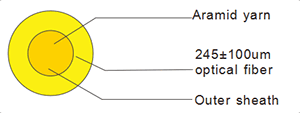

CL-ID-AC04-1-xx | ![]() | 1 | 2.83-2.91 | 6.9 | 20 D | 80 | 50 | 500 |
Outdoor Armored Fiber Cable | ||||||||
Type | Image | Fiber Core | Outer Diameter (mm) | Weight (Kg/km) | Min bend radius At work(mm) | Max Operating Tension(N) | Max Tensile Resistance(N) | Young's Modulus N/100mm²(Short-term) |
CL-OD-AC02-02-xx | ![]() | 2 | 8.0±0 .3 | 62 | 20 D | 1500 | 500 | 3000 |
CL-OD-AC02-04-xx | 4 | 8.0±0 .3 | 62 | 20 D | 1500 | 500 | 3000 | |
CL-OD-AC02-06-xx | 6 | 8.0±0 .3 | 62 | 20 D | 1500 | 500 | 3000 | |
CL-OD-AC02-08-xx | 8 | 8.0±0 .3 | 62 | 20 D | 1500 | 500 | 3000 | |
CL-OD-AC02-12-xx | 12 | 8.0±0 .3 | 62 | 20 D | 1500 | 500 | 3000 | |

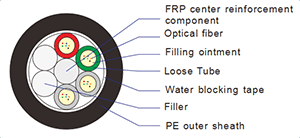

CL-OD-AC03-60 | ![]() | 2~60 | 9.8±0 .5 | 88 | 20 D | 1500 | 600 | 1000 |
CL-OD-AC03-72 | 60~72 | 10.5±0 .5 | 102 | 20 D | 1500 | 600 | 1000 | |
CL-OD-AC03-96 | 74~96 | 12.0±0 .5 | 130 | 20 D | 1500 | 600 | 1000 | |
CL-OD-AC03-120 | 98~120 | 13.2±0 .5 | 156 | 20 D | 1500 | 600 | 1000 | |
CL-OD-AC03-144 | 122~144 | 15.0±0 .5 | 180 | 20 D | 1500 | 800 | 1000 | |

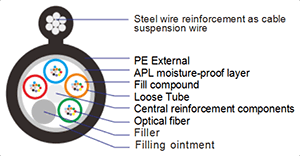

CL-OD-AC04-30 | ![]() | 2~30 | 9.6x21 | 204 | 20 D | 1500 | 600 | 1000 |
CL-OD-AC04-36 | 32~36 | 10.2x21 .5 | 244 | 20 D | 1500 | 600 | 1000 | |
CL-OD-AC04-60 | 38~60 | 11 .5x23 | 296 | 20 D | 1500 | 600 | 1000 | |
CL-OD-AC04-72 | 62~72 | 12 .0x23.4 | 340 | 20 D | 1500 | 600 | 1000 | |
CL-OD-AC04-96 | 74~96 | 14 .2x25.6 | 385 | 20 D | 1500 | 800 | 1000 | |
Outdoor Armored Fiber Cable | ||||||||
Type | Image | Fiber Core | Outer Diameter (mm) | Weight (Kg/km) | Daily Operating Tension(KN) | Max Operating Tension(KN) | Max Tensile Resistance(KN) | Young's Modulus KN/ mm² |

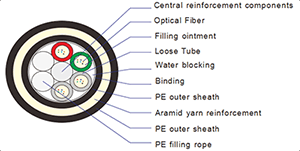

CL-OD-AC01-12-AT | ![]() | 12 | 12 .5±0.5 | 125 | 1 .5 | 4 | 10 | 7 .6 |
CL-OD-AC01-24-AT | 24 | 12 .5±0.5 | 125 | 1 .5 | 4 | 10 | 7 .6 | |
CL-OD-AC01-12-PE | 12 | 12 .5±0.5 | 125 | 1 .5 | 4 | 10 | 7 .6 | |
CL-OD-AC01-24-PE | 24 | 12 .5±0.5 | 125 | 1 .5 | 4 | 10 | 7 .6 |
●100% of products pass initial test, final test and factory inspection.
●3-step quality control management process.
●100% complete implementation of customer order quality requirements.
●100% guarantee of customer product data information security.
Please contact us to download the certification certificate.
