OLP Optical Line Protection System | ||||
The OLP optical line protection subsystem launched by C-Light Network communication Co., Ltd.is based on the advanced development of optical switch technology. It’s an automatic monitoring and protection system independent of communication transmission system and completely based on the physical link of optical cable. The system can automatically switch the signal to the optical fiber of the protection path when performance deterioration or blocking of work path is detected. In this way, an optical communication network with high reliability, safety, flexibility and strong disaster resistance is established. | ||||
Product Feature | Product Diagram | |||
lApplicable to all kinds of optical communication system lSupport line protection of dual fiber and single fiber transmission network lSupport multiple working modes of automatic or manual switching lSupporting real-time monitoring of main and backup routes lFast response: switching time<20ms<> lSupport automatic non-return and automatic return functions, automatic return time can be set to adapt to a variety of application scenarios lSupport panel button operation. The system can be operated by button on site without management card. lOLP card and network management card are independent of each other and have no influence on each other | CL-OTN-3900 1RU: 442 (W)×350 (D) ×44 (H)mm | |||
CLOLP-xxx-L 1RU:442 (W)×250 (D) ×44 (H) mm | ||||
lSupport multi-kinds of gra phical interface network management, such as SNMP, Web lSupport power-off and power-on retention functions lSupport AC power 220V, DC power -48V, and 1+1 power input protection | ||||
Product Specification | ||||
Function | Parameter | |||
Working wavelength range | 1260nm ~ 1650nm | |||
OLP type | OLP-1:1 | OLP-1+1 | OLP-1-1 | OLP-BIDI |
Switching time | <35ms | <15ms | <15ms | <15ms |
Main path loss | <4dB | <1.3dB | <1.3dB | <5.5dB |
Backup path loss | <1.2dB | <1.3dB | <1.3dB | <5.5dB |
Monitoring power range | -50 dBm ~+25dBm | |||
Working temperature range | -10℃~60℃ | |||
Working humidity range | 5%~95% no condensation | |||
Storage temperature | -40℃~85℃ | |||
Equipment dimension | CL-OTN-3900 1RU: 442(W)×350(D)×44(H)mm CLOLP-xxx-L1RU:442 (W)×250 (D) ×44 (H)mm | |||
Network management | Support multi-kinds of graphical interface network management, such as SNMP, Web | |||
Optical interface | LC/UPC | |||
Power supply | AC: 90 ~ 260V or DC: -72~ -36 V (support 1+1 power input backup) | |||
Typical power consumption | Full configuration<30w | |||
Heat dissipation | Fan cooling | |||
MTBF | >100000 hours | |||
OBP Optical Bypass Protection System | ||||

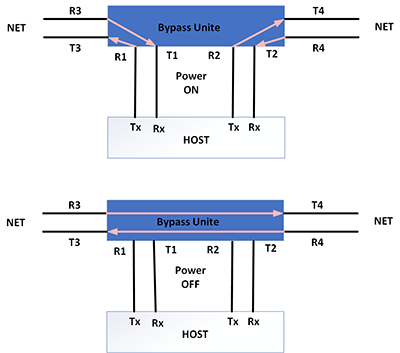

The OBP optical bypass protection subsystem (Bypass) is an intelligent optical path switching system. It belongs to the physical layer equipment and is applied to pure optical network environment. It can automatically identify the power supply status and optical signal output status of network nodes. When the local optical equipment fails (including power interruption, hardware or software failures), it can instantaneously switch to the bypass optical path, and the communication line will bypass the local equipment (i.e. the fault node), thus avoiding the total resistance obstacle caused by the fault node and ensuring the normal system connectivity. | ||||
Function | Parameter | |||
lApplicable to all kinds of gateway equipment, such as DPI equipment, firewall, IPS, UTM, IDP, spam gateway, anti-virus gateway, special DDos equipment, special logic isolation equipment in all fields, etc. lSupport power-off and power-on retention function: Bypass equipment’s power-off or power-on, does not affect the switching status of work routing to ensure the normal operation, and has hot-swap function. lUnique power storage function to ensure that no .wrong switch occurs even when the bypass equipment itself is power off. lAutomatic instantaneous switch to fault nodes without human intervention, switching time < 20ms. lOBP card and network management card are independent of each other and have no influence on each other lSupport multi-kinds of graphical interface network management, such as SNMP, Web lSupport AC power 220V, DC power -48V, and 1+1 power input protection | CL-OTN-2900 1RU: 442 (W)×280 (D) ×44 (H) mm | |||
![]() | ||||
Product Specification | ||||
Function | Parameter | |||
Working wavelength range | 850nm、1260nm ~ 1650nm | |||
OBP type | OBPA (dual fiber 1+1 protection) | OBPB (dual fiber 1:1 protection) | ||
Switching time | <20ms | <20ms | ||
Introduction loss | Cascade | <3.5dB (typical 50%: 50% splitter) | <1.5dB | |
Bypass | <4.5dB (typical 50%: 50% splitter) | <1.5dB | ||
Monitoring power range | -50 dBm ~+23dBm | |||
Working temperature range | -10℃~60℃ | |||
Working temperature range | 5%~95% no condensation | |||
Storage temperature | -40℃~85℃ | |||
Equipment dimension | OSP2900 1RU:442(W)×280 (D) ×44 (H) mm | |||
Network management | Support multi-kinds of graphical interface network management, such as SNMP, Web | |||
Optical interface | LC/UPC | |||
Power supply | AC: 90 ~ 260V or DC: -72~ -36 V(support 1+1 power input backup) | |||
Typical power consumption | Full configuration<25w<> | |||
Heat dissipation | Fan cooling | |||
MTBF | >100000 hours |
