FTTR Slave ONU丨C-LIGHT

FTTR Slave ONU

FTTR Slave ONU (Fiber to the Room Slave Optical Network Unit) is a terminal device in FTTR all-optical networking architecture, functioning as an extension unit of the Master ONU. Connected via fiber or optical splitters to the master device, it converts optical signals to electrical signals and distributes them to in-room terminals (e.g., Wi-Fi 6/7 APs, smart devices). Leveraging PON technologies (e.g., GPON/XG-PON), it supports plug-and-play operation, high bandwidth (symmetric 10Gbps+), and low-latency transmission, with an embedded management module enabling coordinated networking with the Master ONU to ensure seamless roaming and balanced signal coverage. Deployed in multi-room scenarios like residences and enterprises, FTTR Slave ONU simplifies cabling complexity using invisible fibers or pre-connectorized solutions, enhancing user experience. It is a key enabler for extending gigabit optical networks to high-bandwidth applications such as ultra-HD video and VR/AR.

3-year warranty

Long term maintenance

Technical Support

Professional free technical guidance

100% detection

Each module is 100% tested

Spot stock

Always in stock, short delivery time

Technical Support

Tel：+86 158 1857 3751

Online Consultation

Product Details

Support & Service

Quality Inspection

Quality Certification

Product Details

Type	Model	Wifi	Demension	Power Consumption	Interface	Operating Temperature

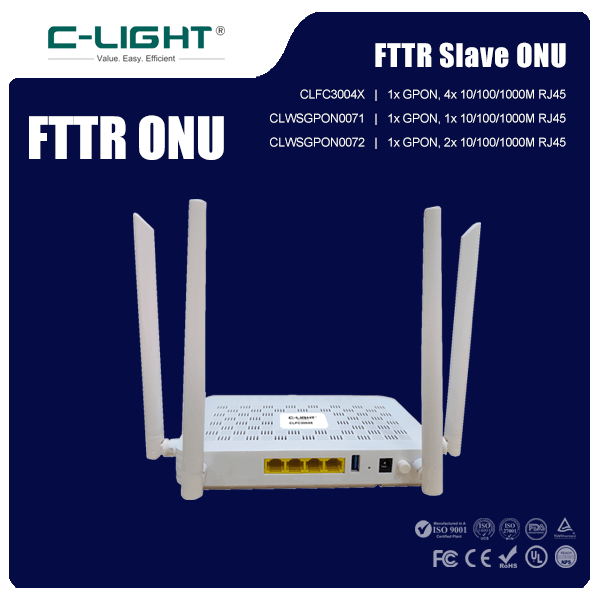

Slave ONU	CLFC3004X	WiFi6 3000Mbps(2.4GHz/5GHz)	185mm130mm26mm	≤8W	1* XGPON 4*10/100/1000M RJ45	-5°C～45°C
Slave ONU	CLWSGPON0071	WiFi6 3000Mbps(2.4GHz/5GHz)	80mm80mm43mm	≤8W	1* XGPON 1*10/100/1000M RJ45	0°C～45°C
Slave ONU	CLWSGPON0072	WiFi6 3000Mbps(2.4GHz/5GHz)	175mm175mm35mm	≤8W	1* XGPON 2*10/100/1000M RJ45	0°C～45°C

Support&Service

Customization

- 01 -

Customization

C-LIGHT R&D and sales provide various personalized product customization services for customers in different industries.

C-LIGHT ensures good product quality and quality assurance through a series of effective measures.

C-LIGHT provides professional pre-sales and after-sales services, including product certification qualifications, product reports, and free technical support.

C-LIGHT provides an excellent production environment to ensure that products can meet customer needs.

- 04 -

Quality inspection

●100% of products pass initial test, final test and factory inspection.

●3-step quality control management process.

●100% complete implementation of customer order quality requirements.

●100% guarantee of customer product data information security.

Quality certification

Please contact us to download the certification certificate.

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.
