| Ref.Pic. | Name | Note | Ref.Pic. | Name | Note |
| LC/UPC Sinlge Key SM | B Class |  | LC/APC Sinlge Key SM | B Class |
| LC/UPC Duel Key SM | A Class |  | LC/APC Duel Key SM | A Class |
| LC/UPC Sinlge Key MM | B Class |  | LC/UPC Duel Key MM | A Class |
 | SC/UPC Metal SM | B Class |  | SC/APC Metal SM | B Class |
 | SC/UPC Plastic SM | A Class |  | SC/APC Plastic SM | A Class |
 | SC/UPC Metal MM | B Class |  | SC/UPC Plastic MM | A Class |
 | FC/UPC SM | B Class |  | FC/APC SM | B Class |
 | FC/UPC MM | B Class |  | ST/UPC MM | B Class |
 | ST/UPC SM | B Class |  | E2000/UPC SM | B Class |
 | MU/UPC SM | B Class |  | E2000/APC SM | B Class |

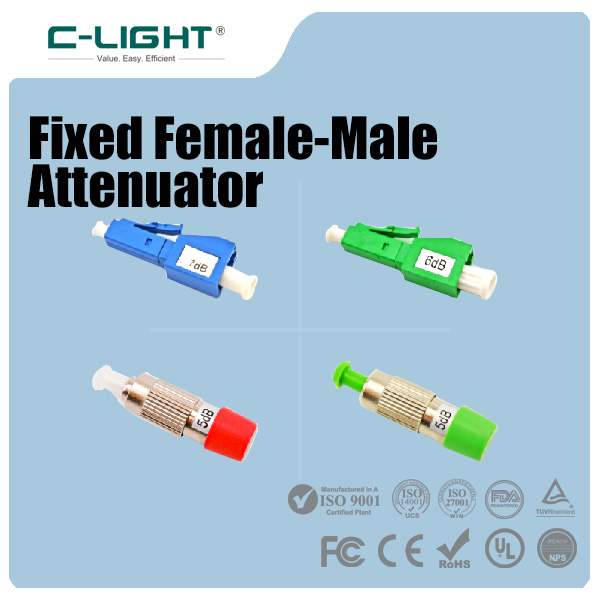

C-LIGHT Fixed Female Male Attenuator is a fiber optic attenuator with fixed female/male connector configurations, designed to precisely control optical signal intensity in fiber-optic communication systems. By providing a predetermined attenuation level together with convenient connector interfaces, it offers a practical solution for optical power management, link matching, testing, and network deployment. C-LIGHT provides multiple connector types and single-mode or multimode configurations to support different fiber optic applications.
The attenuator provides a predetermined optical attenuation value to reduce excessive optical power and maintain suitable signal levels within fiber optic links.
The integrated female/male connector configuration provides a convenient interface for direct connection between compatible fiber optic components and equipment.
C-LIGHT supports LC, SC, FC, ST, E2000, and MU connector configurations to accommodate different fiber optic network architectures.
Available configurations include SM and MM options, allowing the attenuator to be selected according to the fiber type used in the optical system.
Selected configurations are available with UPC or APC interfaces, providing flexibility for different connector and optical link requirements.
The fixed attenuator provides a simple passive approach to optical power control without requiring electronic control or dynamic adjustment.
Available LC configurations include LC/UPC and LC/APC options for single-mode applications, as well as LC/UPC configurations for multimode systems.
SC configurations are available with UPC or APC interfaces and metal or plastic construction options for different SM and MM deployment requirements.
FC/UPC and FC/APC configurations are available for single-mode applications, while FC/UPC is also offered for multimode fiber systems.
ST/UPC configurations are available for both single-mode and multimode applications where compatible ST interfaces are required.
E2000/UPC, E2000/APC, and MU/UPC configurations provide additional interface choices for specialized single-mode fiber connectivity.
Selected LC configurations include single-key and dual-key designs, providing additional mechanical interface options for compatible equipment and cabling systems.
A Fixed Female Male Attenuator reduces optical signal power by introducing a predetermined amount of optical loss into the fiber link. Unlike variable attenuators, its attenuation level is fixed after selection, making it suitable for applications where a stable optical power reduction is required. The female/male connector structure also allows the attenuator to be installed directly between compatible optical interfaces without requiring a separate patching arrangement.
The attenuator can reduce excessive received optical power and help maintain the signal level within the operating range of optical equipment.
Fixed attenuation can be introduced into optical links when the transmitted optical power needs to be matched with the loss and receiver requirements of the system.
Fixed attenuation provides a repeatable optical loss condition for fiber link testing, equipment evaluation, and optical performance verification.
Multiple connector and fiber configurations make the attenuator suitable for telecom networks, data communication systems, and fiber optic infrastructure.
SM configurations support optical communication links using single-mode fiber where controlled and stable attenuation is required.
MM configurations provide fixed optical attenuation for compatible multimode networks, testing platforms, and equipment interfaces.
The Fixed Female Male Attenuator provides a predetermined attenuation level, making it suitable for links with stable optical power requirements.
The female/male connector design allows convenient installation between compatible optical interfaces without requiring a separate variable adjustment mechanism.
The attenuator operates as a passive optical component and does not require electronic control or an external power source for attenuation adjustment.
Variable attenuators are preferred when attenuation must be changed during testing or operation, while fixed attenuators are better suited to stable, predetermined optical loss.
C-LIGHT offers LC, SC, FC, ST, E2000, and MU configurations to simplify selection for different optical interfaces.
Single-mode and multimode configurations are available for different fiber optic communication and testing environments.
Selected connector configurations support UPC and APC interfaces, providing additional flexibility for optical network deployment.
Metal and plastic SC configurations, together with single-key and dual-key LC options, provide practical choices for different installation requirements.
C-LIGHT states that 100% of products pass initial testing, final testing, and factory inspection through a three-step quality control management process.
C-LIGHT provides professional technical guidance and support for product selection, optical network deployment, and application requirements.
A Fixed Female Male Attenuator is a fiber optic attenuator with fixed female/male connector interfaces, designed to reduce optical signal intensity by a predetermined amount.
C-LIGHT provides LC, SC, FC, ST, E2000, and MU connector configurations, with selected models supporting UPC and APC interfaces.
Yes. C-LIGHT provides both SM and MM configurations across different connector types to support different fiber optic systems.
A fixed attenuator provides a predetermined attenuation value, while an adjustable attenuator allows the optical attenuation level to be changed according to testing or system requirements.
The female/male configuration provides a convenient interface for connecting compatible optical components directly, helping simplify installation and optical link matching.
It can be used for optical power management, fiber link matching, optical network testing, telecom systems, data communication networks, and other applications requiring stable fixed attenuation.
C-LIGHT Fixed Female Male Attenuator provides stable optical power reduction with convenient connector interfaces and a wide range of SM and MM configurations. With LC, SC, FC, ST, E2000, and MU options, it offers a practical solution for optical power management, fiber link matching, testing, and network deployment.
