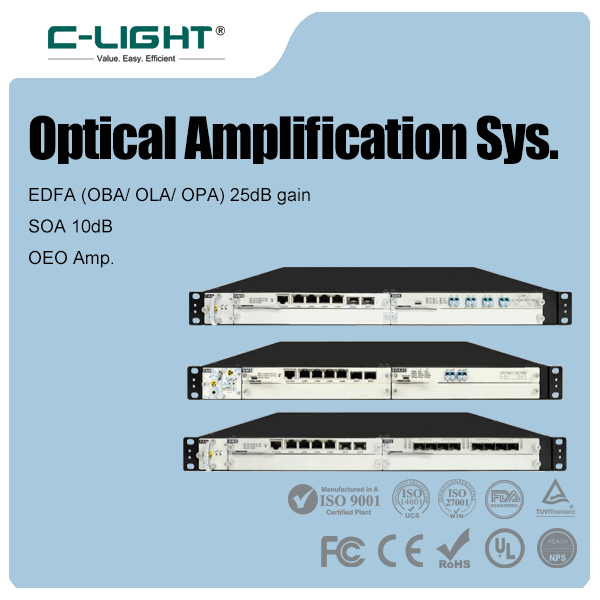

Optical Amnlfication Sys.

C-LIGHT Optical Amplification Systems are critical technologies that enhance optical signals using Erbium-Doped Fiber Amplifiers (EDFA), Semiconductor Optical Amplifiers (SOA), and Raman amplifiers. Widely applied in telecommunications, medical imaging, and scientific research, these systems enable long-distance signal transmission with low noise and minimal loss. Recent advancements focus on high efficiency, compact designs, and expanded wavelength coverage to support 5G networks, data centers, and high-speed fiber optics. Key features include signal integrity maintenance and compatibility with emerging technologies like quantum communications. Their evolution continues to drive innovations in laser-based systems and ultra-high-bandwidth optical infrastructure.

3-year warranty

Long term maintenance

Technical Support

Professional free technical guidance

100% detection

Each module is 100% tested

Spot stock

Always in stock, short delivery time

Technical Support

Tel：+86 158 1857 3751

Online Consultation

Product Details

Support & Service

Quality Inspection

Quality Certification

Product Details

OEO Optical Relay Amplification System
The OEO optical relay amplification subsystem,adopts the clock and data recovery (CDR) chip design with the highest performance and flexibility in the industry. It can perfectly realize the function of optical signal regeneration and amplification, signal cleaning and shaping with features of highly compact structure, flexible configuration and low power consumption.The system support the relay amplification of optical signals at any rate between 100M~100G with all modes and is widely applied in the field of operators, private networks and information systems.
Product Feature			Product Diagram
lSupport the optical relay amplification of services at any rates, such as SDH/SONET, POS, GE, 10GE, 40GE, 100GE and so on lSupport optical signal conversion of single mode and multi-mode, single and dual fiber and wavelength conversion l1U platform supports as most 24 services amplifying at rate of 155M~10G or 18 service amplifying at rate of 40G~100G lAdopt modular design with flexible configuration of each OEO function card and excellent scalability lSupport multi-kinds of graphical interface network management,such as SNMP,Web			CL-OTN-3900 1RU：442 (W)×350(D) ×44 (H)mm
			lSupport ALS function to extend the laser lifespan and avoid the damage to humans from laser leakage lSupport AC power 220V, DC power -48V, and 1+1 power input protection lFree of configuration installation and support plug and play.All the optical interfaces are pluggable to reduce the spare parts cost
Product Specification
Function		Description
Working wavelength range		Multi-mode 850nm, single mode 1260nm~1650nm, CWDM/DWDM
Supported service types		STM-1/4/6/16/64/256, FE/GE/10GE/40GE/100GE
Service access capability		●Support the OEO (optical-electrical-optical) amplification of at most 32 routes’ services under any protocols within the rate of 155M~10G. ●Support the OEO (optical-electrical-optical) amplification of at most 16 routes’services under any protocols at the rate of 40G or 100G.
3R function		Support 3R function: re-amplifying), re-timing, re-shaping
ALS function		Support laser automatic turn-off alarm function. The laser will automatically turn off the emission when it receives no light
Network management		Support multi-kinds of graphical interface network management,such as SNMP,Web
Equipment dimension		CL-OTN-3900 1RU：442 (W)×350 (D) ×44 (H) mm
Optical interface		LC/UPC
Working temperature range		-10℃~60℃
Working humidity range		5%~95% no condensation
Storage temperature		-40℃~85℃
Power supply		AC: 90 ~ 260V or DC: -72~ -36 V (support 1+1 power input backup)
Typical power consumption		Full configuration<80w
Heat dissipation		Fan cooling
MTBF		＞100000 hours
EDFA Optical Amplification System
The main function of the EDFA optical amplification subsystem is to compensate the signal’s optical power in the transmission link, which can finally extend the optical signal transmission distance. It can be divided into OBA, OLA and OPA based on the application scene. BA is usually used at the transmitting end to boost the output optical power of the system. LA is usually used at the repeater section to compensate the power loss of the line. PA is usually used at the receiving end of the system to improve the input optical power.The EDFA can amplify all the input optical signals by using the erbium-doped fiber as the gain medium and using the 980nm or 1480nm pump laser as the pump source with one-stage or two-stage amplification. It’s one of the most indispensable and important part of the DWDM system, high speed transmission system and all optical network in the future.
Product Feature			Product Diagram
lSupport the unified amplification of 40/48/80/96CH DWDM signal of C band lAutomatic gain control(AGC) lFlat gain and low noise figure lSupport built-in VOA and automatic adjustment of optical power lSupport two-stage amplification with OADM or DCF modules to be configured in the line lSupport AC power 220V, DC power -48V, and 1+1 power input protection lSupport multi-kinds of graphical interface network management, such as SNMP, Web			CL-OTN-3900 1RU：442 (W)×350 (D) ×44 (H) mm

			CLEDFABAxx-1U-L 1RU：442 (W)×250 (D) ×44 (H)mm

Product Specification
Function	Parameter			Remark
Working wavelength range	Stand type: 1529nm~1561nm, extended type: 1528nm~1568nm
EDFA type	OBA	OLA	OPA
Min input power (typical)	-22dBm	-30dBm	-32dBm
Saturation output power (typical)	+20dBm	+20dBm	+16dBm	+16dBmTo be customized with max +23dBm
Rated gain (typical)	12dB	25dB	25dB	To be customized
Gain flatness	≤1.5dB
Noise figure	≤5.5 dB
Working temperature range	-10℃~60℃
Working humidity range	5%~95% no condensation
Storage temperature	-40℃~85℃
Equipment dimension	CL-OTN-3900 1RU：442 (W)×350(D) ×44 (H)mm CLEDFABAxx-1U-L 1RU：442 (W)×250 (D) ×44 (H)mm
Network management	Support multi-kinds of graphical interface network management, such as SNMP and Web			Optional
Special technology	Built-in VOA with automatic adjustment of optical power			Optional
Optical interface	LC/UPC
Power supply	AC: 90 ~ 260V or DC: -72~ -36 V (1+1 power input backup)
Typical power consumption	Full configuration<60w
Heat dissipation	Fan cooling
MTBF	＞100000 hours
SOA Optical Amplification System
The SOA optical amplification subsystem is a special amplification platform for low power optical signal of 100G high-speed services in optical networks. It adopts the plug-in card type and hot-plug design with the characteristics of high integration,low power consumption and stable output power.The system is widely used in data link power amplification and extending transmission distance in various industries.
Product Feature			Product Diagram
lWavelength range: 1280nm~1330nm lWorking modes: automatic power control (APC)and automatic gain control (AGC) lInput power range：-17dBm~-4dBm lHigh output power: saturated output optical power can reach +12dBm lDouble power protection: support AC power 220V, DC power -48V, and 1+1 power input protection lFlexible architecture: 1U plug-in card design, flexible capacity configuration			CL-OTN-3900 1RU： 442(W)×350(D)×44(H)mm
			lGreen and easy-to-use: configuration-free installation, plug-and-play. lUnified network management platform: Support multi-kinds of graphical interface network management, such as SNMP, Web.
Product Specification
Function		Parameter		Remark
Working wavelength range		1280nm ~ 1330nm
Input power range (total power)		-17dBm ~ -4dBm
Output power range (total power)		2dBm ~ 12dBm
Gain		≤14dB
Gain flatness		≤2dB
Noise figure		≤7.5 dB
Polarization dependent gain		≤2dB
Working temperature range		-10℃~60℃
Working humidity range		5%~95% no condensation
Storage temperature		-40℃~85℃
Equipment dimension		CL-OTN-3900 1RU： 442(W)×350(D)×44(H)mm
Network management		Support multi-kinds of graphical interface network management, such as SNMP and Web		Optional
System capacity		6*100G optical signal amplification		1U full load
Optical interface		LC/UPC
Power supply		AC: 90 ~ 260V or DC: -72~ -36 V (1+1 power input backup)
Typical power consumption		Full configuration<110w
Heat dissipation		Fan cooling
MTBF		＞100000 hours
