| Form Factor | Part No. | Fiber Type | Data Rate | Wavelength | Distance | Connector | Case Temperature | Note |
| BIDI SFP+ | CLSFP11GBD4580D | SMF | 9.95-11.1G | 1490nm/1550nm | 80km | LC | Com./Ind. | |
| BIDI SFP+ | CLSFP11GBD5480D | SMF | 9.95-11.1G | 1550nm/1490nm | 80km | LC | Com./Ind. | |
| BiDi SFP+ | CLSFP11GBD2340D | SMF | 9.95-11.1G | 1270nm/1330nm | 40km | LC | Com./Ind. | |
| BiDi SFP+ | CLSFP11GBD3240D | SMF | 9.95-11.1G | 1330nm/1270nm | 40km | LC | Com./Ind. | |
| BiDi SFP+ | CLSFP11GBD2320D | SMF | 9.95-11.1G | 1270nm/1330nm | 20km | LC | Com./Ind. | |
| BiDi SFP+ | CLSFP11GBD3220D | SMF | 9.95-11.1G | 1330nm/1270nm | 20km | LC | Com./Ind. | |
| BiDi SFP+ | CLSFP11GBD2310D | SMF | 9.95-11.1G | 1270nm/1330nm | 10km | LC | Com./Ind. | |
| BiDi SFP+ | CLSFP11GBD3210D | SMF | 9.95-11.1G | 1330nm/1270nm | 10km | LC | Com./Ind. | |

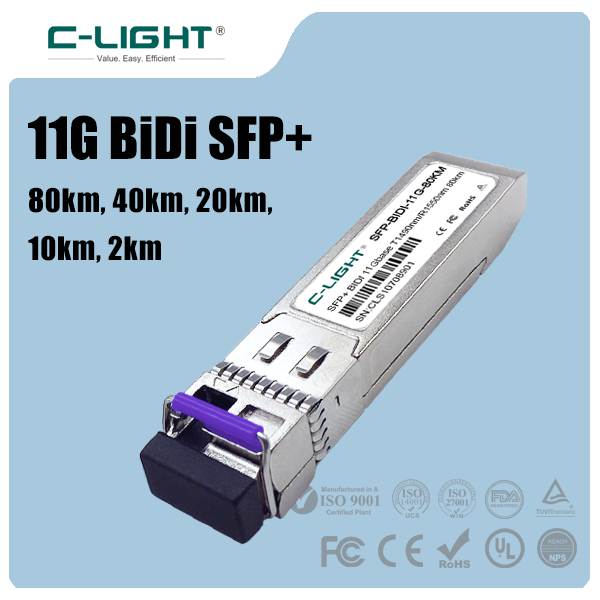

C-LIGHT 11G BIDI SFP+ optical transceivers are enhanced SFP+ modules designed for 11.1Gbps Ethernet and 11.1G Fibre Channel networks. The modules support single-mode fiber communication and use bidirectional transmission technology to carry optical signals over a single fiber.
With transmission options from 10km to 80km and paired wavelength configurations such as 1270nm/1330nm, 1330nm/1270nm, 1490nm/1550nm, and 1550nm/1490nm, the 11G BIDI SFP+ family provides flexible connectivity for different network architectures and link distances.
Supports data rates from 9.95Gbps to 11.1Gbps and is designed for both 11.1GBASE Ethernet and 11.1G Fibre Channel applications.
Bidirectional optical transmission allows upstream and downstream signals to share one single-mode fiber, providing an efficient approach for networks with limited fiber resources.
Available in 10km, 20km, 40km, and 80km configurations, covering both metropolitan network links and longer-distance optical connections.
Different Tx/Rx wavelength combinations are available, including 1270nm/1330nm and 1490nm/1550nm pairs, with complementary modules used at opposite ends of the link.
The compact SFP+ package provides a practical upgrade path for compatible network equipment while maintaining high port density.
Designed for SMF communication, making the module suitable for extended-reach optical links where single-fiber bidirectional transmission is required.
The LC connector provides a standard fiber interface for integration with compatible optical networking equipment.
Commercial and industrial case-temperature options are available for different deployment environments.
Provides optical connectivity for 11.1Gbps Ethernet links where higher bandwidth is required within an SFP+ based network architecture.
Supports 11.1G Fibre Channel connectivity for storage networking environments that require stable high-speed optical links.
80km variants are suited to extended single-mode fiber connections where conventional short-reach optical modules cannot provide sufficient reach.
Single-fiber BiDi transmission can help organizations make better use of existing fiber infrastructure by carrying bidirectional traffic over one optical fiber.
Multiple reach and wavelength configurations allow the modules to be deployed across different distances in metro and access-oriented optical networks.
The SFP+ form factor makes the modules suitable for compatible switches, routers, storage equipment, and other optical networking platforms.
Support for both 11.1G Ethernet and 11.1G Fibre Channel makes the product family suitable for different high-speed networking environments.
The BiDi architecture combines transmit and receive functions on a single fiber, making it useful where fiber availability is a key deployment consideration.
With 10km, 20km, 40km, and 80km options, customers can select a module according to the actual optical link distance rather than using a one-size-fits-all solution.
C-LIGHT states that each module is fully tested and provides technical support, long-term maintenance, and a three-year warranty for its optical transceiver products.
An 11G BIDI SFP+ is an enhanced SFP+ optical transceiver designed for 9.95Gbps to 11.1Gbps communication. It uses bidirectional transmission over a single-mode fiber and supports 11.1GBASE Ethernet and 11.1G Fibre Channel applications.
C-LIGHT provides 11G BIDI SFP+ variants for 10km, 20km, 40km, and 80km transmission distances.
The product family includes complementary wavelength combinations of 1270nm/1330nm and 1330nm/1270nm for 10km, 20km, and 40km variants, as well as 1490nm/1550nm and 1550nm/1490nm options for 80km transmission.
The 11G BIDI SFP+ is designed specifically for single-fiber bidirectional communication. A complementary wavelength module is normally used at the opposite end so that the transmit wavelength of one side matches the receive wavelength of the other.
The C-LIGHT 11G BIDI SFP+ product family is specified for single-mode fiber (SMF) communication and uses an LC optical connector.
Yes. The product specifications list commercial and industrial case-temperature options, allowing selection according to the operating environment.
C-LIGHT 11G BIDI SFP+ optical transceivers combine 11.1Gbps-class performance with single-fiber bidirectional transmission for Ethernet and Fibre Channel networks. With complementary wavelength pairs and reach options from 10km to 80km, the product family provides a practical solution for extending optical connectivity while making efficient use of available single-mode fiber infrastructure.
