Fiber Optic Cleaning System

CLE-MAC-OX is a high performance and low price cleaning device, It can quickly andefficiently clean fiber female connector end face to ensure fiber perfect connection low insertionloss and High return loss.

3-year warranty

Long term maintenance

Technical Support

Professional free technical guidance

100% detection

Each module is 100% tested

Spot stock

Always in stock, short delivery time

Technical Support

Tel：+86 158 1857 3751

Online Consultation

Product Details

Support & Service

Quality Inspection

Quality Certification

Product Details

Feature

• Efficient and non contact cleaning do not to scratch the fiber end face

• Compatible with virtually all connectors

• low cost, suitable for mass production

• The cleaning solvent pass the MSDS certification

• Internal air filter

• Injection channel (liquid drops + clean gas) and absorption channel (pollutants + gas),two independent channels

• Can choose to install optical microscope probe and test software

Working Principle

CLE-MAC-OX fiber cleaning machine uses special cleaning solvent and gas to clean the fiber end face.There aretwo independent channels,injection channel and absorption channel, in the machine. The injection channel spout special liquid and pure gas. The special cleaning solvent could rapidly dissolve oil and contamination and then the pure gas spray the mixture and make it floating. After that the absorption channel absorbs all the pollution mixture.

It is convenient to operate. Inserting the nozzle into the fiber port and pressing the switch the machine begins to work ，and the whole process expend only a few seconds.

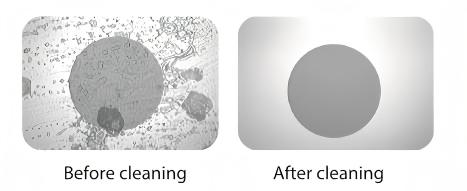

Performance

Cleaning Solvent

Ingredient	Number	Percentage(%)
Trans-1,2-dichloroethylene	156-60-5	66-70
Ethyl Nonafluoroisobutyl Ether	163702-06-5	4-16
Ethy Nonafluorobuty Ether	163702-05-4	4-16
Methyl Nonafluoroisobutyl Ether	163702-08-7	2-8
Methyl Nonafluorobutyl Ether	163702-07-6	2-8
Isopropyl Alcohol	67-63-0	1-3

Notice:

1. The solvent is volatile ,keep it carefully.

2. Do not use other solvent otherwise we will not provide warranty service.

Parameter

Menu	Parameter
Gas source	Compressed air, hydrogen
Air Pressure	4KG-6KG
Solvent consume	at least 9500 cleaning time for one bottle
Cleaning time	2S
Maintaining	change one filter after 100000 cleaning
Video output	PAL
Using Temperature	+15℃ - +25℃
Storage Temperature	-10℃ - +30℃
Power	100VAC－240VAC (50－60Hz) 2AMP
Volume	230mm × 210mm × 150mm
Weight	5KG

Standard Accessories

Cleaning adaptor	LC 1pcs, SC 1pcs
Cleaning solvent	225ml × 2pcs
Liquid flow diverter	1pcs
Manual	1pcs
