What is a CWDM Demux?

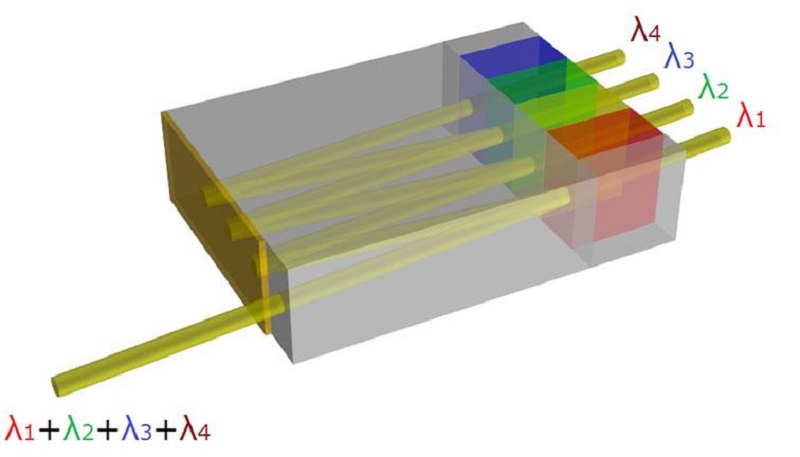

A CWDM Demux (Coarse Wavelength Division Multiplexer Demultiplexer) is a passive optical device that separates multiple wavelengths transmitted over a single fiber into individual channels.

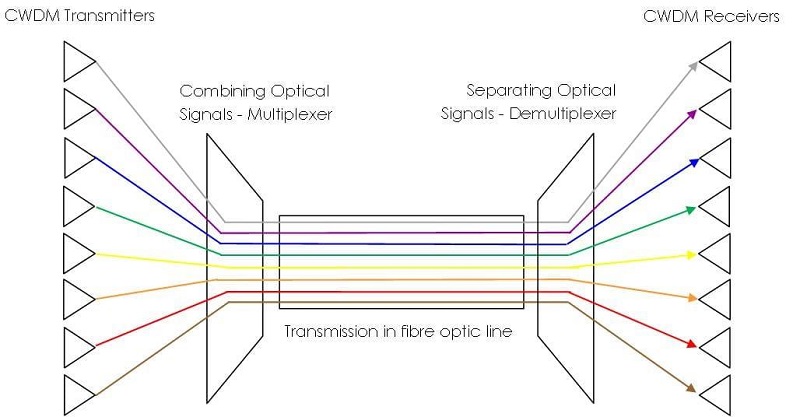

How it works:

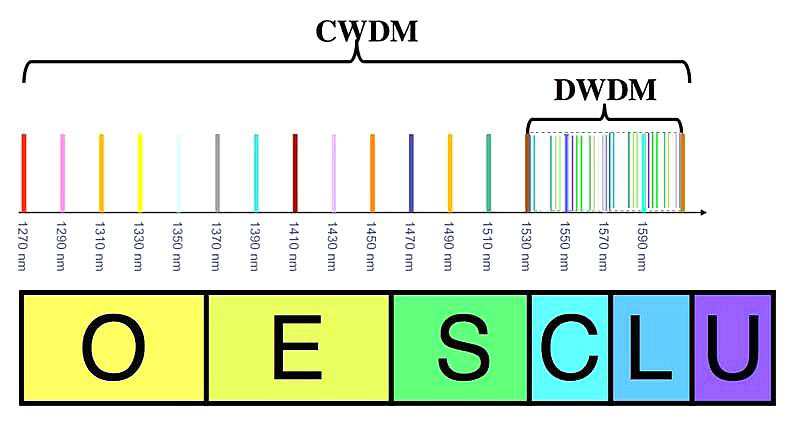

Multiple optical signals (1270–1610 nm) are multiplexed onto one fiber
Signals travel simultaneously over the same infrastructure
The CWDM Demux splits them back into separate outputs at the receiving end.

Key CWDM Demux Specifications (What Matters Most)

When selecting a CWDM Demux, these parameters directly impact network performance:

1. Insertion Loss

Indicates signal attenuation through the device
Lower is better
Typical range: 1.5 dB – 5.0 dB

2. Channel Isolation

Prevents interference between wavelengths
Standard values:

Adjacent channels ≥30 dB
Non-adjacent channels ≥40 dB

3. Channel Uniformity

Measures consistency across channels
Lower variation ensures stable transmission

4. Polarization Dependent Loss (PDL)

Typically ≤0.1–0.3 dB
Affects signal integrity in high-speed networks

5. Operating Temperature

Commercial: -5°C to 65°C
Industrial: -40°C to 85°C

CWDM Demux Specification Comparison

To better understand performance differences, here’s a direct comparison:

Why Lower Insertion Loss Matters

Lower insertion loss directly translates to:

Longer transmission distance
Reduced need for high-power transceivers
Lower overall network cost (TCO)

In large-scale deployments like data centers, even a 1 dB improvement can significantly reduce power consumption and equipment requirements.

Applications of CWDM Demux

CWDM Demux is widely used in:

Data Center Interconnect (DCI)
Metro Area Networks (MAN)
5G Fronthaul Networks
Enterprise Campus Networks

Why Choose C-LIGHT CWDM Demux?

C-LIGHT delivers a balanced combination of performance, reliability, and cost-efficiency:

✔ Superior Optical Performance

Ultra-low insertion loss
High channel isolation
Excellent channel consistency

✔ Flexible Form Factors

LGX modules
Rack-mounted (1U/2U)
Compact ABS box

✔ High Compatibility

Works with major vendor equipment
Plug-and-play deployment

✔ Industrial-Grade Reliability

Wide temperature range
Long-term stable operation

CWDM Demux is a critical component for optimizing fiber infrastructure and reducing network costs. While many options exist, not all CWDM devices are created equal.
