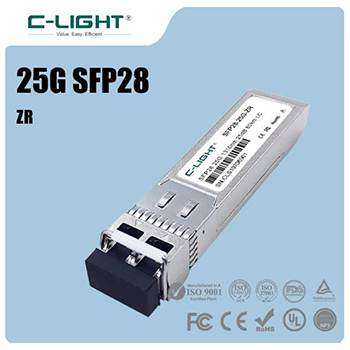

25G/10G Auto-Adapting 80km SFP Transceiver automatically adapts between 25Gbps and 10Gbps speeds, supporting long-distance fiber transmission up to 80km. Housed in an SFP form factor, it delivers high compatibility for bandwidth-intensive applications such as data center interconnects and metropolitan area network expansion.
-40℃~85℃ 丨 25G/10G Auto Adapting 丨 80km with FEC Support 丨Factory warranty |
CLSFP25GZRI |
●Lane max bit rate 25.78 Gb/s; ●Up to 80km transmission on SMF, with FEC support by host board; ●High power 1310nm laser and APD receiver; ●High speed I/O electrical interface (25GAUI); ●I2C interface with integrated Digital Diagnostic monitoring; ●SFP28 MSA package with duplex LC connector; ●Single +3.3V power supply; Maximum power consumption 1.5 W; ●Operating case temperature: Refer to Order info. ●Compliant to IEEE 802.3cc Draft3.0, SFF-8402 and SFF-8432; ●Operate case temperature -40℃~85℃ |
●Specification | |||
| Number | CLSFP25GZRI | Vendor | C-LIGHT |
| Form Factor | SFP28 | Data Rate Max | 25.78Gbps 10.31Gbps |
| Wavelength | 1310nm | Max Cable Distance | 80km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DML 1310nm | Receiver Type | APD |
| TX Power | 4.5~6.5dBm | Receiver Sensitivity | < -20dbm |
| Power Budget | >24dB | Receiver Overload | -5dBm |
| Power Consumption | ≤1.5W | Extinction Ratio | >4dB |
| DDM/DOM | Supported | Industrial Temperature Range | -40 to 85°C |
| CDR | TX & RX Built-in CDR | FEC Function | Support |
| Protocols | SFF-8472, SFF-8432, SFF-8431 | Warranty | 3 Years |
| Core Size | G.652 | Packaging Technology | BOX Packaging |

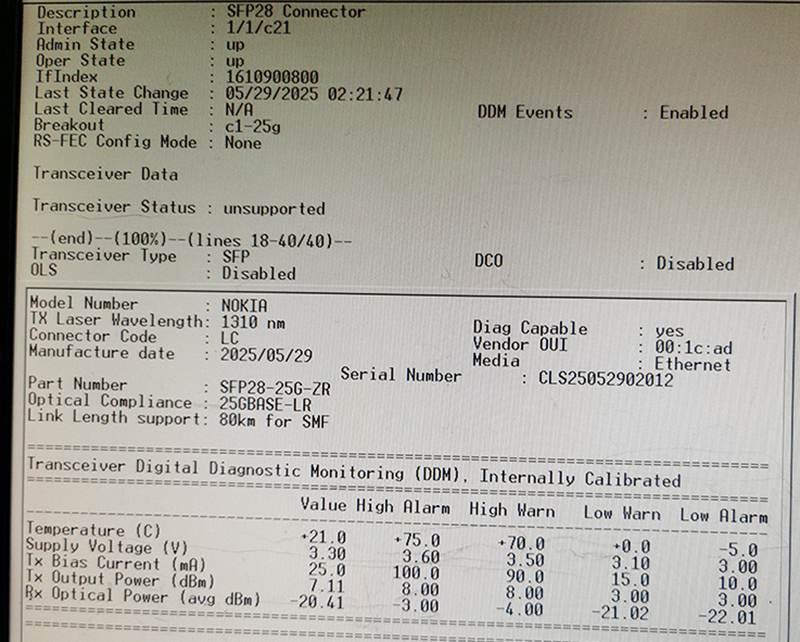

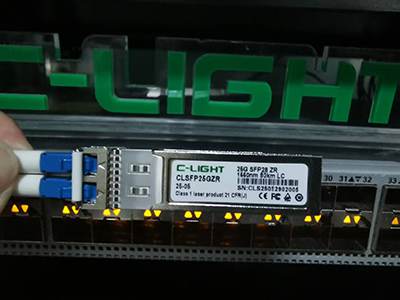

| System Test | |
|
|
| |
| Test video | ||
| Related Products | |||
| Number | CLSFP25GZRI | CLSFP25GDW40P-XX | |
| Wavelength | 1310nm | 1310nm | C-Band DWDM |
| Connector | LC Simplex | LC Duple | LC Simplex |
Cable Distance (Max. | 80km | 40km | 40km |
Data Rate | 25.78Gbps | 25.78Gbps | 25.78Gbps |
Transmitter Type | DFB | DFB | EML |
TX Power | >4.5dBm | >-0.5dBm | >-1dBm |
Receiver Sensitivity | < -20dbm | < -18dbm | < -15dbm |
Application | Access Network | Access Network | Data Center |

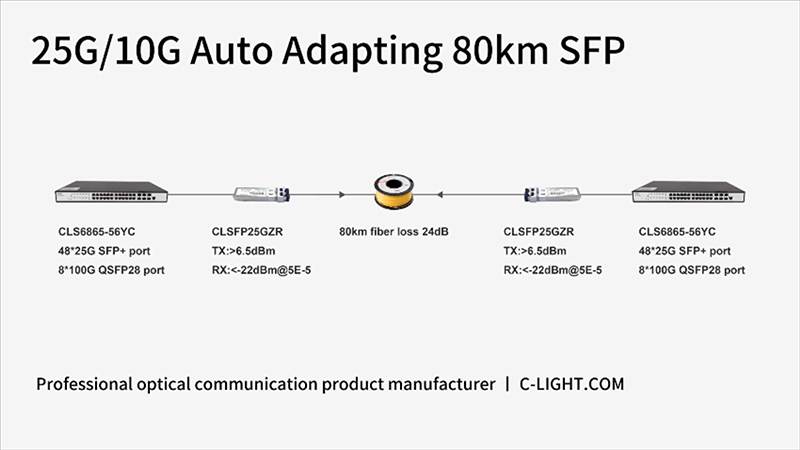

| Application Graph |
 |
>
>
>
>
>
>
>
>
