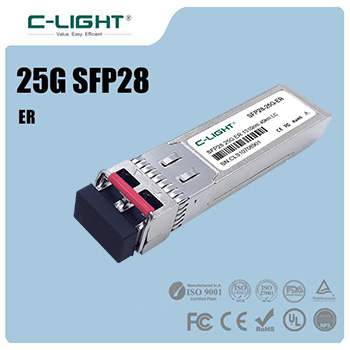

25G/10G Auto Adapting 40km SFP high-performance optical transceiver supports dual data rates of 25Gbps and 10Gbps with auto-negotiation, delivering transmission distances of up to 40 kilometers over single-mode fiber. Housed in an SFP form factor and compliant with IEEE 802.3 standards.
-40℃~85℃ 丨 25G/10G Auto Adapting 丨 40km without FEC Support 丨Factory warranty |
CLSFP25GERI |
●Lane max bit rate 25.78 Gb/s; ●Up to 40km transmission on SMF, without FEC support by host board; ●Tx 1310nm laser and Rx APD receiver; ●High speed I/O electrical interface (25GAUI); ●I2C interface with integrated Digital Diagnostic monitoring; ●SFP28 MSA package with duplex LC connector; ●Single +3.3V power supply; Maximum power consumption 1.5 W; ●Operating case temperature: Refer to Order info. ●Compliant to IEEE 802.3cc Draft3.0, SFF-8402 and SFF-8432; ●Operate case temperature -40℃~85℃ |
●Specification | |||
| Number | CLSFP25GERI | Vendor | C-LIGHT |
| Form Factor | SFP28 | Data Rate Max | 25.78Gbps |
| Wavelength | 1310nm | Max Cable Distance | 40km |
| Connector | Duplex LC | Media | SMF |
| Transmitter Type | DML 1310nm | Receiver Type | APD |
| TX Power | -0.5~6.5dBm | Receiver Sensitivity | < -18dbm |
| Power Budget | 17.5dB | Receiver Overload | -5dBm |
| Power Consumption | ≤1.5W | Extinction Ratio | 4dB |
| DDM/DOM | Supported | Industrial Temperature Range | -40 to 85°C |
| CDR | TX & RX Built-in CDR | FEC Function | Support |
| Protocols | SFF-8472, SFF-8432, SFF-8431 | Warranty | 3 Years |
| Core Size | G.652 | Packaging Technology | TO Packaging |

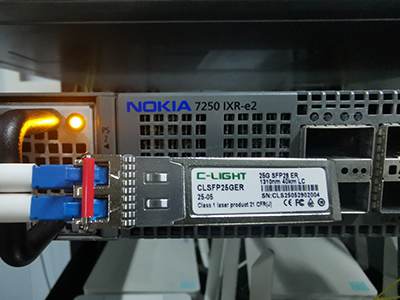

| System Test | |
|
|
| Test video | ||
| Related Products | |||
| Number | CLSFP25GERI | CLSFP25GDW40P-XX | |
| Wavelength | 1310nm | 1310nm | C-Band DWDM |
| Connector | LC Duple | LC Simplex | LC Simplex |
Cable Distance (Max. | 40km | 80km | 40km |
Data Rate | 25.78Gbps | 25.78Gbps | 25.78Gbps |
Transmitter Type | DFB | DFB | EML |
TX Power | >-0.5dBm | >4.5dBm | >-1dBm |
Receiver Sensitivity | < -18dbm | < -20dbm | < -15dbm |
Application | Access Network | Access Network | Data Center |

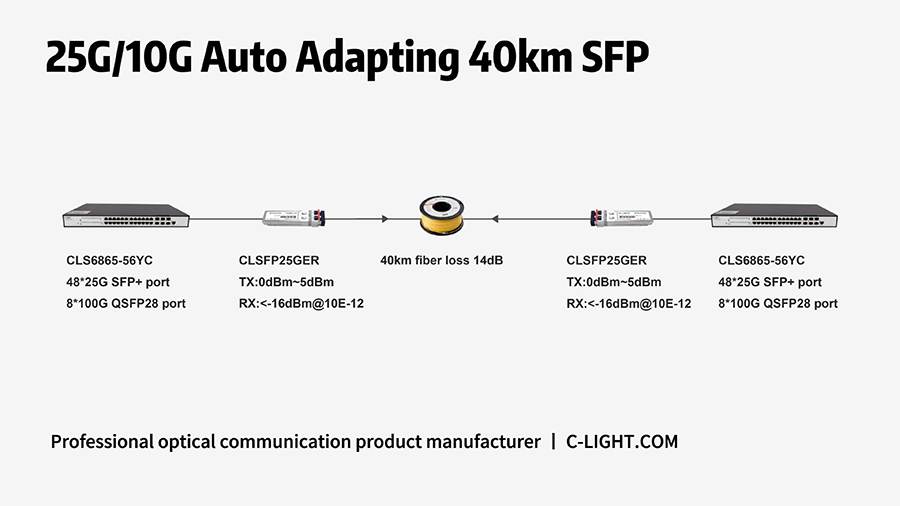

| Application Graph |
 |
>
>
>
>
>
>
>
>
