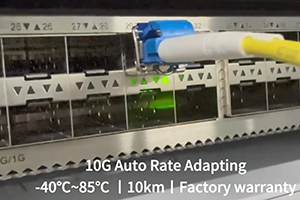

-40℃~85℃ 丨 1G/ 10G/ 25G Auto Rate Adapting 丨10km丨Factory warranty |

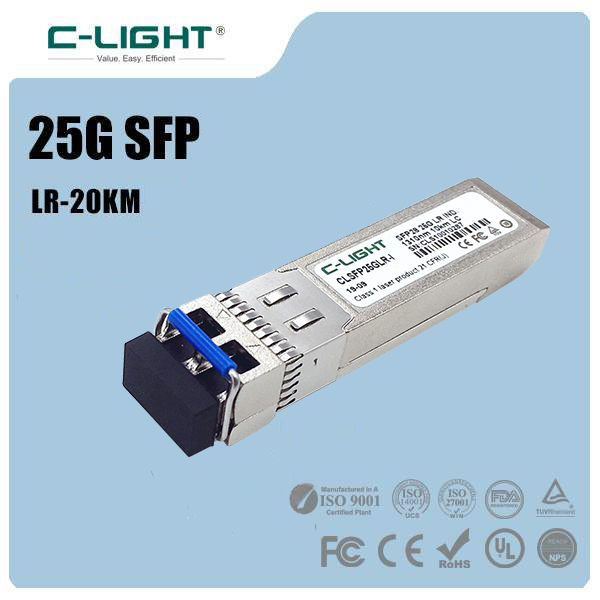

CLSP1G/10G/25GLR |
●Supports 1G/10G/25GBASE-LR; ●Maximum link length 300m on OM4 MMF; ●1310nm DFB laser and PIN / APD photo-detector; ●400k High speed I/O electrical interface (25GAUI); ●I2C interface with integrated Digital Diagnostic monitoring; ●SFP28/SFP+/SFP MSA package with duplex LC connector; ●Maximum power consumption 1.0W ●Single +3.3V power supply; ●Operating case temperature: -40℃ ~ +85℃ ●Compliant to IEEE 802.3cc Draft3.0, SFF-8402 , SFF-8432, SFF-8472; ●Complies with EU Directive 2011/65/EU (RoHS 6/6) |
Specification | |||
Part Number | CLSFP1G/10G/25GLR | Vendor | C-LIGHT |
Form Factor | SFP | Data Rate | 1.25Gbps/10Gbps/25.78Gbps |
Wavelength | 1310nm | Distance | 10km~40km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
TX Power | -5~2dBm | Receiver Sensitivity | ＜-12dBm @25G ＜-15dBm @10G ＜- 20dBm @1G |
Power Budget | 7dBm @25G 10dBm @10G 15dBm @1G | Receiver Overload | 2dBm |
Power Consumption | ≤1.5W | Extinction Ratio | ＞4dB @25G ＞5dB @10G ＞9dB @1G |
Commercial Temperature Range | 0 to 70°C | Protocols | SFF-8472,SFF-8024,SFF-8431,SFF-8432, CEI-28G-VSR |
Core Size | G.652 | Packaging Technology | Coaxial Packaging |
DOM | Supported | Warranty | 3 Years |

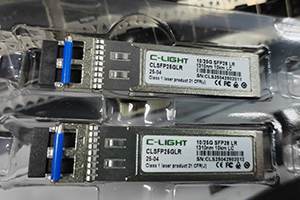

System Test | ||
 |  |  |
Related Products | ||||
Part Number | CLSFP1G/10G/25GLR | CLSFP1G/10G/25GSR | CLSFP25GLR | CLSFP25GBD293110 |
Center Wavelength | 1310nm | 850nm | 1310nm | 1290nm/1310nm |
Connector | LC Duplex | LC Duplex | LC Duplex | LC Simplex |
Distance | 10km | 100m | 10km | 10km |
Transmitter Type | DFB | VCSEL | DFB | DFB CWDM |
Media | SMF | MMF | SMF | SMF |
Packaging Technology | Coaxial Packaging | Coaxial Packaging | Coaxial Packaging | Coaxial Packaging |
Application | Ethernet/ Access | Data Center/ Storage | Ethernet/ Access/ 5G | Ethernet |

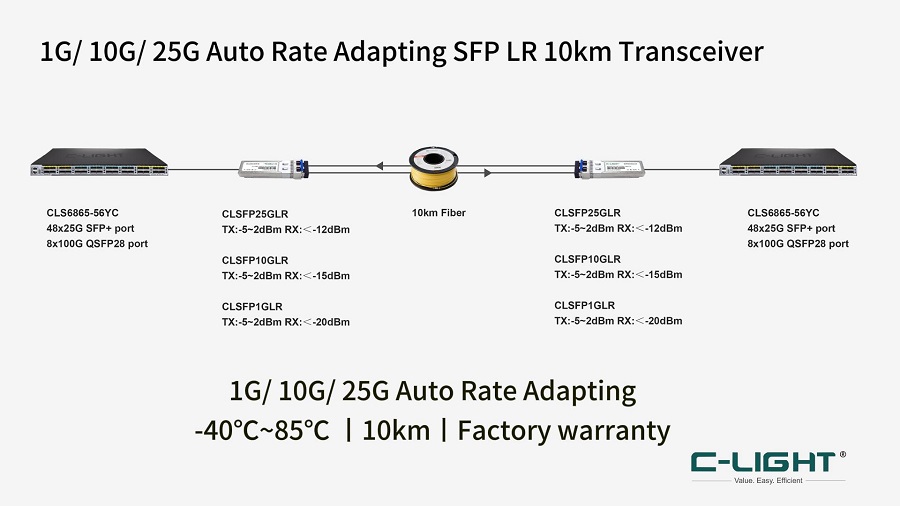

Application Graph |
