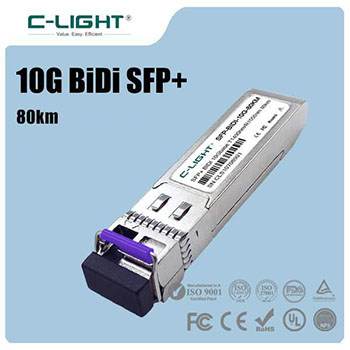

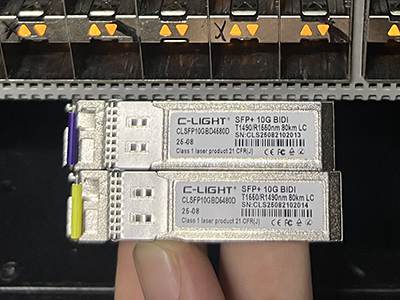

10G 1490nm/1550nm BiDi LC SFP+ 80km Transceiver is a high-performance, hot-pluggable optical module designed for long-range, high-bandwidth applications. Its key innovation is Bidirectional (BiDi) technology on a single strand of single-mode fiber (SMF), transmitting data at 1490nm and receiving at 1550nm. This effectively doubles your existing fiber capacity and significantly reduces infrastructure costs.
10G 1490nm/1550nm BiDi丨 80KM LC simplex 丨Factory warranty 丨 SFP+ |
CLSFP10GBD4580D/ CLSFP10GBD5480D |
●80km with 9/125µm SMF ●TX14900nm/RX1550nm cooled EML/APD laser ●Simplex LC Connector ●Hot-pluggable SFP+ footprint ●Single 3. 3V power supply ●Operating temperature: 0℃ to 70℃ ●RoHS ●Digital Diagnostic Monitor (DDM) |
●Specification | |||
Part Number | CLSFP10GBD4580D CLSFP10GBD548D | Vendor | C-LIGHT |
Form Factor | SFP+ | Data Rate | 10Gbps |
Wavelength | 1490nm/1550nm | Distance | 80km |
Connector | Simplex LC | Media | SMF |
Transmitter Type | EML | Receiver Type | APD |
TX Power | 3~5dBm | Receiver Sensitivity | < -26dBm |
Power Budget | 29dB | Receiver Overload | ＞-7dBm |
Typical Power Consumption | ≤1.5W | Extinction Ratio | >8dB |

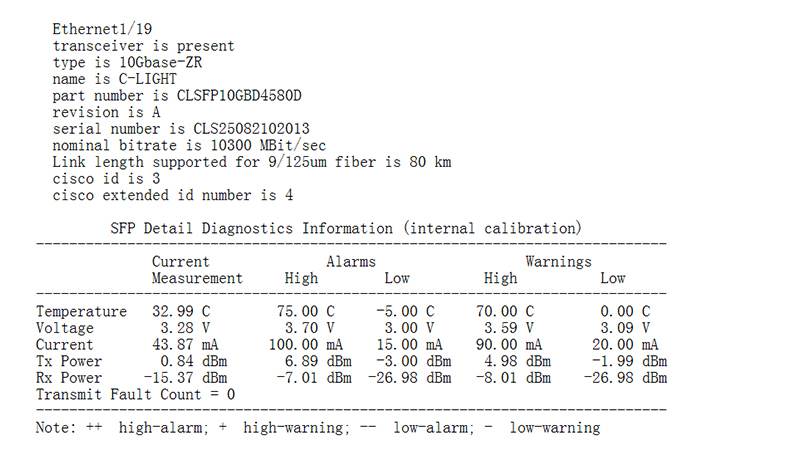

DDM/DOM | Supported | Ind.Temperature Range | 0 to 70°C |
Protocols | IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI | Warranty | 3 Years |
| Specification | |
 |  |
| |

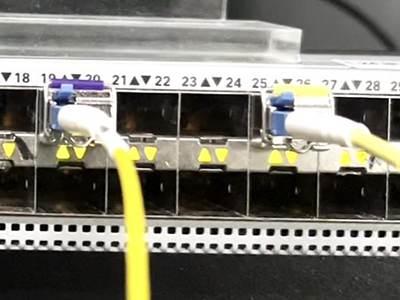

Test video | ||||
Related Products | ||
| Part Number | CLSFP10GBD4580D CLSFP10GBD5480D | CLSP10GBD2740D CLSP10GBD3340D |
| Center Wavelength | 1490nm/1550nm | 1270nm/1330nm |
| Connector | LC Simplex | LC Simplex |
| Cable Distance (Max.) | 80km | 40km |
| Modulation | EML | DFB |
| Power Consumption | SMF | SMF |
| TX Power | 3~5dBm | 0~5dBm |
| Receiver Sensitivity | < -26dBm | < -16dBm |
| Receiver Overloa | >-7dBm | >3dBm |
| Extinction Ratio | >8dB | >3.5dB |

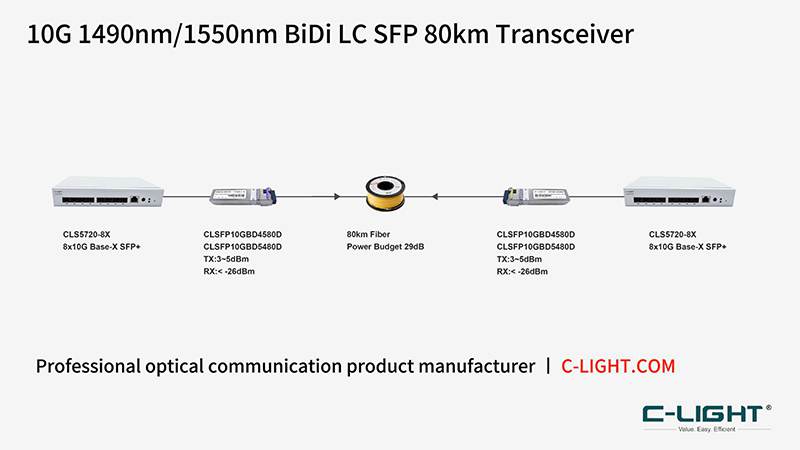

Application Graph |
>
>
>
>
>
>
>
>
