10G 1270nm/1330nm BiDi LC SFP 20km transceiver enables high-speed data transmission over 20km using single-fiber bidirectional technology through LC interface. It combines efficiency with reliability, ideal for enterprise networks and data center interconnections.

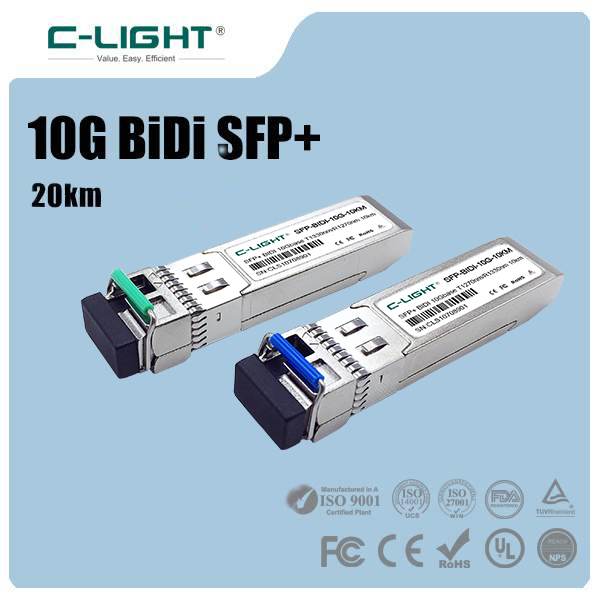

10G 1270nm/1330nm BiDi丨 20KM LC simplex 丨Factory warranty 丨 SFP+ |
CLSFP10GBD2720D/ CLSFP10GBD3320D |
●Up to 10Gbps data links ●20km with 9/125µm SMF ●WDM TX1270nm/RX1330nm, DFB/PIN laser ●Simplex LC Connector ●Hot-pluggable SFP+ footprint ●Single 3. 3V power supply ●Operating temperature: 0℃ to 70℃ ●RoHS ●Digital Diagnostic Monitor (DDM) |
Specification | |||
Part Number | CLSFP10GBD2720D CLSFP10GBD3320D | Vendor | C-LIGHT |
Form Factor | SFP+ | Data Rate | 10.31Gbps |
Wavelength | 1270nm/1330nm | Distance | 20km |
Connector | Simplex LC | Media | SMF |
Transmitter Type | DFB BIDI | Receiver Type | PIN |
TX Power | -4~1dBm | Receiver Sensitivity | < -14dBm |
Power Budget | 10dB | Receiver Overload | ＞3dBm |
Typical Power Consumption | ≤1.5W | Extinction Ratio | >3.5dB |

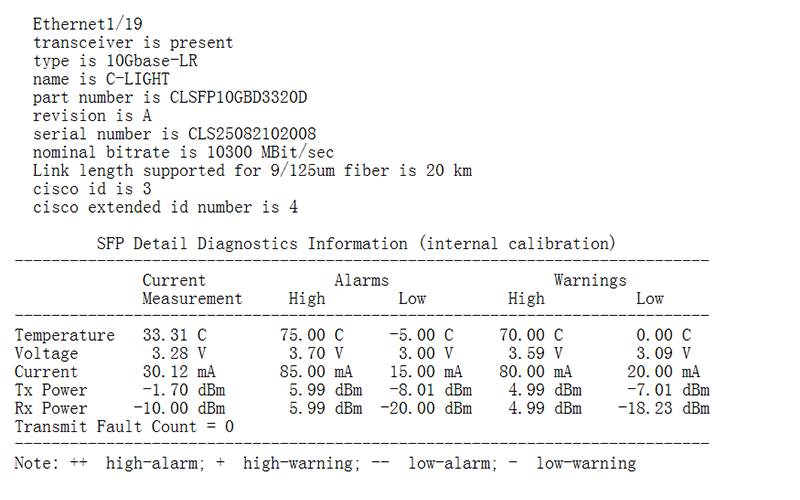

DDM/DOM | Supported | Ind.Temperature Range | 0 to 70°C |
Protocols | IEEE 802.3ae, SFP+ MSA Compliant, CPRI, eCPRI | Warranty | 3 Years |
| Specification | |
 |  |
 | |

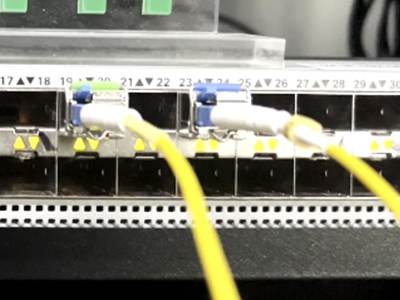

Test video | ||||
Related Products | ||
| Part Number | CLSP10GBD2720D CLSP10GBD3320D | CLSFP10GBD2740D CLSFP10GBD3340D |
| Center Wavelength | 1270nm/1330nm | 1270nm/1330nm |
| Connector | LC Simplex | LC Simplex |
| Cable Distance (Max.) | 20km | 40km |
| Modulation | DFB | DFB |
| Power Consumption | SMF | SMF |
| TX Power | -4~-1dBm | 0~5dBm |
| Receiver Sensitivity | < -14dBm | < -16dBm |
| Receiver Overloa | >3dBm | >3dBm |
| Extinction Ratio | >3.5dB | >3.5dB |

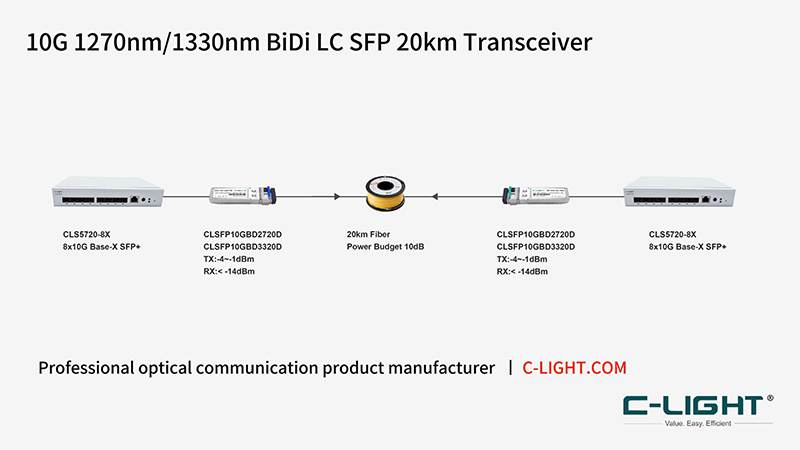

Application Graph |
>
>
>
>
>
>
>
>
