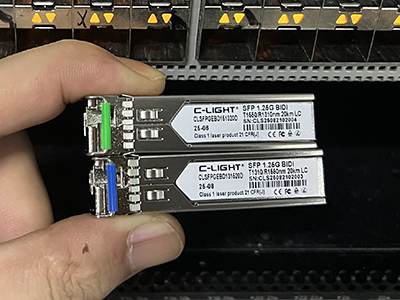

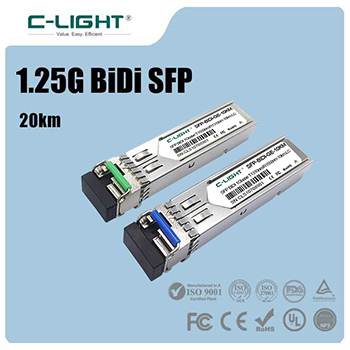

1.25G BiDi SFP transceiver features an LC interface and supports transmission distances of up to 20 kilometers. Its core innovation lies in the use of Wavelength Division Multiplexing technology, enabling bidirectional communication over a single fiber by transmitting and receiving optical signals on different wavelengths. This design effectively optimizes fiber infrastructure utilization. It is primarily designed for enterprise networks, fiber access applications, and 5G mobile fronthaul, where efficient fiber capacity usage is essential.
-40℃~85℃ 丨 1.25G 1310nm/1550nm BiDI 丨 TX :-9~-3dBm丨RX:< -19dBm 丨< 1.5w丨Factory warranty |
CLSFPGEBD131520DI/ CLSFPGEBD151320DI |
●Up to 1.25Gbps data links ●20Km with 9/125µm SMF ●1310nm FP /1550nm DFB laser/ PIN receiver ●Simplex LC Connector ●Hot-pluggable SFP footprint ●Single 3. 3V power supply ●Operating temperature: -40℃~85℃ ●RoHS |
Specification | |||
| Number | CLSFPGEBD131520DI CLSFPGEBD151320DI | Vendor | C-LIGHT |
| Form Factor | SFP | Data Rate Max | 1.25Gbps |
| Wavelength | 1310nm/1550nm | Distance | 20km |
| Connector | BIDI LC | Media | SMF |
| Transmitter Type | DFB BIDI | Receiver Type | PIN |
| TX Power | -9dBm~3dBm | Receiver Sensitivity | < -19dbm |
| Power Budget | 10dBm | Receiver Overload | >-2dBm |
| Power Consumption | ≤1.5W | Extinction Ratio | >9dB |
| DDM/DOM | Supported | Industrial Temperature Range | -40°C to 85°C |
| Protocols | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant | Warranty | 3 Years |

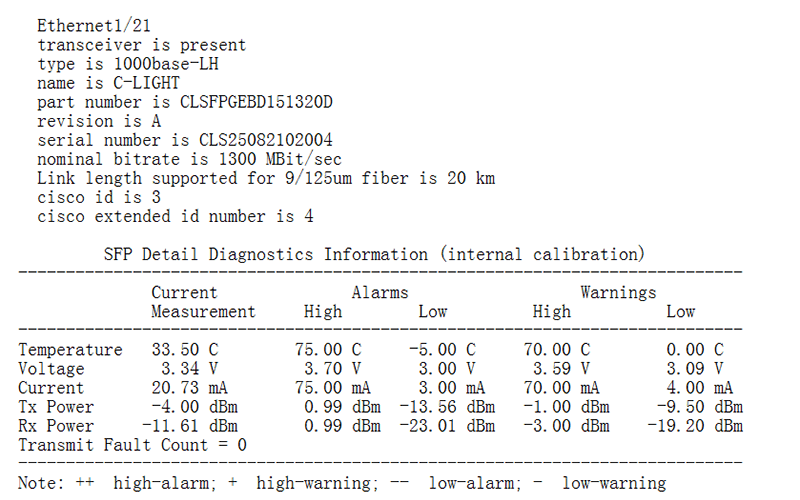

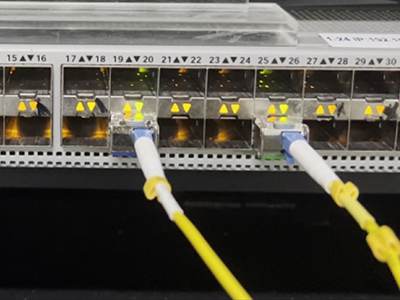

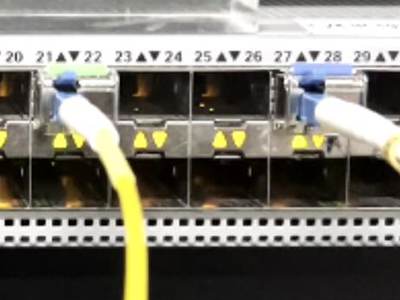

| System Test | |
|
|
| |
| Test video | ||

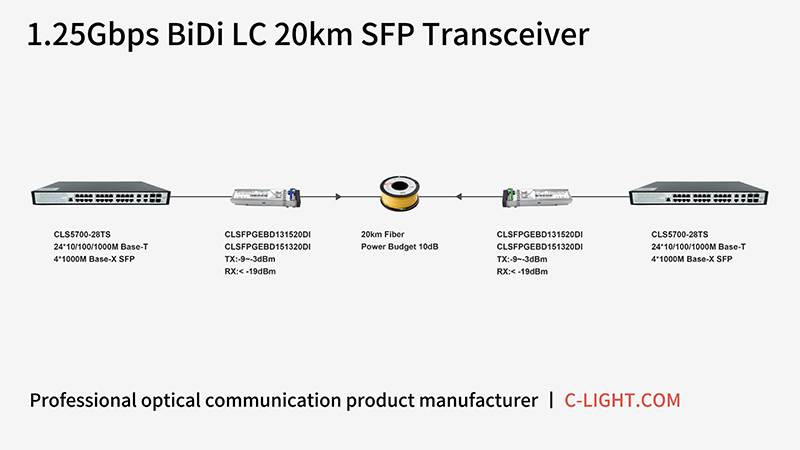

| Application Graph |
 |
>
>
>
>
>
>
>
>
