QSFP-DD DWDM 100G/200G/400G ZR+ High Power丨C-LIGHT

TX= 0dBm/CH 丨 RX < -24dBm/CH

-20℃~80℃ 丨NO amplified link 80km

C-Band 96ch丨< 22W丨Factory warranty

CL400GQDDZR+HP

DWDM 400G ZR+ ●Full Spectrum 400G ZR+ Coherent 60GBaud DP-16QAM design

●Support rates: 4x100 GbE, 400 GbE, 2x100 GbE, 1x100 GbE

●Support ZR+ OFEC and SFEC configurations
●High Tx Launching Power 0dBm
●Integrated Erbium Doped Fiber Amplifier (EDFA) and Tunable OpticalFilter (TOF)
●Compliant with IEEE 802.3-2022 standard:
●Compliant with OIF 400ZR OIF-400ZR-01.0 and IEEE P802.3cw D3.0 coherent standard: 400GBASE-ZR optical interface
●Compliant with QSFP-DD Type 2A (Rev5.0)
●Compliant with QSFP-DD CMIS Rev 5.2
●Support fully C-band 96channel tunable single carrier
●Support Data Center Interconnect for NO extra amplified link 80km , and amplified link from 120km to 500km
●Proprietary SFEC with PSC-16QAM available
●400GbE-ZR Max power consumption<18w
●400GbE-ZR+ Max power consumption<22w
●Case operating temperature 0°C to 75°C
●I2C Interface with digital diagnostic monitoring at rates of 100kb/s, 400kb/s, or 1Mb/s
●Complies with RoHS 2015/863/EU
●Class 1M Laser

Specification
Part Number	CL400GQDDZR+-HP	Vendor	C-LIGHT
Form Factor	QSFP-DD ZR+	Data Rate	400/200/100Gbps
Wavelength	1528.77~1566.52nm	Distance	Amplified: ≤500km Unamplified：≤80km
Connector	Duplex LC	Media	SMF
CD Robustness	2400(ps/nm)	DDM	YES
TX Power	0dBm	RX Power	Amplified: Full Rx OSNR tolerance: -12~0dBm Extended range: -15~1dBm Unamplified: -24~0dB
Power Consumption	≤22W	OSNR Tolerance	26dB/0.1nm
Channel Spacing	Amplified: ≤-12dBm Unamplified: ≤-20dBm	Ext. Temperature Range	-20℃ to 80°C
FEC	CFEC	Modulation Format	16QAM
Protocols	Open ZR+ MSA 2.0, OIF-CMIS-5.2, OIF-C-CMIS-1.2, QSFP-DD-Hardware-Rev6.3, IEEE Std 802.3-2018	Application	Metro/Edge DCI

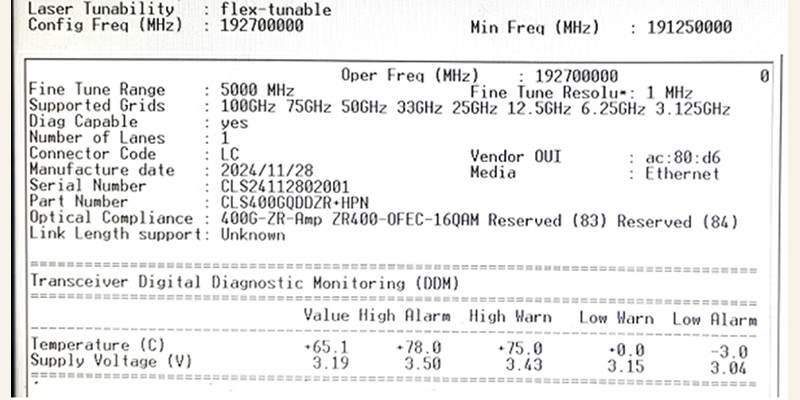

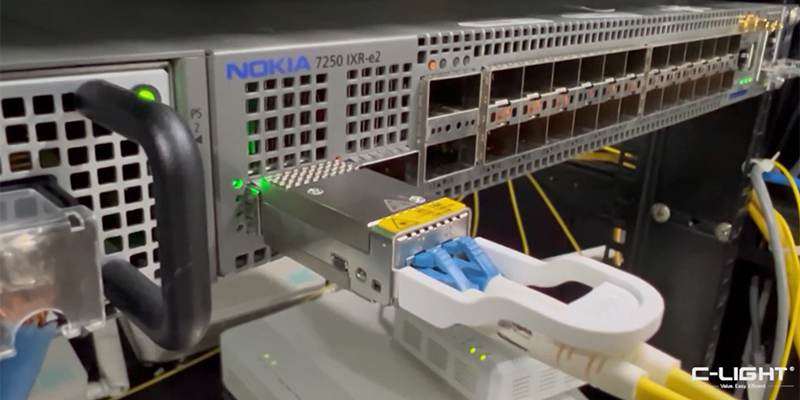

System Test

Related Products
Form	QSFP-DD DWDM 100G/200G/400G ZR+	QSFP-DD DWDM 400G ZR 120km	QSFP-DD DWDM 400G ZR+ 300
Part Number	CL400GQDDZR+-HP	CL400GQDDZR-120	CL400GQDDZR+-300
Wavelength	1567.13nm-1528.77nm	1567.13nm-1528.77nm	1567.13nm-1528.77nm
Connector	Duplex LC	Duplex LC	Duplex LC
Distance	400G ZR+: ≤80km (UNamplified) 400G ZR+:≤450km (amplified) 200G ZR+:≤600km (amplified) 100G ZR+:≤1000km (amplified)	400G ZR: ≤30km (UNamplified) 400G ZR:≤120km (amplified)	400G ZR+:≤30km(UNamplified) 400G ZR+:≤300km(amplified) 200G ZR+:≤400km(amplified) 100G ZR+:≤500km(amplified)
Power Consumption	≤22W	≤18W	≤22W
Modulation	100G DP-QPSK; 200G DP-QPSK; 300G DP-8QAM; 400G DP-16QAM;	DP-16-QAM	100G DP-QPSK/ 200G DP-QPSK/ 300G DP-8QAM/ 400G DP-16QAM
OSNR Tolerance	400G ZR:26dB/0.1nm; 400G ZR+:24dB/0.1nm; 300G ZR+:21dB/0.1nm; 200G ZR+:16dB/0.1nm; 100G ZR+:12.5dB/0.1nm;	26dB/0.1nm	400G ZR:26dB/0.1nm; 400G ZR+:24dB/0.1nm ; 300G ZR+:21dB/0.1nm ; 200G ZR+:16dB/0.1nm ; 100G ZR+:12.5dB/0.1nm;
TX Power	-7~0 dBm	-13~-9 dBm	-13~-9 dBm
FEC	OFEC，CFEC	CFEC	OFEC，CFEC
RX Sensitivity	-24dBm	-20dBm	-22dBm
Protocols	Open ZR+ MSA 2.0 and OIF-400ZR-02.0,OIF-CMIS-05.2,OIF-C-CMIS-01.2 QSFP-DD-Hardware-Rev6.3,IEEE Std 802.3-2018	Open ZR+ MSA 2.0 ,OIF-CMIS-05.2,OIF-C-CMIS-01.2,QSFP-DD-Hardware-Rev6.3,IEEE Std 802.3-2018	Open ZR+ MSA 2.0 and OIF-400ZR-02.0,OIF-CMIS-05.2,OIF-C-CMIS-01.2 QSFP-DD-Hardware-Rev6.3,IEEE Std 802.3-2018
Application	LH/Regional/Metro/ ROADMs	Edge DCI	Edge DCI IP Over Metro or Long Haul DWDM

Application Graph

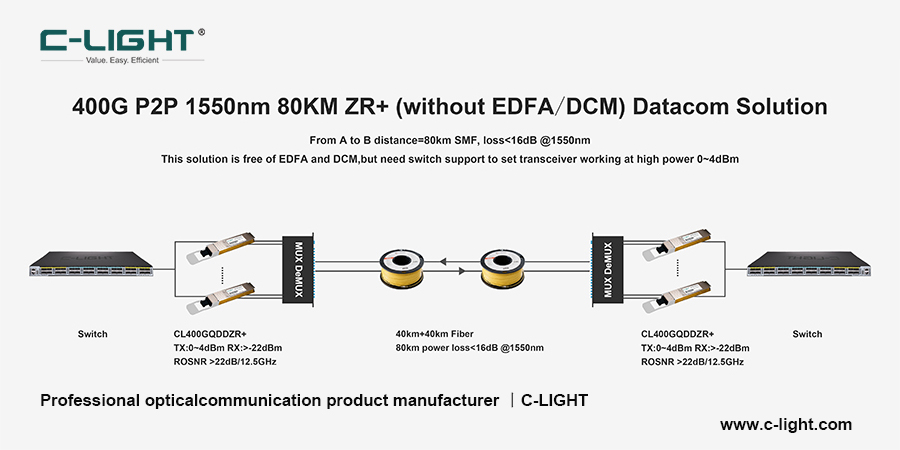

400G P2P 1550nm 80km.jpg

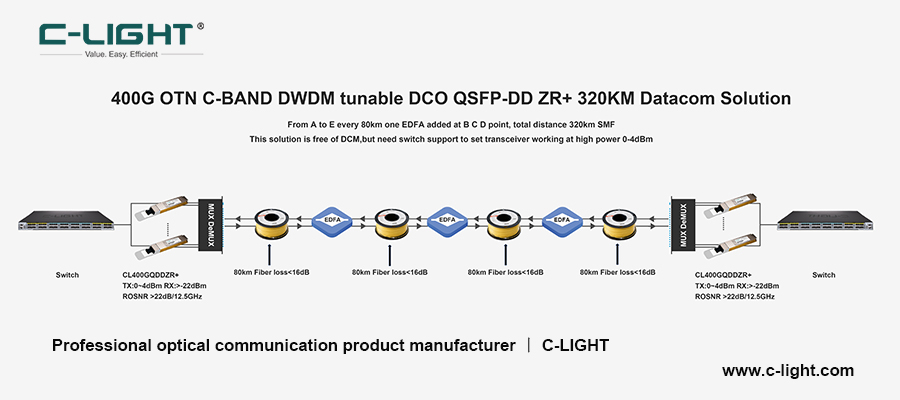

400G DWDM 320km.jpg

If you are interested in the 400G ZR+ High Power, please contact us,E-mail：sales@c-light.com
