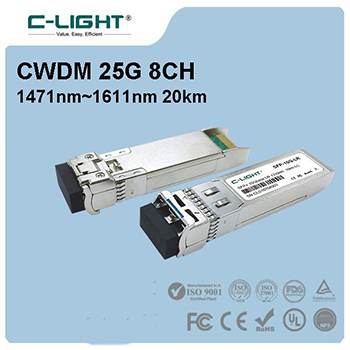

25G CWDM 8ch 1471nm~1611nm丨20km on SMF丨 No EDFA/ DCM 丨 Fast Shipping丨-40℃ ~ +85℃丨Factory Warrant |
CLSFP25GCW20PI-XX |
●Supports 25GBASE(25Gb/s) CWDM; ●Lane bit rate 25.78 Gb/s; ●Up to 20km transmission on SMF，after MUX/DeMUX ; ●8ch CWDM 1471nm~1611nm laser and APD receiver; ●400K High speed I/O electrical interface (25GAUI); ●I2C interface with integrated Digital Diagnostic monitoring; ●SFP28 MSA package with duplex LC connector; ●Single +3.3V power supply; Maximum power consumption 1.5 W; ●Operating case temperature: Refer to Order info. ●Compliant to IEEE 802.3cc Draft3.0, SFF-8402 and SFF-8432; ●Operate case temperature -40℃~85℃ |
Specification | |||
Part Number | CLSFP25GCW20PI-XX | Vendor | C-LIGHT |
Form Factor | SFP28 CWDM | Max Data Rate | 25.78Gbps |
Wavelength | 8CH 1471nm~1611nm | Max Cable Distance | 20km |
Connector | Duplex LC | Media | SMF |
Transmitter Type | EML CWDM | Receiver Type | APD |
TX Power | -2~+3dBm | Receiver Sensitivity | ＜-16dBm |
Power Budget | 15dB | Receiver Overload | ＜-5dBm |
Power Consumption | 1.5W | Extinction Ratio | ＞6dB |
DDM/DOM | Supported | Ext. Temperature Range | -40°C to 85°C |
CDR (Clock and Data Recovery) | TX and RX | Power Budget | 14dB |
FEC Function | Host FEC Supported | Protocols | MSA Compliant, eCPRI, Access |

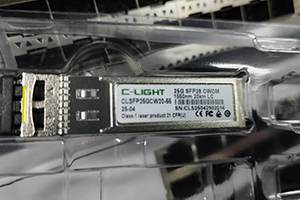

System Test | ||
 |  |  |
Related Products | |||||
Part Number | 25Gbps SFP28 CWDM 20KM | 25Gbps SFP28 CWDM 10KM | 25Gbps SFP28 CWDM 40km | ||
Max Data Rate | 25.8Gbps | 25.8Gbps | 25.8Gbps | ||
Wavelength | CWDM 8CH 1470nm~1610nm | CWDM 12CH 1270~1370nm | CWDM 16CH 1270~1370nm | ||
Connector | Duplex LC | Duplex LC | Duplex LC | ||
Max Cable Distance | 20km | 10km | 40km | ||
Media | SMF | SMF | SMF | ||
Transmitter Type | EML | EML | EML | ||
TX Power | >-2dBm | >-7dBm | >-4dBm | ||
Receiver Sensitivity | -13dBm @5E-5 | -11.3dBm @5E-5 | -18.0dBm @5E-5 | ||
Power Consumption | 1.5W | 1.2W | 1.2W | ||
Ext. Temperature Range | -20℃to 80℃ | -20℃to 80℃ | -20℃to 80℃ | ||

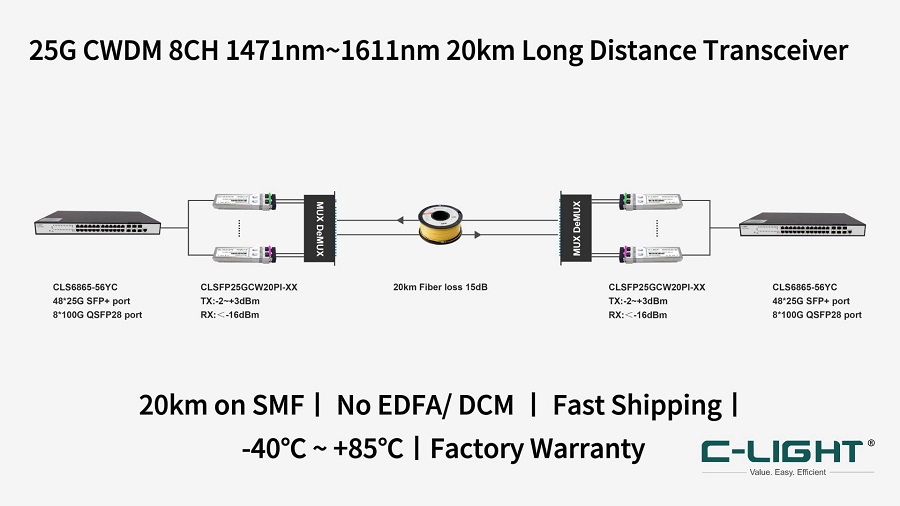

Application Graph |
