10G DWDM 96ch C-Band Tunable丨80km on SMF丨 Fast Shipping丨Factory Warranty |
CLSFP10GTDW26 |
l 10.3125Gbps data links l Single 3. 3V power supply l Duplex LC Connector l 80km with 9/125µm SMF l 50 GHz ITU channel spacing with integrated wavelength locker l Monolithically integrated full C-Band tunable transmitter VB l Hot-pluggable SFP+ footprint l Operating temperature: 0℃ to 70℃ l RoHS l Digital Diagnostic Monitor (DDM) l Maximum power dissipation of 1.5 W |
Specification | |||
Part Number | CLSFP10GTDW26 | Vendor | C-LIGHT |
Form Factor | SFP+ | Data Rate | 10.3125Gbps |
Connector | Duplex LC | Max Cable Distance | 80km |
Media | SMF | Channels | 1528.38~1563.86nm, total 90 |
Modulation | NRZ | Power Consumption | 1.5W |
Transmitter Type | Tunable Laser and MZ Modulator | Receiver Type | APD |
Power Budget | 25dB | Extinction Ratio | 8.2dB |
CDR | Yes | BER | 1E-12 |
TX Power | 0~5dBm | Receiver Overload | -8dBm |
EMC (Electro Magnetic Compatibility) | Supported | DDM/DOM Support | Yes |
Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
|
|
Protocols | SFP+ MSA Compliant | Application | OTN |

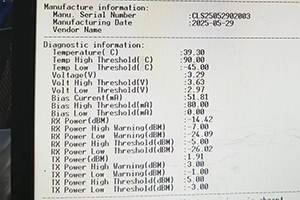

System Test | ||
Related Products | |||||
Part Number | CLSFP10GTDW26 | CLSFP10GTDWB16 | CLSFP10GDWB26-XX | ||
Data Rate (Max) | 10.3125Gbps | 10.3125Gbps | 10.3125Gbps | ||
Wavelength | C-Band 96CH Tunable | C-Band 96CH Tunable | C-Band 96CH FIXed | ||
Cable Distance (Max) | 80km | 40km | 80km | ||
Channel Spacing | 50GHz | 50GHz | 50GHz/100GHz | ||
TX Power | >0dBm | >-1dBm | >0dBm | ||
Receiver Sensitivity | -25dBm | -16dBm | -26dBm | ||
Power Consumption | 1.5W | 1.5W | 1.5W | ||
Operating Temperature | 0~70℃ | 0~70℃ | 0~70℃ | ||
Application Graph |
