Industrial CWDM MUX Single-Fiber Application Solution

1. What is an Industrial-Grade CWDM + MUX Single-Fiber Application Solution?

With the rapid development of industrial IoT, smart cities, railway transportation, and carrier metro networks, bandwidth demand continues to grow. However, fiber resources in access networks are often limited. Re-deploying fiber cables usually involves high construction costs, long deployment cycles, complex field environments, and service interruption risks. Therefore, maximizing network capacity over existing fiber resources has become a key concern.

CWDM (Coarse Wavelength Division Multiplexing) is an ideal solution to address this challenge.

2. What Are Industrial-Grade CWDM Optical Modules and MUX?

CWDM (Coarse Wavelength Division Multiplexing) is a technology that multiplexes multiple optical signals of different wavelengths onto a single fiber for transmission, enabling “one fiber, multiple services.”

The C-LIGHT industrial-grade CWDM MUX aggregates multiple CWDM wavelengths onto a single fiber, and the DEMUX at the remote end separates them back into individual wavelengths.

C-LIGHT Industrial CWDM MUX Key Specifications

https://www.c-light.com/products/details/CWDM_MUX.html

Parameter	Specification
Product Type	CWDM MUX/DEMUX
Number of Channels	18 channels
Wavelength Range	1270nm–1610nm
Fiber Type	SMF-28e
Single-Fiber Support	Yes
Insertion Loss	< 3.0 dB
Adjacent Channel Isolation	≥ 30 dB
Non-Adjacent Channel Isolation	≥ 40 dB
Return Loss	≥ 50 dB
Directivity	≥ 55 dB
Polarization Dependent Loss	≤ 0.1 dB
Max Optical Power	500 mW
Operating Temperature	-10°C ~ +70°C
Storage Temperature	-40°C ~ +85°C

The C-LIGHT industrial 2.5G/11.3G multi-rate optical module supports multiple operating rates, and works with the DEMUX at the remote end to separate both wavelength and data.

C-LIGHT 2.5G/11.3G Multi-Rate CWDM Optical Module Key Specifications

https://www.c-light.com/products/details/CWDM_10G_2.5G_1G_100M.html

Product Type	CWDM SFP+ Multi-Rate 11.3G/10.3G/2.5G/1.25G/100Mbps
Wavelength Range	18 channels, 1270nm–1610nm
Center Wavelength	Center Channel ±6.5nm
Transmit Power	2 ~ 6 dBm
Receiver Sensitivity	-22 dBm @ 11.3G/10.3G; -24 dBm @ 2.5G/1.25G/100Mbps
Spectral Width	≤ 1 nm
SMSR	≥ 35 dB
Extinction Ratio	≥ 4.5 dB
Optical Rise/Fall Time	≤ 2 ns
Eye Margin	≥ 20%
Receiver Overload	≥ -7 dBm
LOS De-Assert	≥ -25 dBm
LOS Assert	≤ -30 dBm
Operating Temperature	-40°C ~ +85°C

3. A Complete CWDM Solution Is More Than Just a MUX

CWDM optical modules
CWDM MUX/DEMUX
Single-mode fiber link

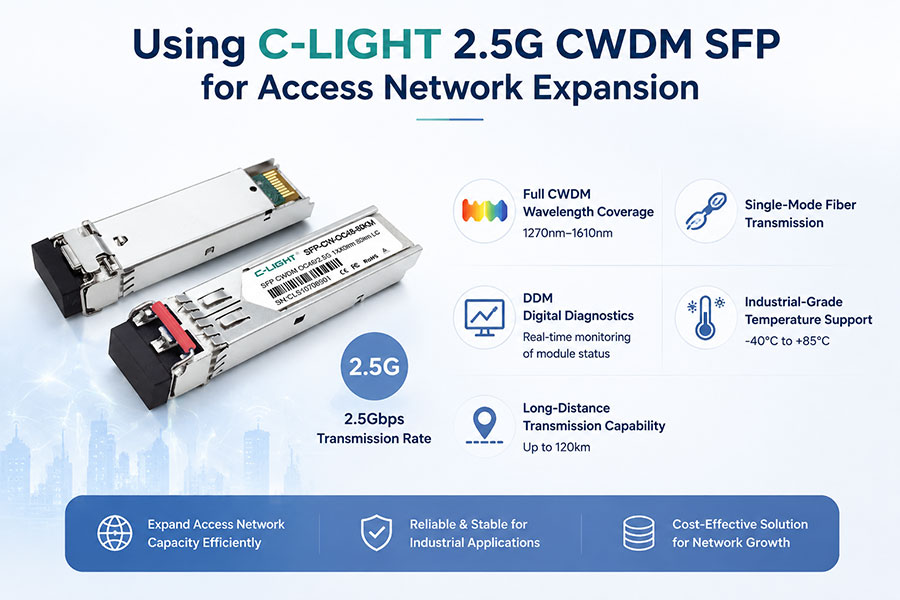

4. Using C-LIGHT 2.5G CWDM SFP for Access Network Expansion


2.5Gbps transmission rate
Full CWDM wavelength coverage (1270nm–1610nm)
Single-mode fiber transmission
DDM digital diagnostics
Industrial-grade temperature support
Long-distance transmission capability

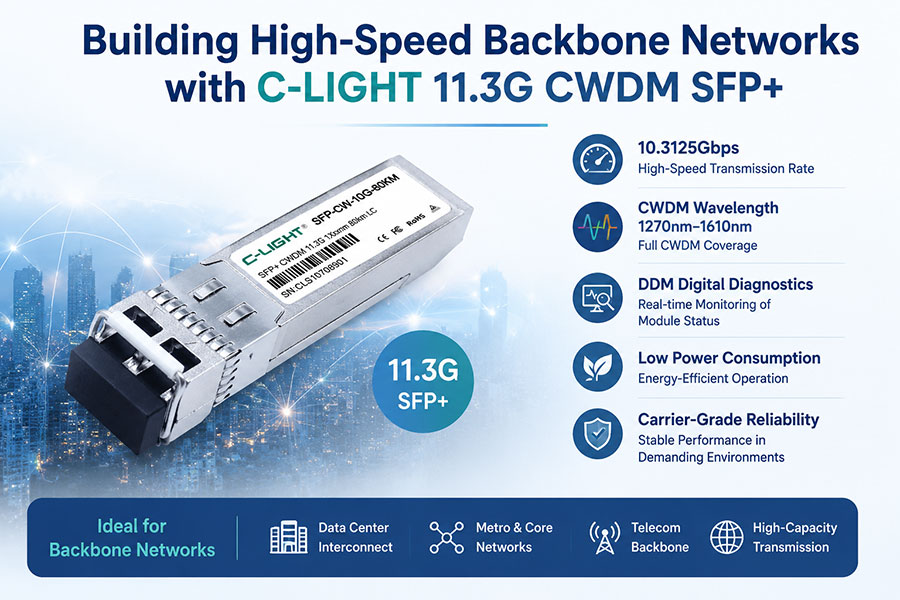

5. Building High-Speed Backbone Networks with C-LIGHT 11.3G CWDM SFP+


10.3125Gbps transmission rate
CWDM wavelength 1270nm–1610nm
DDM digital diagnostics
Low power consumption
Carrier-grade reliability

6. Advantages of Industrial CWDM Solution

Maximum fiber utilization
Flexible network evolution
Cost reduction
Industrial reliability

7. Typical Industry Applications

Smart Grid
Rail Transit
Industrial Parks
Carrier Metro Networks

8. Why Choose C-LIGHT CWDM Solution?

Industrial-grade CWDM MUX
2.5G CWDM SFP
11.3G CWDM SFP+
Full wavelength compatibility
One-stop solution

9. Frequently Asked Questions (FAQ)

Q1: How many wavelengths does the C-LIGHT industrial CWDM MUX support?

A1: The C-LIGHT Industrial CWDM MUX supports 18 CWDM wavelengths, covering the range from 1270 nm to 1610 nm, enabling full CWDM spectrum planning.

Q2: Must CWDM MUX be used with CWDM optical modules?

A2: Yes. A CWDM system typically consists of three components:

CWDM optical transceivers
CWDM MUX/DEMUX
Single-mode fiber

CWDM transceivers generate optical signals at specific wavelengths, while the MUX combines multiple wavelengths onto a single fiber. Therefore, they must be used together.

Q3: What are the requirements for optical modules?

A3: Yes. You must use standard dual-fiber CWDM colored optical transceivers, rather than standard BiDi transceivers or gray optics (such as standard 1310 nm modules).

Configuration example:
If Channel 1 on the MUX at Site A is configured as 1270 nm TX / 1290 nm RX, then the switch at Site A should be equipped with a dual-fiber CWDM transceiver with a 1270 nm transmit wavelength. Connect the transceiver’s TX port to the MUX's 1270 nm port and its RX port to the MUX's 1290 nm port.

Q4: How do you match CWDM modules?

A4:The key selection criterion is the transceiver’s transmit (TX) wavelength.

For example, if the 1270 nm channel on the MUX at Site A is used for transmission, a 1270 nm TX CWDM transceiver should be installed at that site. At Site B, where the corresponding channel is used for reception, a 1290 nm TX CWDM transceiver should be installed.

In simple terms, the TX wavelengths at the two ends of the link must be paired in an alternating manner.

Q5: Does MUX/DEMUX require specific data rates?

A5: No. CWDM Mux/Demux devices are passive, protocol-transparent, and rate-transparent. They can support optical transceivers operating at different data rates, such as 1G, 11.3G, and 25G, as well as different protocols including Ethernet and Fibre Channel, provided that the transceiver wavelength matches the corresponding Mux/Demux channel.

Q6: Can CWDM MUX work with OADM?

A6: Yes. Mux/Demux units are typically deployed at terminal sites, while OADMs are deployed at intermediate sites to add or drop specific wavelengths. The key requirement is that the OADM add/drop wavelengths must precisely match the channel wavelengths of the Mux/Demux.

Q7: Can single-fiber and dual-fiber systems mix?

A7: Generally, no. The two systems are based on different operating principles. Single-fiber CWDM systems use paired wavelengths for transmission and reception, whereas dual-fiber CWDM systems use the same wavelength in both directions over separate fibers. Therefore, matching device types should normally be used in pairs.

Q8: Can dual-fiber MUX be used as single-fiber?

A8: While it may be technically possible, this is not a standard deployment method. It requires very careful wavelength planning and configuration, increases the risk of errors, and is not recommended as a long-term solution.

Q9: Difference between industrial and commercial MUX?

A9: Industrial-grade products are designed for harsh environments. They typically feature a wider operating temperature range (e.g., -40°C to +85°C) and provide higher reliability and stability, making them suitable for applications such as outdoor cabinets and industrial sites.

Q10: What data rates are supported?

A10:The C-LIGHT CWDM MUX supports CWDM optical transceivers at multiple data rates, including:

1.25G CWDM SFP
2.5G CWDM SFP
11.3G CWDM SFP+
25G CWDM SFP28 (depending on the network design)

Among these, 2.5G CWDM is commonly used in access-layer networks, while 11.3G CWDM is typically deployed in aggregation and backbone networks.

Q11: Can 2.5G and 11.3G be mixed?

A11: Yes. CWDM systems multiplex signals based on wavelengths, not data rates. Therefore, optical transceivers with different rates can coexist within the same CWDM system as long as they use different CWDM wavelengths.

Q12: Can CWDM MUX be customized?

A12: Yes, wavelength, channel count, connectors, and packaging.
