1. Introduction
With the continuous evolution of AI computing clusters, cloud data centers, 5G transport networks, and enterprise networking, optical transceivers are moving toward higher speeds, higher port density, and lower power consumption.
In addition to the widely deployed CSFP, newer form factors such as DSFP, SFP-DD, and SFP112 are becoming important options for 100G and next-generation high-speed networking.
Although all four belong to the category of compact optical modules, each has unique characteristics in architecture, transmission capability, application scenarios, and future positioning. This article provides our perspective on their differences and development trends.

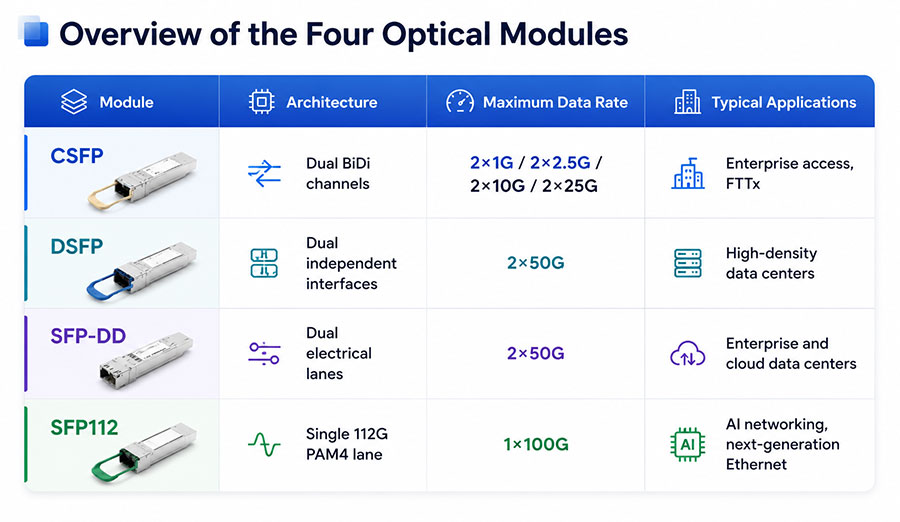

2. Overview of the Four Optical Modules
3. Architecture Comparison

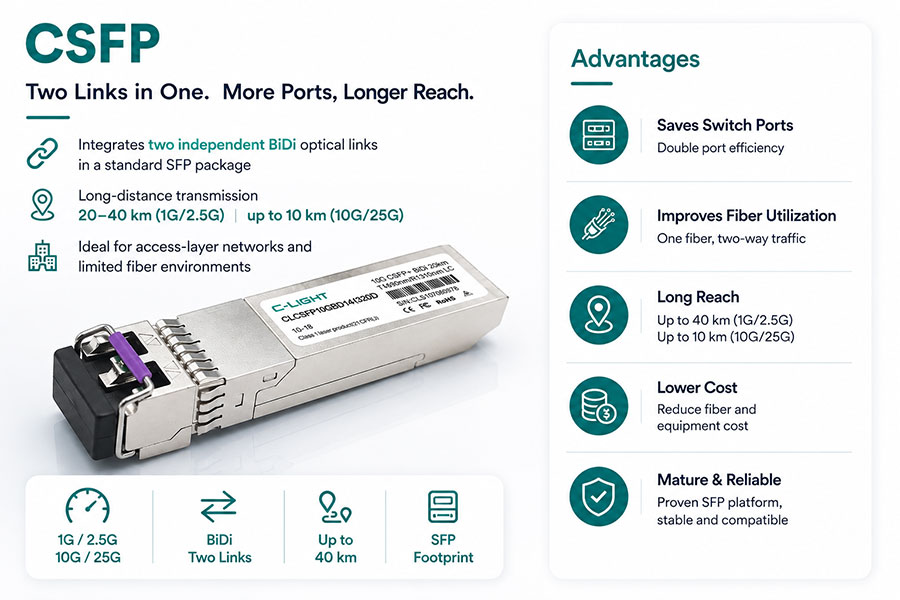

CSFP
CSFP integrates two independent BiDi optical links into a standard SFP-sized package, significantly improving port utilization while supporting long-distance transmission (20–40 km for 1G/2.5G and up to 10 km for 10G/25G). It is particularly suitable for access-layer networks and environments with limited fiber resources.
Advantages
Saves switch port resources
Improves fiber utilization
Suitable for transmission beyond 10 km
Lower deployment cost
Mature and reliable technology

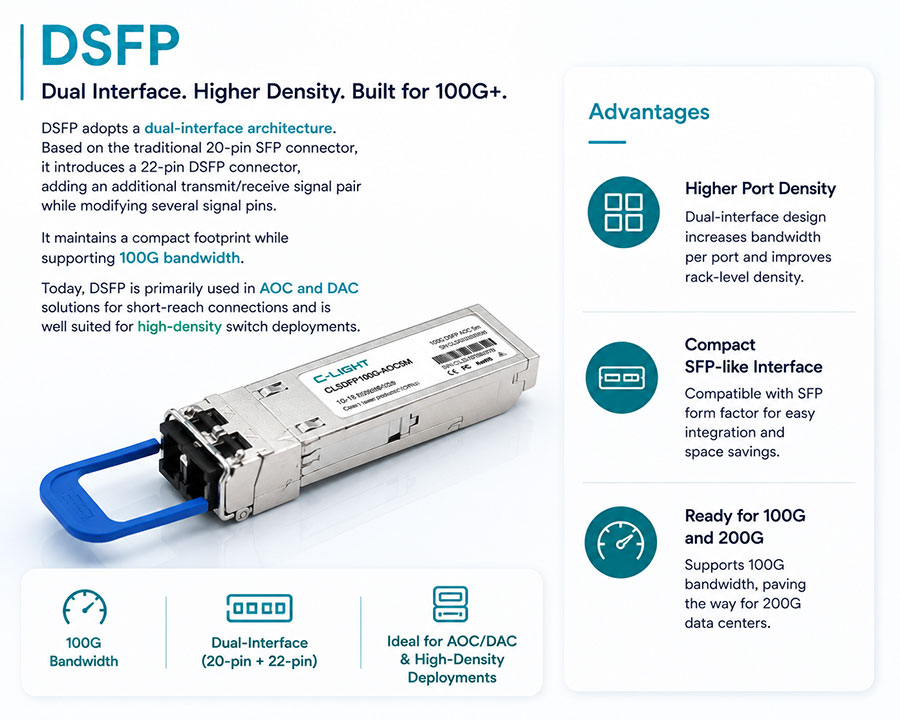

DSFP
DSFP adopts a dual-interface architecture. Based on the traditional 20-pin SFP connector, it introduces a 22-pin DSFP connector, adding an additional transmit/receive signal pair while modifying several signal pins.
It maintains a compact footprint while supporting 100G bandwidth. Today, DSFP is primarily used in AOC and DAC solutions for short-reach connections and is well suited for high-density switch deployments.
100G AOC QSFP28/SFP28 Cable 0.5M~30M丨C-LIGHT
Advantages
Higher port density
Compact SFP-like optical interface
Designed for next-generation 100G and 200G data centers

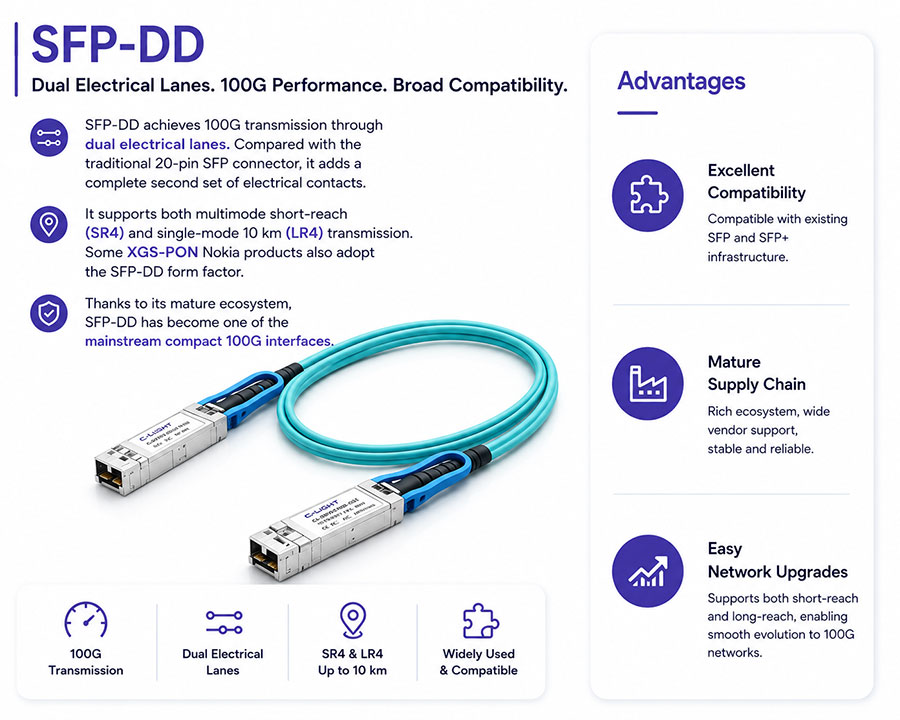

SFP-DD
SFP-DD achieves 100G transmission through dual electrical lanes. Compared with the traditional 20-pin SFP connector, it adds a complete second set of electrical contacts.
It supports both multimode short-reach and single-mode 10 km transmission. In addition, some XGS-PON Nokia products also adopt the SFP-DD form factor. Thanks to its mature ecosystem, SFP-DD has become one of the mainstream compact 100G interfaces.
Advantages
Excellent compatibility
Mature supply chain
Easy network upgrades

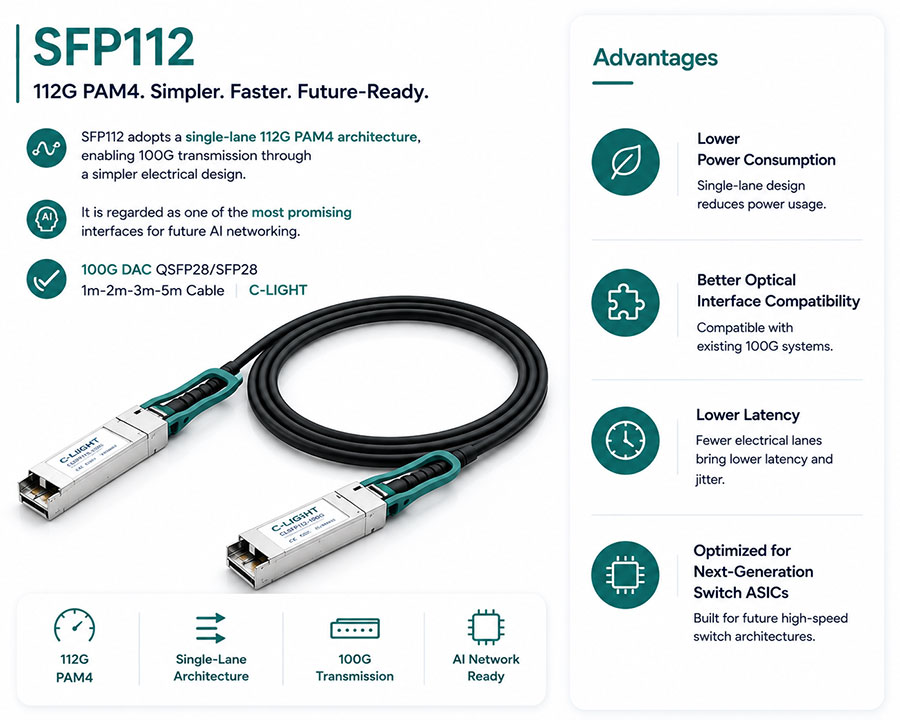

SFP112
SFP112 adopts a single-lane 112G PAM4 architecture, enabling 100G transmission through a simpler electrical design. It is regarded as one of the most promising interfaces for future AI networking.
100G DAC QSFP28/SFP28 1m-2m-3m-5m Cable丨C-LIGHT
Advantages
Lower power consumption
Better optical interface compatibility
Lower latency
Optimized for next-generation switch ASICs

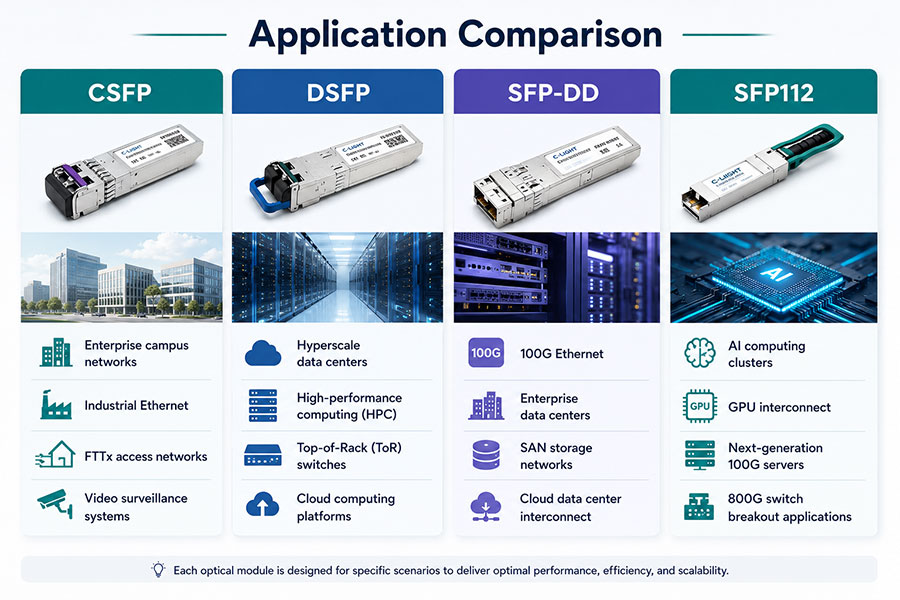

4. Application Comparison
CSFP
Enterprise campus networks
Industrial Ethernet
FTTx access networks
Video surveillance systems
DSFP
Hyperscale data centers
High-performance computing (HPC)
Top-of-Rack (ToR) switches
Cloud computing platforms
SFP-DD
100G Ethernet
Enterprise data centers
SAN storage networks
Cloud data center interconnect
SFP112
AI computing clusters
GPU interconnect
Next-generation 100G servers
800G switch breakout applications

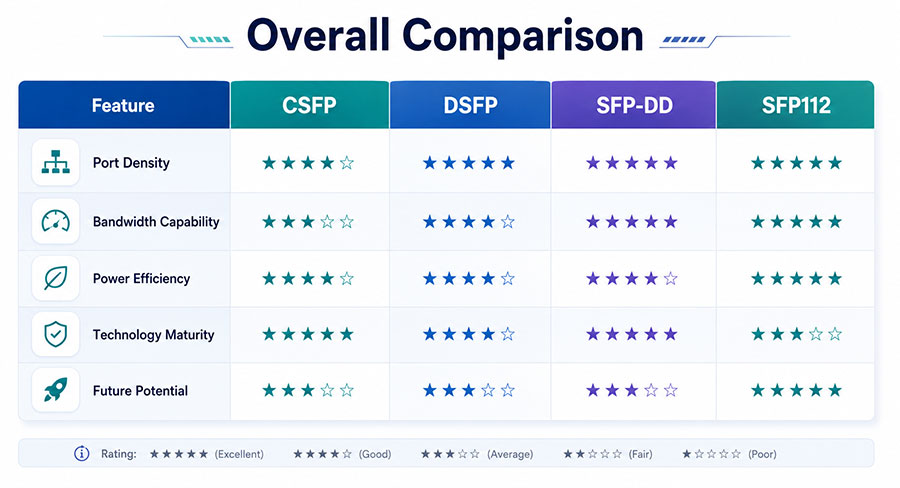

5. Overall Comparison

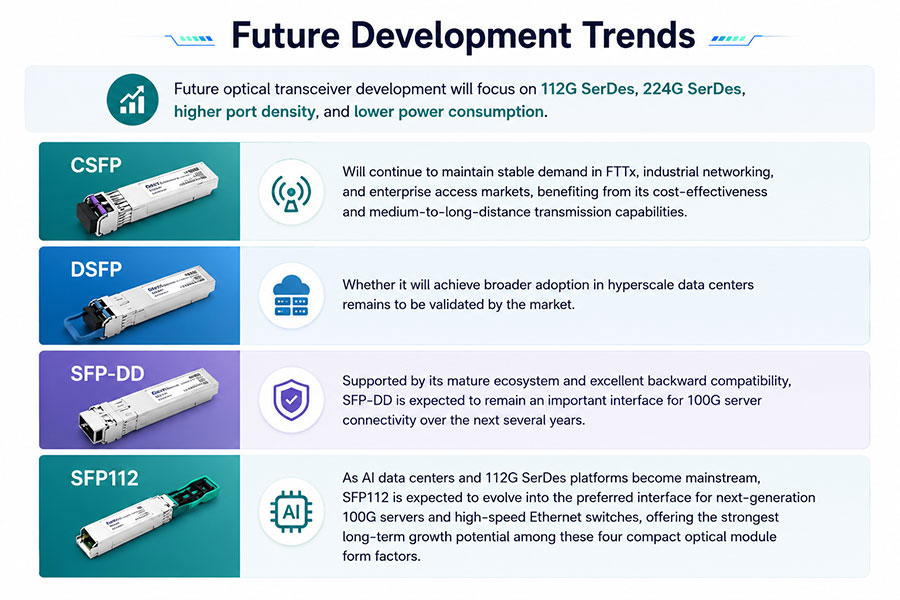

6. Future Development Trends
Future optical transceiver development will focus on 112G SerDes, 224G SerDes, higher port density, and lower power consumption.
CSFP: Will continue to maintain stable demand in FTTx, industrial networking, and enterprise access markets, benefiting from its cost-effectiveness and medium-to-long-distance transmission capabilities.
DSFP: Whether it will achieve broader adoption in hyperscale data centers remains to be validated by the market.
SFP-DD: Supported by its mature ecosystem and excellent backward compatibility, SFP-DD is expected to remain an important interface for 100G server connectivity over the next several years.
SFP112: As AI data centers and 112G SerDes platforms become mainstream, SFP112 is expected to evolve into the preferred interface for next-generation 100G servers and high-speed Ethernet switches, offering the strongest long-term growth potential among these four compact optical module form factors.
CSFP vs DSFP vs SFP-DD vs SFP112 FAQ
Q1. What is the difference between CSFP, DSFP, SFP-DD, and SFP112 optical modules?
Answer: CSFP, DSFP, SFP-DD, and SFP112 are compact optical module form factors designed for different network requirements. CSFP focuses on improving port density by integrating two optical channels into an SFP-sized module. DSFP supports higher-density short-reach connections for next-generation data centers. SFP-DD uses dual electrical lanes to support 100G connectivity with strong ecosystem compatibility, while SFP112 adopts a single-lane 112G PAM4 architecture for future high-speed networking applications.
Q2. Why are compact optical module form factors important for modern networks?
Answer: Compact optical form factors help network operators increase port density, reduce equipment footprint, and improve power efficiency. As networks evolve toward 100G, 200G, and AI-driven workloads, smaller and more efficient optical interfaces become increasingly important for data centers, cloud networks, and high-density access applications.
Q3. What are the advantages of CSFP optical transceivers?
Answer: CSFP (Compact Small Form-Factor Pluggable) optical transceivers improve fiber and port utilization by integrating two independent optical channels into a single SFP-sized package. They are widely used in FTTx, access networks, enterprise networks, and scenarios where operators need higher connection density without increasing equipment size.
Q4. What is the difference between DSFP and SFP-DD optical modules?
Answer: DSFP and SFP-DD are both designed for compact high-speed networking, but they target different applications. DSFP focuses on high-density short-distance connections such as DAC and AOC applications in data centers. SFP-DD uses a dual-lane electrical interface to support 100G transmission and provides stronger ecosystem maturity and compatibility for enterprise and cloud networking environments.
Q5. Why is SFP112 considered important for next-generation 100G networking?
Answer: SFP112 uses a single 112G PAM4 electrical lane to achieve 100G transmission with a simpler architecture. Compared with multi-lane solutions, SFP112 can provide lower power consumption, reduced electrical complexity, and improved compatibility with next-generation switch ASICs, making it suitable for future AI networking and high-speed Ethernet applications.
Q6. Should I choose CSFP, DSFP, SFP-DD, or SFP112 for my network deployment?
Answer: The choice depends on application requirements. CSFP is suitable for access networks requiring higher port density and fiber efficiency. DSFP is designed for compact short-reach data center connections. SFP-DD is a practical choice for 100G deployments requiring ecosystem compatibility, while SFP112 is better suited for next-generation AI networks and high-speed Ethernet platforms requiring lower power and higher efficiency.
Q7. What are the typical applications of CSFP, DSFP, SFP-DD, and SFP112 modules?
Answer: CSFP is commonly used in FTTx, enterprise access, and industrial networking. DSFP is mainly applied in high-density data centers, HPC systems, and ToR switch connections. SFP-DD is used for 100G Ethernet, enterprise data centers, and cloud interconnects. SFP112 targets AI clusters, GPU networking, next-generation servers, and high-speed switch platforms.
Q8. Will SFP112 replace CSFP, DSFP, and SFP-DD in future optical networks?
Answer: SFP112 is expected to become an important interface for future high-speed networking, but it will not completely replace CSFP, DSFP, or SFP-DD. Different form factors will continue to coexist because they address different market needs. CSFP remains valuable for access networks, SFP-DD benefits from ecosystem maturity, DSFP serves compact high-density connections, and SFP112 supports future AI and 100G+ networking evolution.
>
>
>
>
>
>
>
>
