1. What Is a CSFP Transceiver?
CSFP (Compact Small Form-Factor Pluggable) is an advanced optical transceiver form factor designed to significantly increase port density in networking equipment. Unlike traditional SFP modules that support a single optical channel, a CSFP module can support two independent optical channels within the same physical footprint.
This innovative architecture allows network operators to double the number of fiber connections without increasing equipment size, making CSFP technology particularly valuable in environments where rack space and port availability are limited.
As telecom networks continue evolving toward higher subscriber densities and fiber-to-the-home (FTTH) deployments, CSFP modules have become an attractive solution for maximizing infrastructure utilization while controlling deployment costs.
For access networks requiring Gigabit connectivity, the C-LIGHT 1.25G CSFP Optical Transceiver offers a compact and efficient solution for increasing port density while maintaining reliable optical performance:
https://c-light.com/products/details/1.25G_CSFP.html

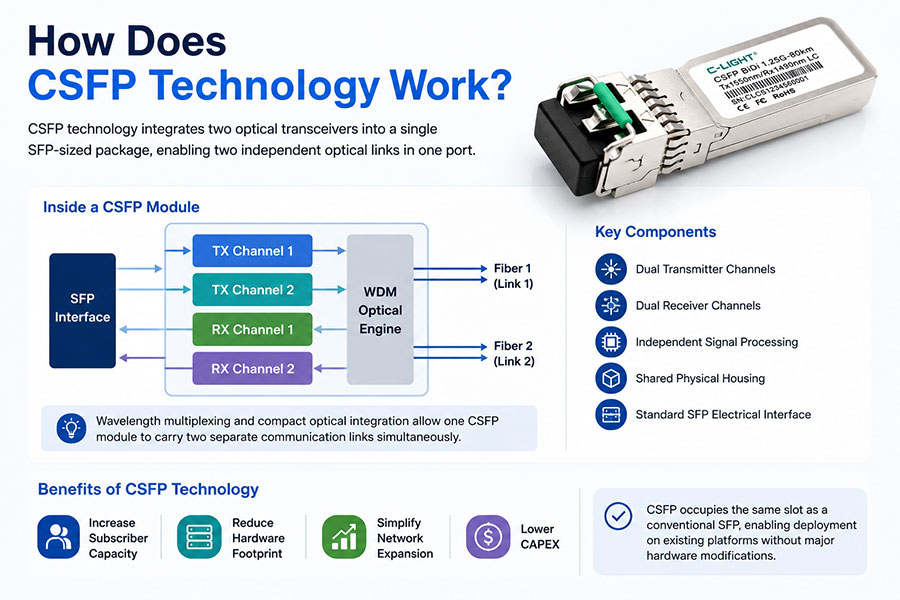

2. How Does CSFP Technology Work?
The key innovation behind CSFP technology lies in its ability to integrate two optical transceivers into a single SFP-sized package.
A typical CSFP module consists of:
Dual transmitter channels
Dual receiver channels
Independent signal processing paths
Shared physical housing
Standard SFP electrical interface
Through wavelength multiplexing and compact optical integration, a single CSFP module can handle two separate communication links simultaneously.
This design enables network operators to:
Increase subscriber capacity
Reduce hardware footprint
Simplify network expansion
Lower capital expenditures (CAPEX)
Because the module occupies the same slot as a conventional SFP, existing platforms can often support CSFP deployments without major hardware modifications.

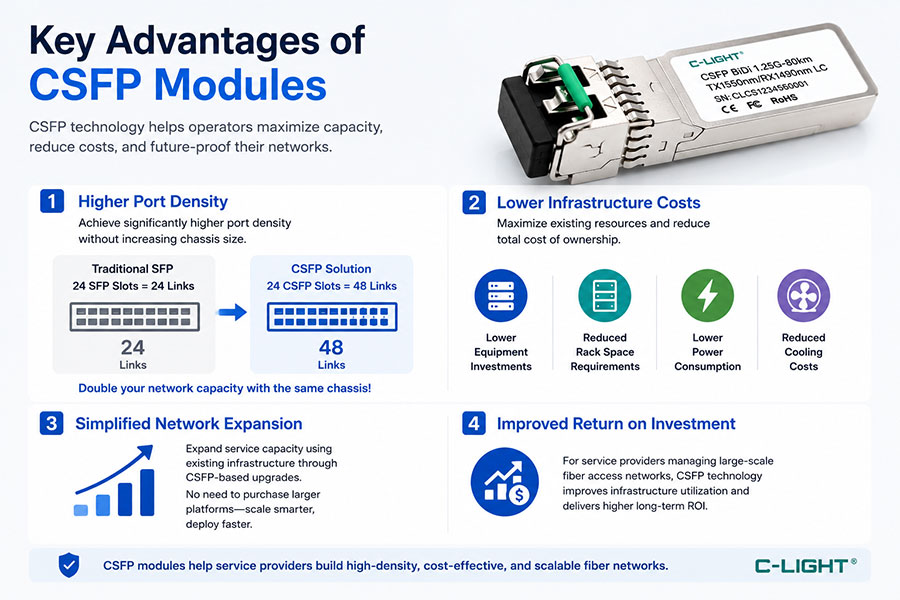

3. Key Advantages of CSFP Modules
Higher Port Density
One of the primary reasons network operators adopt CSFP technology is the ability to achieve significantly higher port density.
For example:
24 SFP slots = 24 links
24 CSFP slots = 48 links
This effectively doubles network capacity without increasing chassis size.
Lower Infrastructure Costs
By maximizing existing switch and OLT port resources, CSFP deployments help reduce:
Equipment investments
Rack space requirements
Power consumption
Cooling costs
Simplified Network Expansion
Instead of purchasing larger network platforms, operators can expand service capacity using existing infrastructure through CSFP-based upgrades.
Improved Return on Investment
For service providers managing large-scale fiber access networks, CSFP technology can substantially improve infrastructure utilization and long-term ROI.

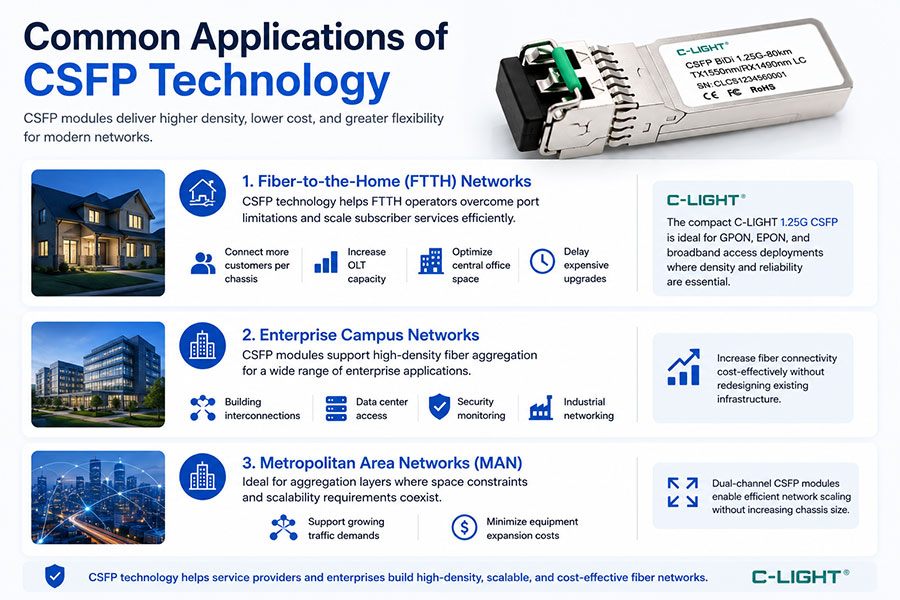

4. Common Applications of CSFP Technology
Fiber-to-the-Home (FTTH) Networks
FTTH operators often face challenges related to port availability as subscriber numbers grow.
CSFP modules allow operators to:
Connect more customers per chassis
Increase OLT capacity
Optimize central office space
Delay expensive hardware upgrades
The compact design of the C-LIGHT 1.25G CSFP makes it particularly suitable for GPON, EPON, and broadband access deployments where density and reliability are critical.
Product Link:
https://c-light.com/products/details/1.25G_CSFP.html
Enterprise Campus Networks
Large enterprise networks frequently require high-density fiber aggregation for:
Building interconnections
Data center access
Security monitoring systems
Industrial networking
CSFP modules provide a cost-effective way to increase fiber connectivity without redesigning existing infrastructure.
Metropolitan Area Networks (MAN)
Metro network providers often deploy CSFP technology in aggregation layers where space constraints and scalability requirements coexist.
By utilizing dual-channel optical modules, providers can support growing traffic demands while minimizing equipment expansion costs.

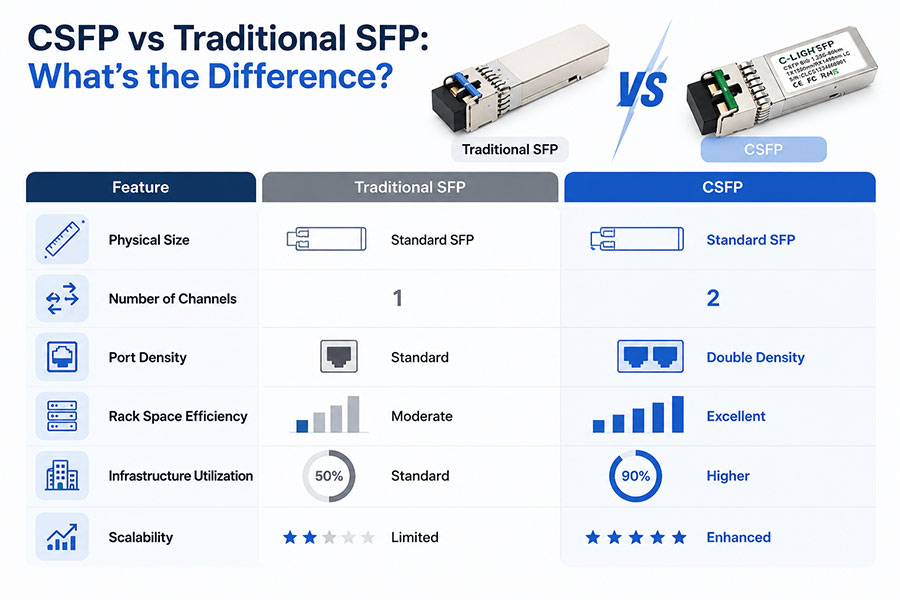

5. CSFP vs Traditional SFP: What's the Difference?
The most significant advantage of CSFP is that it delivers twice the connection capacity without requiring additional physical slots.
For operators facing increasing bandwidth and subscriber demands, this efficiency can translate into substantial cost savings over time.

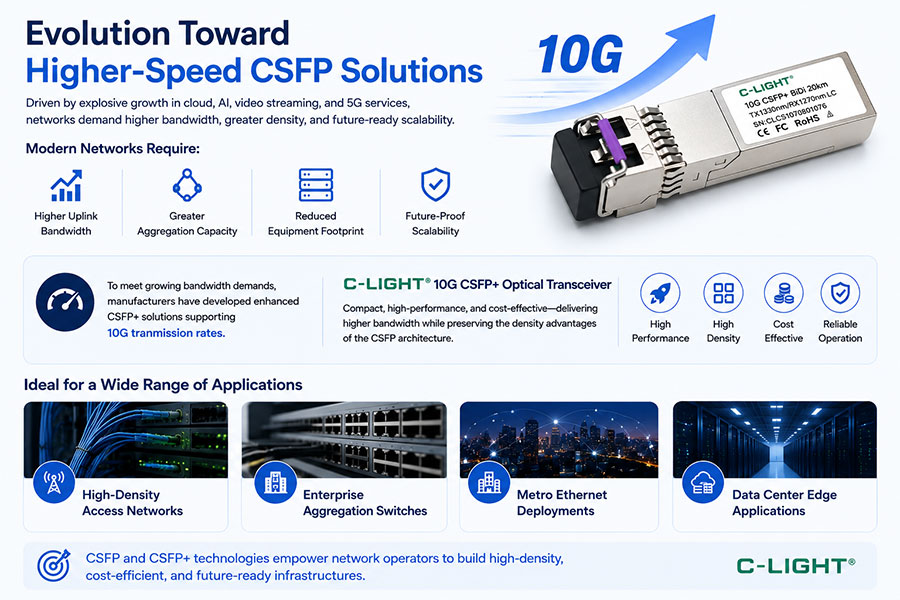

6. Evolution Toward Higher-Speed CSFP Solutions
As network traffic continues to grow due to cloud computing, AI workloads, video streaming, and 5G services, demand for higher-speed compact optical modules is increasing.
Modern network architectures increasingly require:
Higher uplink bandwidth
Greater aggregation capacity
Reduced equipment footprint
Future-proof scalability
To address these requirements, manufacturers have developed enhanced CSFP+ solutions capable of supporting 10G transmission rates.
The C-LIGHT 10G CSFP+ Optical Transceiver provides a compact, high-performance option for operators seeking higher bandwidth while maintaining the density advantages of the CSFP architecture.
Product Link:
https://c-light.com/products/details/10G_CSFP.html
These modules are particularly beneficial in:
High-density access networks
Enterprise aggregation switches
Metro Ethernet deployments
Data center edge applications
7. Why Telecom Operators Continue to Adopt CSFP
Several industry trends continue driving CSFP adoption worldwide:
Subscriber Growth
Broadband penetration continues expanding globally, increasing the need for scalable access infrastructure.
Space Constraints
Many central offices and telecom facilities have limited physical space available for network expansion.
Cost Optimization
Operators seek solutions that maximize existing investments while delaying costly platform upgrades.
Fiber Network Expansion
The rapid growth of FTTH, FTTB, and enterprise fiber deployments requires higher-density optical connectivity solutions.
CSFP technology directly addresses all of these challenges by providing greater capacity within existing infrastructure footprints.
8. Choosing the Right CSFP Solution
When selecting a CSFP transceiver, network engineers should evaluate:
Transmission distance
Operating wavelength
Compatibility requirements
Environmental specifications
Network architecture
Future bandwidth demands
For Gigabit access deployments, the C-LIGHT 1.25G CSFP provides a proven solution for maximizing port density and reducing infrastructure costs.
For higher-capacity aggregation and transport applications, the C-LIGHT 10G CSFP+ delivers enhanced bandwidth while preserving the compact advantages of the CSFP platform.
By choosing the appropriate CSFP solution, operators can build scalable, cost-effective optical networks that support future growth without excessive infrastructure investment.
Frequently Asked Questions (FAQ)
Q1: Can I plug a CSFP module into a regular SFP port?
A: Physically, yes, as they share the same dimensions. However, if the switch port does not natively support CSFP protocols (Option 2 pinning), the switch will either fail to recognize the module or only recognize the first channel, leaving the second channel inactive.
Q2: What is the difference between CSFP Option 1 and Option 2?
A: Option 1 and Option 2 refer to different pin configurations defined by the CSFP MSA. Option 2 is the most widely adopted standard in the industry today for gigabit and 10G compact deployments because it optimizes the mechanical and electrical pin layouts for dual-channel operations.
Ready to Upgrade Your Network Capacity?
Don't let physical space limit your business growth. C-light provides reliable, cost-effective, and fully compatible CSFP solutions tailored to your infrastructure needs.
Conclusion
CSFP technology represents one of the most efficient methods of increasing optical network density without expanding equipment footprints. By integrating dual optical channels into a standard SFP-sized module, CSFP transceivers enable telecom operators, ISPs, enterprises, and metro network providers to significantly improve capacity utilization and deployment efficiency.
Whether deploying Gigabit access services with the C-LIGHT 1.25G CSFP or upgrading network aggregation with the C-LIGHT 10G CSFP+, CSFP technology continues to offer a practical and cost-effective path toward higher-density optical networking.
>
>
>
>
>
>
