With the rapid development of FTTH (Fiber to the Home), enterprise private networks, smart campuses, industrial internet, and high-definition video surveillance, Passive Optical Network (PON) technology has become the mainstream solution for modern fiber access networks.
At the same time, network infrastructure is evolving toward greater miniaturization, integration, and intelligence. Traditional standalone ONU devices are facing challenges related to installation space, deployment complexity, and maintenance efficiency.
An ONU STICK is a GPON ONU module packaged in a standard SFP form factor. By integrating the functionality of a traditional ONU into a compact SFP module, it can be directly inserted into PCs, switches, routers, wireless access points, IP cameras, and industrial devices, enabling direct connectivity to GPON networks.
Compared with conventional ONU solutions, ONU STICK offers significant advantages, including compact size, plug-and-play deployment, flexible installation, broad compatibility, and lower overall costs. As a result, it is becoming an increasingly popular choice among telecom operators, system integrators, and enterprise network builders.
1. What Is an ONU STICK?
An ONU STICK is a GPON optical network unit integrated into a standard SFP module.
By using an ONU STICK, devices equipped with SFP ports can connect directly to a GPON network without requiring an external standalone ONU. This enables rapid integration of fiber access capabilities into a wide range of networking equipment.
The C-LIGHT GPON ONU SFP STICK (CLGPONONUSTK) provides the following key features:
GPON access
Automatic ONU registration
SN authentication
LOID authentication
OMCI management
VLAN service support
QoS functionality
Remote configuration and maintenance
In essence, an ONU STICK modularizes traditional ONU functionality, making fiber access more flexible, efficient, and cost-effective.

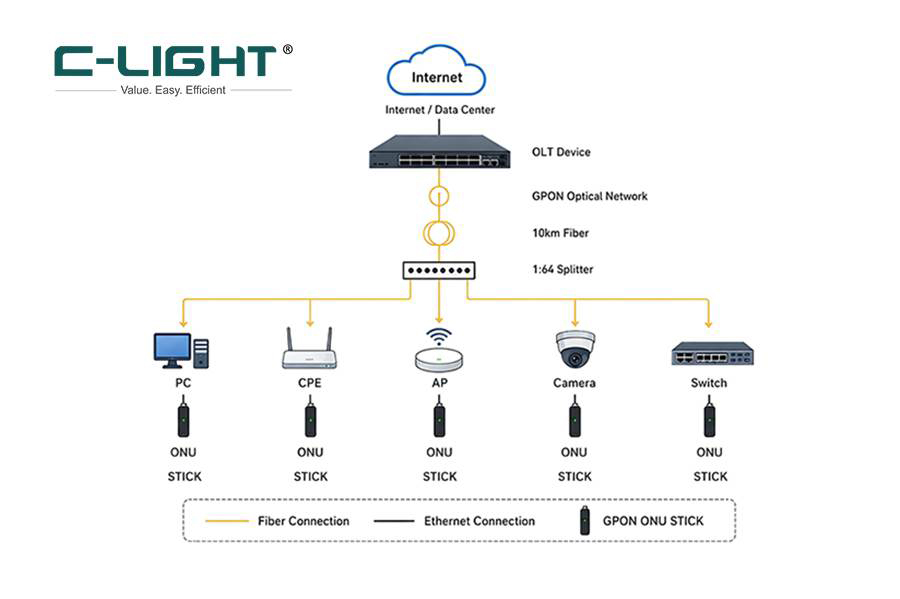

2. Typical GPON ONU STICK Network Architecture
In a standard GPON network, the ONU STICK functions as the subscriber-side ONU terminal. It connects to the OLT through the Optical Distribution Network (ODN), enabling conversion between optical signals and Ethernet traffic.
Network Components
A typical GPON ONU STICK deployment includes:
Internet / Data Center
OLT (Optical Line Terminal)
ODN (Optical Distribution Network)
Fiber backbone links
Passive optical splitter (1:64)
ONU STICK
End-user devices

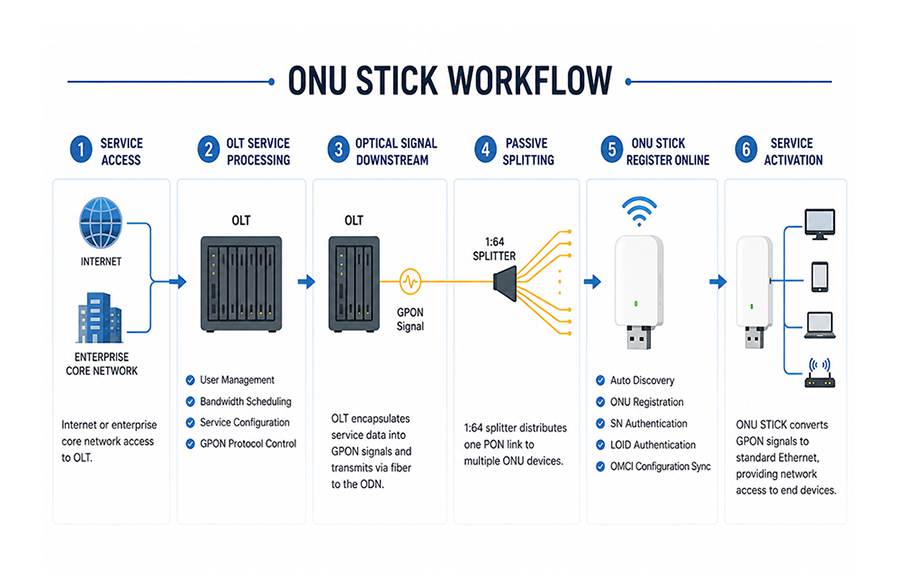

3. ONU STICK Working Process
Step 1: Service Access
Internet traffic or enterprise core network services are connected to the OLT platform.
Step 2: OLT Service Processing
The OLT performs:
Subscriber management
Bandwidth allocation
Service provisioning
GPON protocol control
Step 3: Optical Signal Transmission
The OLT encapsulates service data into GPON frames and transmits them through the fiber network.
Step 4: Passive Optical Splitting
A 1:64 optical splitter distributes a single PON link to multiple ONU terminals.
Step 5: ONU STICK Registration
The ONU STICK establishes communication with the OLT and completes:
Auto discovery
ONU registration
SN authentication
LOID authentication
OMCI configuration synchronization
Step 6: Service Activation
The ONU STICK converts GPON optical signals into standard Ethernet signals, providing network access for connected devices.
4. Key ONU STICK Application Scenarios
Scenario 1: Direct Fiber Connectivity for PCs
As enterprise networks, industrial control systems, and testing platforms increasingly require high-speed fiber access, ONU STICK enables PCs and other SFP-enabled devices to connect directly to GPON networks.
Typical Applications
Enterprise workstations
Network testing platforms
Data acquisition terminals
Industrial PCs
Laboratory equipment
Benefits
Reduced network hierarchy
Lower deployment costs
Space-saving installation
Improved network stability
Simplified compatibility testing
Scenario 2: CPE Broadband Access
ONU STICK can be integrated directly into home gateways, enterprise routers, and customer premises equipment (CPE) to provide GPON broadband connectivity.
Typical Applications
FTTH broadband services
Enterprise leased lines
SOHO networks
Commercial broadband deployments
Benefits
Plug-and-play deployment
Reduced device count
Simplified installation and maintenance
Space-efficient design
Scenario 3: Wireless AP Fiber Backhaul
With the widespread adoption of Wi-Fi 6 and Wi-Fi 7, wireless access points require increasingly higher uplink bandwidth.
ONU STICK can be embedded directly into SFP-enabled wireless APs, delivering fiber connectivity directly to the access point.
Typical Applications
Campus networks
Hotel Wi-Fi systems
Hospital networks
Smart campuses
Commercial complexes
Benefits
High-bandwidth connectivity
Simplified cabling
Fewer intermediate devices
Enhanced network reliability
Scenario 4: Video Surveillance Systems
High-definition video surveillance systems demand large bandwidth and long-distance transmission capabilities.
ONU STICK can be deployed in IP cameras (IPC) and video monitoring terminals, enabling long-range video transport over GPON networks.
Typical Applications
Smart cities
Traffic monitoring
Campus security
Educational institutions
Industrial surveillance
Benefits
Long-distance transmission
Reduced fiber deployment costs
Scalable network expansion
Improved system stability
Scenario 5: Enterprise Switch Connectivity
For enterprise campuses and commercial buildings, ONU STICK can be installed directly into switch SFP ports, allowing switches to access GPON networks without external ONU devices.
Typical Applications
Enterprise campuses
Commercial buildings
Hotels
Educational institutions
Benefits
Direct fiber connection to switches
Improved network scalability
Simplified access-layer architecture
Lower infrastructure costs
Scenario 6: Industrial Internet Access
Industrial automation and smart manufacturing environments require highly reliable fiber connectivity for critical operations.
ONU STICK can be integrated into industrial gateways, industrial Ethernet switches, and edge computing devices.
Typical Applications
Smart manufacturing
Power utilities
Oil and gas facilities
Railway systems
Smart energy networks
Benefits
High-reliability connectivity
Long-distance deployment support
Reduced hardware complexity
Enhanced system stability
5. ONU-to-OLT Interoperability Testing
In addition to production deployments, ONU STICK is widely used by telecom operators and equipment manufacturers as a testing terminal for interoperability validation.
It enables rapid verification of compatibility with different OLT platforms.
Registration Testing
Auto Discovery
Auto Registration
SN Authentication
LOID Authentication
OMCI Management Testing
Parameter configuration
Remote management
Configuration synchronization
Service Validation
Internet services
VLAN services
QoS functionality
Multicast services
Performance Testing
Throughput testing
Latency testing
Packet loss testing
Long-term stability testing
6. Multi-Vendor OLT Compatibility Testing
ONU STICK modules are typically tested with major OLT vendors to ensure interoperability and reliable deployment.
Supported OLT Platforms

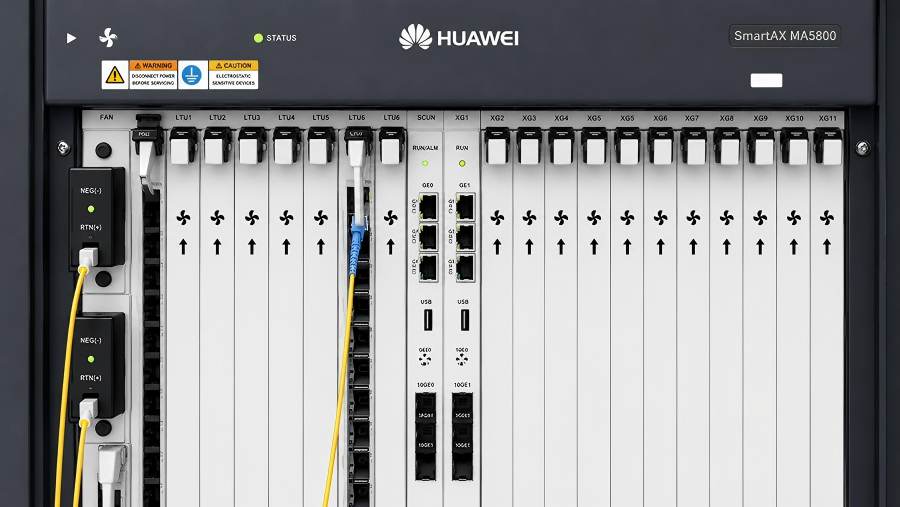

Huawei MA5800 Series

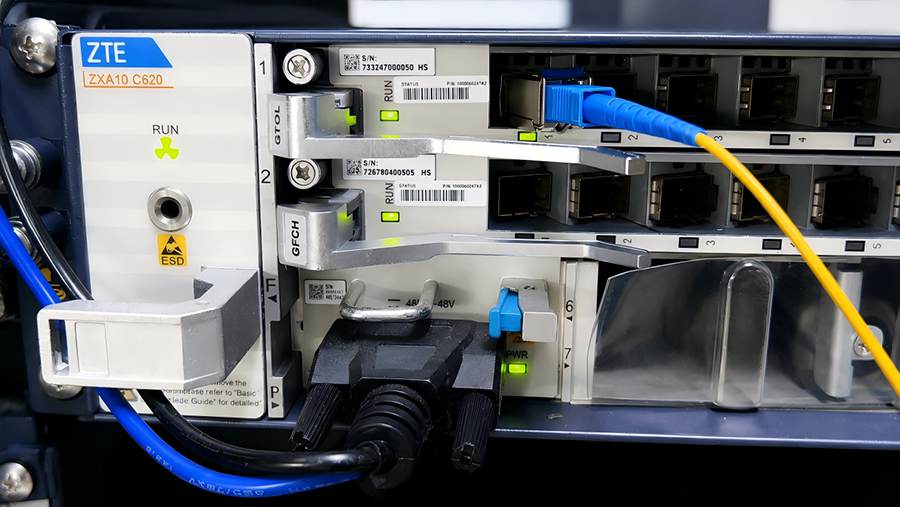

ZTE C600/C300 Series
Nokia 7360 Series

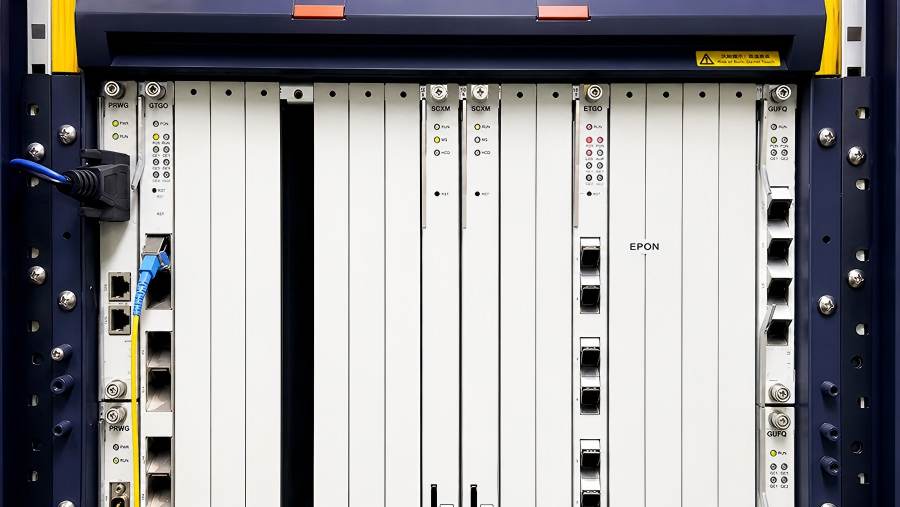

FiberHome OLT
Raisecom OLT
VSOL OLT
BDCOM OLT
C-Data OLT
HSGQ OLT
Ubiquiti OLT
Calix E9-2 / E7-2
Primary Test Items
ONU registration
OMCI protocol compatibility
VLAN service validation
DBA bandwidth management
Multicast service verification
Long-term stability testing
7. Multi-Vendor Switch Compatibility Testing
To support diverse networking environments, ONU STICK modules are also validated across a wide range of enterprise switch platforms.
Tested Switch Brands

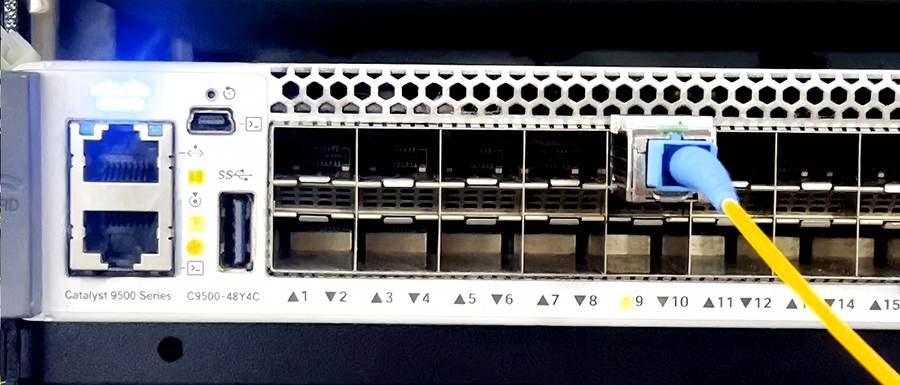

Cisco C9500 / Nexus 9000 / NCS5001 Series

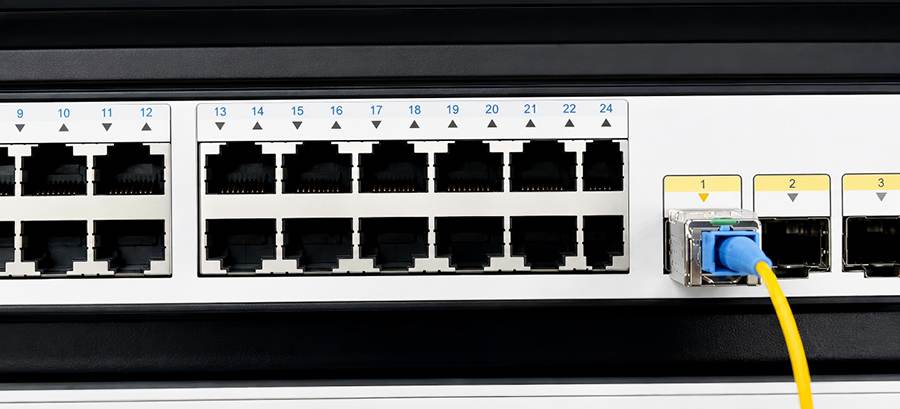

Huawei S5700 / S6700 Series

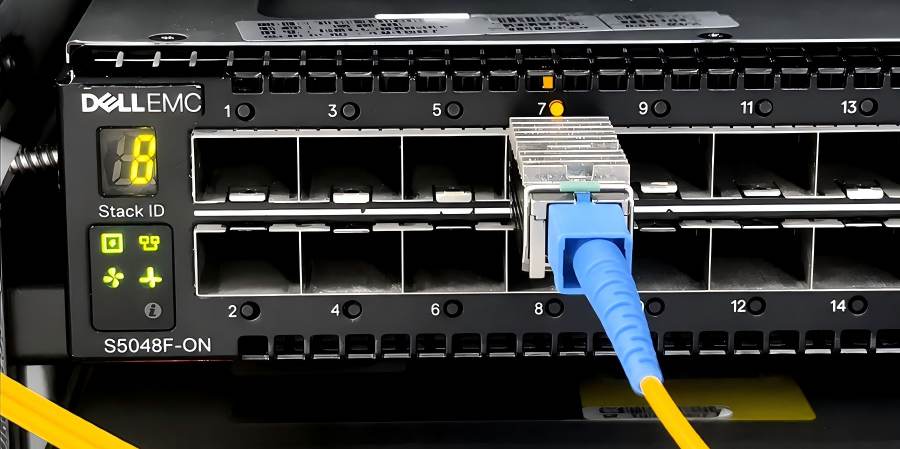

Dell Power Switch Series
Juniper EX4300 / EX5300 Series

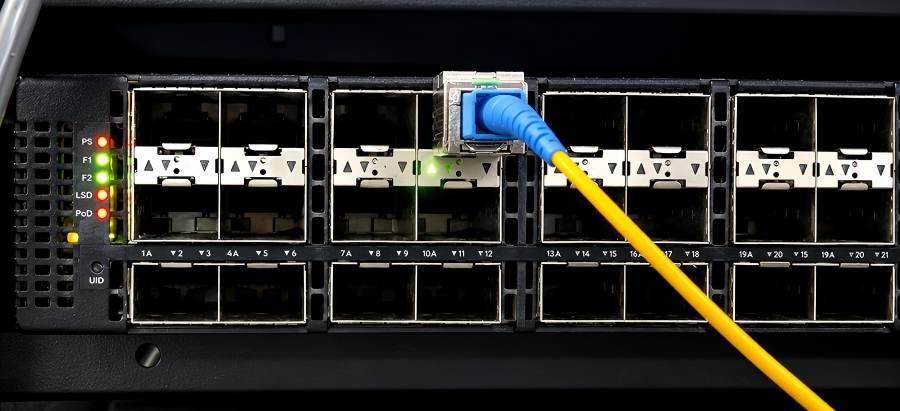

Aruba CX 8300 / CX 6300M Series

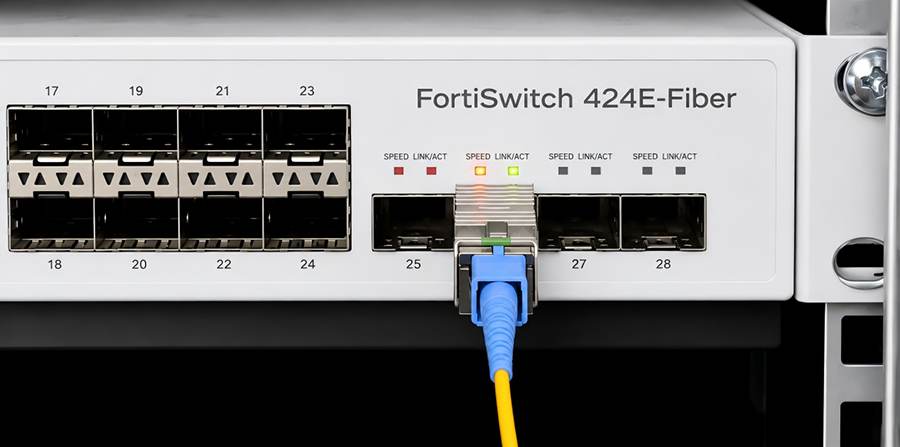

Fortinet 424E-Fiber

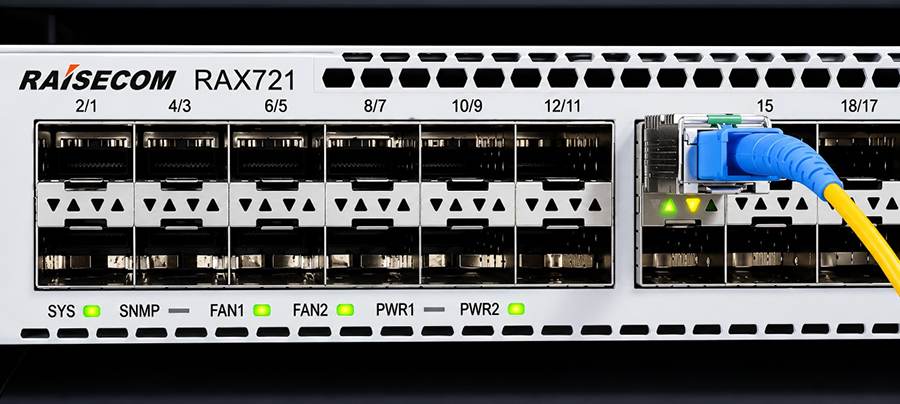

Raisecom RAX721

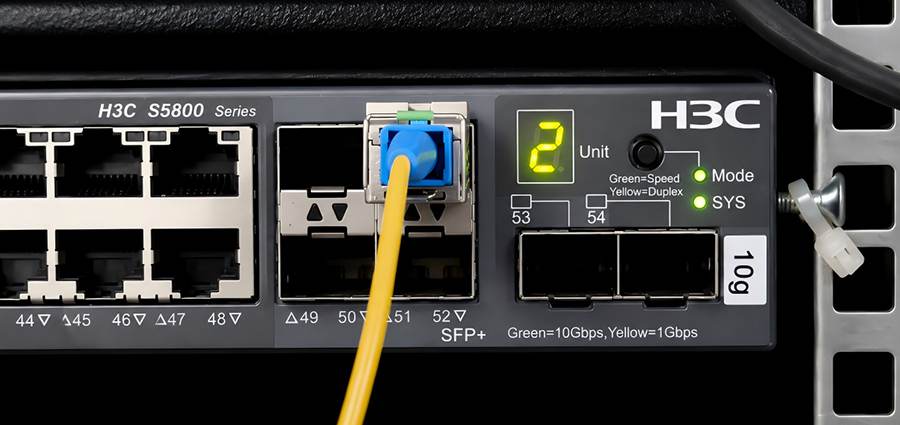

H3C S5800 Series
Nokia 7250 Series

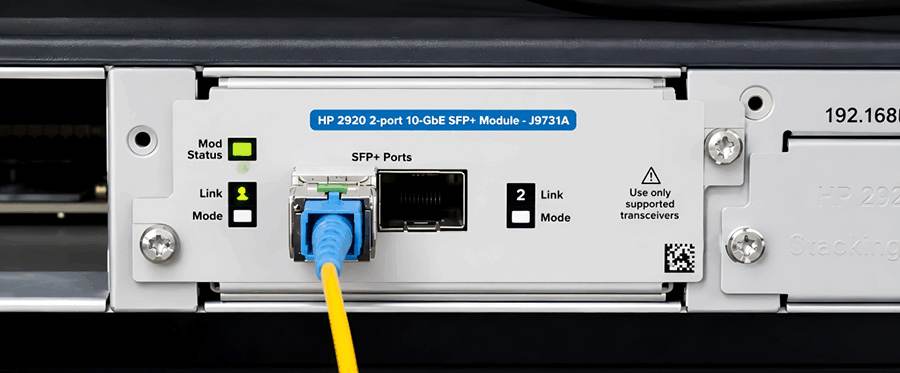

HP Aruba Switches
Test Scope
SFP module recognition
Link establishment
Auto-negotiation
VLAN transparency
Jumbo frame support
QoS policy implementation
Long-term operational stability
8. Core Advantages of ONU STICK
●Compact Design
Standard SFP packaging enables seamless integration into a wide range of network devices.
●Plug-and-Play Deployment
No external ONU equipment is required, significantly simplifying installation.
●Broad Compatibility
Supports mainstream OLT platforms and enterprise switch vendors.
●Lower Total Cost of Ownership (TCO)
Reduces hardware procurement, cabling, deployment, and maintenance expenses.
●Flexible Deployment
Suitable for PCs, CPE devices, wireless APs, IP cameras, switches, industrial gateways, and edge devices.
●Fast Testing and Validation
Ideal for laboratories, telecom operators, and system integrators performing interoperability and compatibility testing.
An ONU STICK is more than just a GPON access module—it is a flexible, efficient, and scalable fiber access solution.
By integrating ONU functionality directly into PCs, CPE devices, wireless access points, IP cameras, switches, and industrial equipment, ONU STICK simplifies traditional PON architectures, reduces deployment costs, and improves network scalability.
Whether deployed in FTTH broadband networks, enterprise infrastructures, wireless backhaul systems, video surveillance applications, industrial internet environments, or multi-vendor interoperability testing scenarios, ONU STICK delivers reliable, high-performance fiber connectivity and serves as a key building block for next-generation all-optical networks.
>
>
>
>
>
>
