800G DAC vs 800G AOC

800G DAC and 800G AOC are both high-speed interconnect solutions designed for modern data centers, AI clusters, and high-density Ethernet networks. Although both can provide 800Gbps connectivity, they use different transmission media and have significant differences in reach, power consumption, cost, flexibility, and deployment scenarios.

As AI clusters continue to increase network bandwidth requirements, understanding the differences between 800G DAC and 800G AOC is important when selecting the right interconnect for switch-to-switch, server-to-switch, and rack-level connections.

1. What Is 800G DAC?

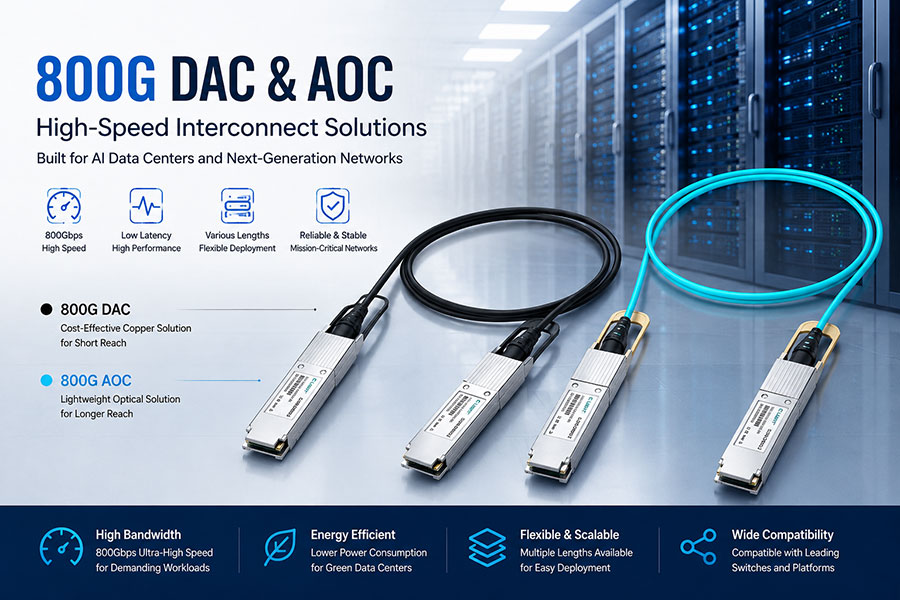

800G DAC QSFP-DD/OSFP112 Cable丨C-LIGHT

800G DAC, or 800G Direct Attach Copper, is a high-speed passive or active copper cable assembly with transceiver-style connectors integrated at both ends. It carries electrical signals directly through copper conductors rather than converting the signal to optical transmission.

Because the optical conversion components are eliminated, 800G DAC can provide a cost-effective solution for very short connections. It is particularly suitable for high-density connections where the connected devices are located within the same rack or in adjacent racks.

2. What Is 800G AOC?

800G AOC QSFP-DD/OSFP Cable丨C-LIGHT

800G AOC, or 800G Active Optical Cable, integrates optical transceivers and optical fiber into a single cable assembly. Electrical signals are converted into optical signals inside the cable ends and transmitted through fiber.

Compared with copper-based DAC, 800G AOC can support longer distances while maintaining a relatively thin and lightweight cable structure. This makes AOC attractive for larger AI and cloud data center deployments where equipment may be separated by several meters or more.

3. 800G DAC vs 800G AOC: Key Differences

4. Transmission Distance

Distance is one of the most important factors when comparing 800G DAC and 800G AOC.

800G DAC is designed for short-distance connections because electrical loss and signal integrity become increasingly challenging as copper cable length increases. It is therefore most suitable when two devices are physically close together.

800G AOC uses optical fiber and can support significantly longer short-reach connections. The exact supported distance depends on the product design, optical components, fiber type, and application requirements.

For a connection that is only a few meters long, DAC can be a practical choice. When the required cable length increases, AOC becomes more attractive because optical transmission provides better reach and lower cable attenuation.

5. Power Consumption

800G DAC does not require optical transmitters and receivers, so passive DAC solutions can achieve very low power consumption. This is an important advantage in high-density AI racks where hundreds or thousands of high-speed links may be deployed.

800G AOC requires electrical-to-optical and optical-to-electrical conversion at the cable ends. As a result, AOC normally consumes more power than passive DAC. However, the additional power can be justified when longer reach, lower cable weight, or improved cabling flexibility is required.

6. Cost Comparison

800G DAC is generally more economical for very short connections because it uses copper conductors and does not require optical transceiver components.

800G AOC has integrated optical engines and fiber, which increases the component cost. However, the higher initial cost can be offset by easier cable management and greater deployment flexibility in larger data center environments.

7. Cable Size and Installation

At 800G speeds, cable density becomes an important consideration. Copper cables generally have larger conductors and can be heavier and less flexible than optical fiber cables.

800G AOC can provide a thinner and lighter interconnect solution, which can simplify cable routing in high-density racks. This is particularly useful in AI data centers where large numbers of high-speed connections are installed around GPU servers and network switches.

8. 800G DAC for AI Data Centers

AI clusters generate large amounts of east-west traffic between GPU servers and network switches. For short connections within a rack, 800G DAC can provide a cost-effective high-bandwidth interconnect.

DAC is especially suitable when low cost, low power consumption, and short physical distance are the primary requirements. However, cable weight and routing can become more challenging as the number of connections increases.

9. 800G AOC for AI Data Centers

800G AOC is well suited to high-density AI and cloud data centers where longer short-reach connections are required. The use of optical fiber reduces cable weight and provides better immunity to electromagnetic interference.

AOC can also simplify high-density cabling between switches, servers, and other network equipment when copper cable length or cable management becomes a limitation.

10. 800G DAC vs AOC: Which One Should You Choose?

The choice depends primarily on distance, power, cost, cable density, and deployment environment.

• Choose 800G DAC when the connection is very short and low cost and low power are the main priorities.

• Choose 800G AOC when longer reach, lower cable weight, and easier high-density cable management are more important.

• Choose optical transceivers when greater flexibility is required, such as using separate fiber patch cables or supporting different transmission distances.

11. 800G DAC vs 800G AOC for Data Center Networks

In a large data center, DAC and AOC do not necessarily compete for the same connections. They can complement each other within the same network architecture.

For example, 800G DAC can be deployed for short rack-level connections, while 800G AOC can be used for connections between racks or across longer cable paths. This mixed approach allows network designers to balance cost, power consumption, reach, and cabling density.

12. 800G AOC and Optical Transceiver Compatibility

800G AOC and 800G optical transceivers both use optical transmission, but they serve different deployment models. An AOC integrates the optical ends and fiber into one fixed cable assembly, while pluggable optical transceivers allow users to select fiber patch cables separately.

For standardized, fixed-length connections, AOC can simplify installation. For networks requiring different fiber lengths, structured cabling, or future reconfiguration, pluggable optics can provide greater flexibility.

13. C-LIGHT 800G Interconnect Solutions

C-LIGHT provides high-speed optical connectivity solutions for data centers, cloud infrastructure, and AI networking applications. Its product portfolio includes high-speed optical transceivers and active optical connectivity solutions designed for high-bandwidth data transmission.

For 800G deployments, the appropriate solution can be selected according to transmission distance, switch and server interfaces, cable architecture, power requirements, and data center density.

14. Frequently Asked Questions

15.Conclusion

800G DAC and 800G AOC are both important interconnect technologies for next-generation data centers and AI networks. 800G DAC offers advantages in cost and power consumption for very short links, while 800G AOC provides greater reach, lower cable weight, and improved flexibility for high-density optical connectivity.

As data center networks move toward 800G and higher bandwidth, selecting between DAC, AOC, and pluggable optical transceivers should be based on the actual distance, port architecture, cable density, power budget, and future expansion requirements.
